Schneider Electric

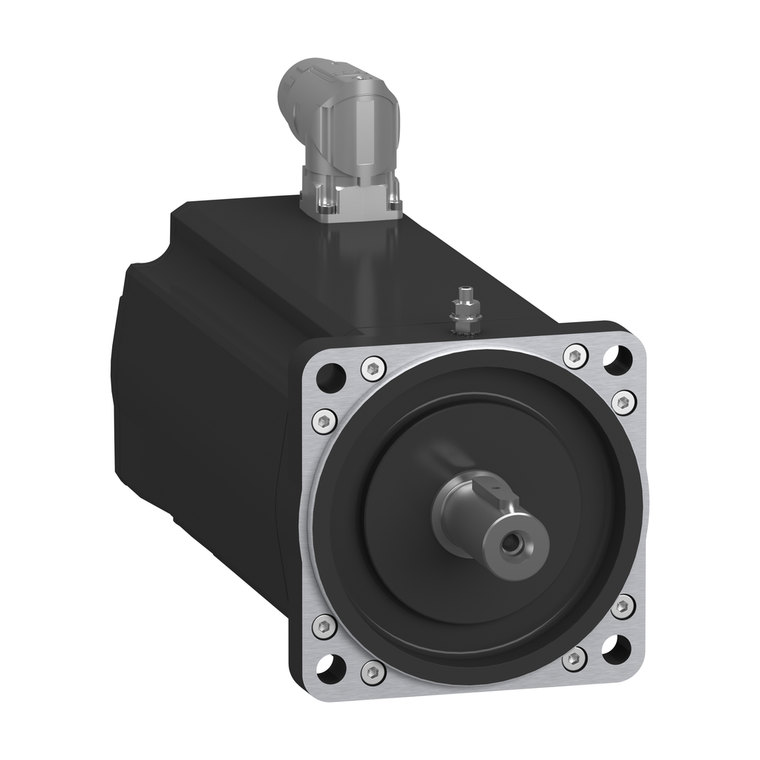

Schneider Electric SH31002P1BA4100 Sh3 Motor 100.2 Key Mlt Omc Ang Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SH31002P1BA4100 Sh3 Motor 100.2 Key Mlt Omc Ang Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH31002P1BA4100

UPC:

3606481804266

MPN:

Condition:

New

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Holes Diameter:

9.0 mm

Maximum Current Irms:

17.1 A

Shaft Diameter:

19 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Peak Stall Torque:

18.3 N.m 115...480 V three phase

Centring Collar Diameter:

95 mm

Rotor Inertia:

2.31 kg.cm²

Type Of Cooling:

natural convection

Circularity Profile:

N/A

Maximum Axial Force Fa:

740 N

Stator Resistance:

2.4 Ohm

Nominal Output Power:

1090 W 230 V single phase || 1930 W 400 V three phase || 1930 W 480 V three phase

Stator Inductance:

13.5 mH

Motor Flange Size:

100 mm

Mounting Support:

international standard flange

Holding Brake:

without

Length:

204.5 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Torque Constant:

1.21 N.m/A 120 °C

Shaft End:

parallel key

Mercury Free:

Yes

Pvc Free:

Yes

Key Width:

6 mm

Maximum Radial Force Fr:

2960 N 2000 rpm || 2580 N 3000 rpm || 3730 N 1000 rpm

Nominal Speed:

2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase

Continuous Stall Current:

4.8 A

Electrical Connection:

rotatable right angled connector

[Us] Rated Supply Voltage:

115...480 V

Phase:

three phase

Maximum Mechanical Speed:

6000 rpm

China Rohs Regulation:

X

Rohs Exemption Information:

Yes

Sustainable Offer Status:

Green Premium product

Nominal Torque:

5.2 N.m 230 V single phase || 4.6 N.m 400 V three phase || 4.4 N.m 480 V three phase

Net Weight:

5.9 kg

Circle Diameter Of The Mounting Holes:

115 mm

Continuous Stall Torque:

5.8 N.m 115...480 V three phase

Device Short Name:

SH3.....P

Speed Feedback Resolution:

262144 points/turn x 4096 turns

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Or Component Type:

servo motor

Back Emf Constant:

77 V/krpm 20 °C

Number Of Mounting Holes:

4

Number Of Motor Poles:

4

Centring Collar Depth:

3.5 mm

Range Compatibility:

PacDrive 3

Continuous Power:

1930 W

Encoder Type:

absolute multiturn Hiperface DSL

Environmental Disclosure:

ENVPEP111049EN

Shaft Length:

40 mm

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
