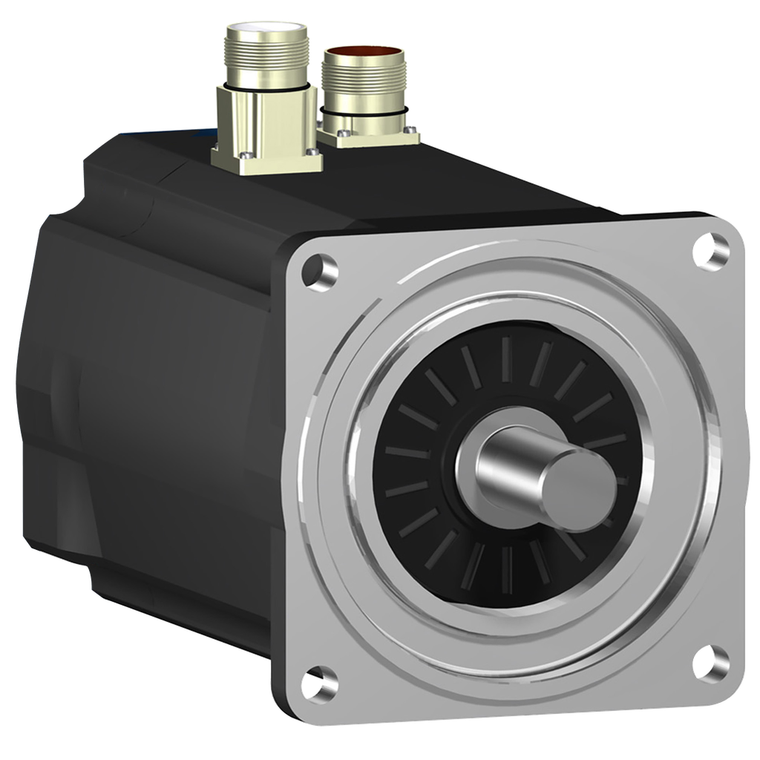

Schneider Electric SH31003P01F1100 Sh3 Motor 100.3 Sgl Brk Str Ip65

SKU:

SH31003P01F1100

UPC:

3606481972569

MPN:

Condition:

New

Net Weight:

8 kg

Stator Inductance:

13.45 mH

Nominal Output Power:

790 W 115 V single phase || 1470 W 230 V single phase || 2390 W 400 V three phase || 2560 W 480 V three phase

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Centring Collar Depth:

3.5 mm

Peak Stall Torque:

28.3 N.m 115...480 V three phase

Sustainable Offer Status:

Green Premium product

Environmental Disclosure:

ENVPEP111049EN

Pvc Free:

Yes

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Type Of Cooling:

natural convection

China Rohs Regulation:

X

Warranty:

18 months

Device Short Name:

SH3.....P

Stator Resistance:

1.43 Ohm

Number Of Motor Poles:

4

Continuous Stall Torque:

8 N.m 115...480 V three phase

Phase:

three phase

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mercury Free:

Yes

Motor Flange Size:

100 mm

Rotor Inertia:

3.838 kg.cm²

Continuous Power:

2400 W

[Us] Rated Supply Voltage:

115...480 V

Product Or Component Type:

servo motor

Circularity Profile:

N/A

Mounting Support:

international standard flange

Rohs Exemption Information:

Yes

Holding Torque:

9 N.m

Centring Collar Diameter:

95 mm

Continuous Stall Current:

6.6 A

Shaft End:

smooth shaft

Shaft Length:

40 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Number Of Mounting Holes:

4

Encoder Type:

absolute single turn SinCos Hiperface

Torque Constant:

1.22 N.m/A 120 °C

Holding Brake:

with

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Mechanical Speed:

6000 rpm

Length:

271.5 mm

Nominal Torque:

5.1 N.m 480 V three phase || 7.5 N.m 115 V single phase || 7 N.m 230 V single phase || 5.7 N.m 400 V three phase

Electrical Connection:

rotatable right angled connector

Mounting Holes Diameter:

9.0 mm

Nominal Speed:

1000 rpm 115 V single phase || 2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase

Maximum Radial Force Fr:

1050 N 1000 rpm || 830 N 2000 rpm || 730 N 3000 rpm || 660 N 4000 rpm

Maximum Current Irms:

28.3 A

Maximum Axial Force Fa:

160 N

Back Emf Constant:

77 V/krpm 20 °C

Range Compatibility:

PacDrive 3

Shaft Diameter:

19 mm

Speed Feedback Resolution:

128 periods

Circle Diameter Of The Mounting Holes:

115 mm
