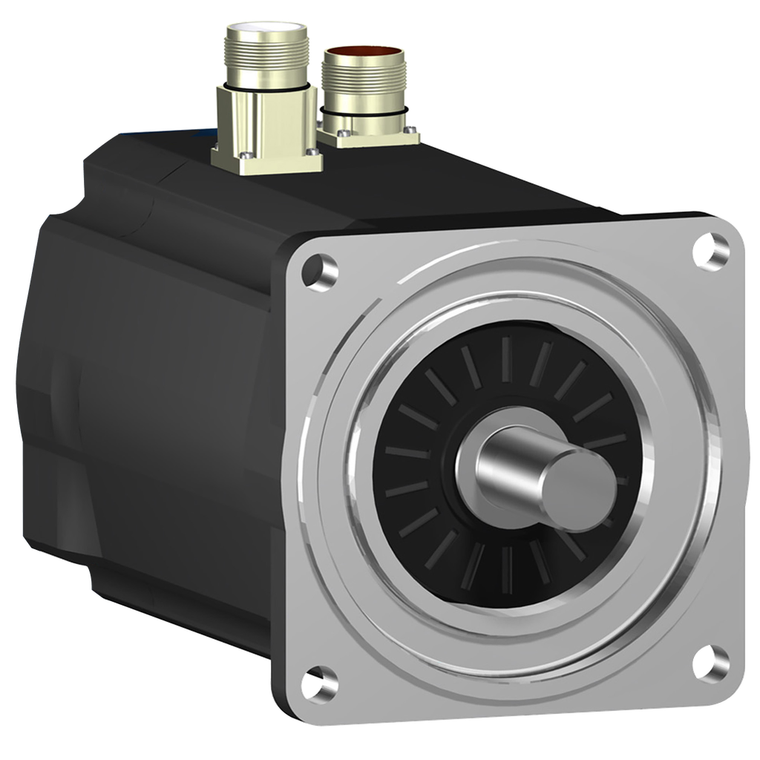

Schneider Electric SH31003P02A1100 Sh3 Motor 100.3 Mlt Str Ip65
SKU:
SH31003P02A1100
UPC:
3606481972590
MPN:
Condition:
New
Electrical Connection:
rotatable right angled connector
Net Weight:
7.5 kg
Centring Collar Diameter:
95 mm
Shaft Diameter:
19 mm
Encoder Type:
absolute multiturn SinCos Hiperface
Maximum Mechanical Speed:
6000 rpm
Back Emf Constant:
77 V/krpm 20 °C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Maximum Axial Force Fa:
160 N
Pvc Free:
Yes
Continuous Stall Torque:
8 N.m 115...480 V three phase
Centring Collar Depth:
3.5 mm
[Us] Rated Supply Voltage:
115...480 V
Device Short Name:
SH3.....P
Product Or Component Type:
servo motor
Continuous Power:
2400 W
Continuous Stall Current:
6.6 A
Speed Feedback Resolution:
128 periods
Environmental Disclosure:
ENVPEP111049EN
Range Compatibility:
PacDrive 3
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nominal Speed:
1000 rpm 115 V single phase || 2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase
Ip Degree Of Protection:
motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
Mounting Holes Diameter:
9.0 mm
Stator Resistance:
1.43 Ohm
Maximum Current Irms:
28.3 A
Peak Stall Torque:
28.3 N.m 115...480 V three phase
Warranty:
18 months
Mercury Free:
Yes
Shaft Length:
40 mm
Stator Inductance:
13.45 mH
Nominal Torque:
5.1 N.m 480 V three phase || 7.5 N.m 115 V single phase || 7 N.m 230 V single phase || 5.7 N.m 400 V three phase
Maximum Radial Force Fr:
1050 N 1000 rpm || 830 N 2000 rpm || 730 N 3000 rpm || 660 N 4000 rpm
Phase:
three phase
Rohs Exemption Information:
Yes
Holding Brake:
without
Motor Flange Size:
100 mm
Circle Diameter Of The Mounting Holes:
115 mm
Length:
240.5 mm
China Rohs Regulation:
X
Circularity Profile:
N/A
Number Of Mounting Holes:
4
Nominal Output Power:
790 W 115 V single phase || 1470 W 230 V single phase || 2390 W 400 V three phase || 2560 W 480 V three phase
Mounting Support:
international standard flange
Rotor Inertia:
3.22 kg.cm²
Shaft End:
smooth shaft
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Type Of Cooling:
natural convection
Torque Constant:
1.22 N.m/A 120 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Lexium SH3 Servo motors are designed to fit Lexium 62 and Lexium 52 servo drives, part of PacDrive 3, an automation solution for motion centric machines. The servo motor features maximum mechanical...
