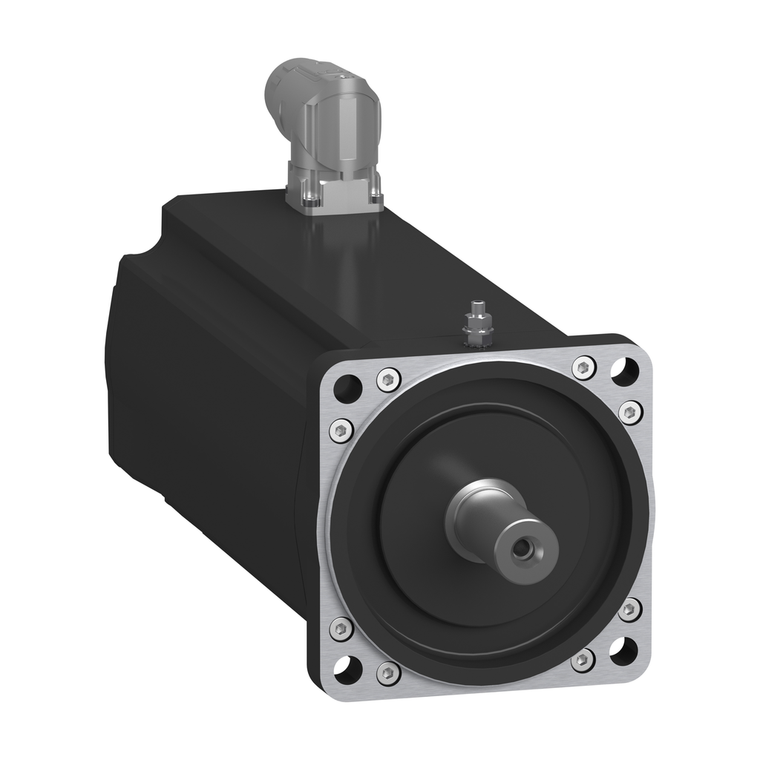

Schneider Electric SH31003P0BA4100 Sh3 Motor 100.3 Mlt Omc Ang Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SH31003P0BA4100 Sh3 Motor 100.3 Mlt Omc Ang Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH31003P0BA4100

UPC:

3606481804426

MPN:

Condition:

New

Range Compatibility:

PacDrive 3

Number Of Mounting Holes:

4

Centring Collar Depth:

3.5 mm

Motor Flange Size:

100 mm

Holding Brake:

without

Net Weight:

7.5 kg

Number Of Motor Poles:

4

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Axial Force Fa:

20 N

Shaft Diameter:

19 mm

Peak Stall Torque:

28.3 N.m 115...480 V three phase

Rotor Inertia:

3.22 kg.cm²

Type Of Cooling:

natural convection

Torque Constant:

1.22 N.m/A 120 °C

Rohs Exemption Information:

Yes

China Rohs Regulation:

X

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mounting Holes Diameter:

9.0 mm

Pvc Free:

Yes

Continuous Power:

2400 W

Sustainable Offer Status:

Green Premium product

[Us] Rated Supply Voltage:

115...480 V

Maximum Current Irms:

28.3 A

Circle Diameter Of The Mounting Holes:

115 mm

Environmental Disclosure:

ENVPEP111049EN

Mounting Support:

international standard flange

Continuous Stall Current:

6.6 A

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Encoder Type:

absolute multiturn Hiperface DSL

Nominal Speed:

2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase

Maximum Mechanical Speed:

6000 rpm

Nominal Torque:

7 N.m 230 V single phase || 5.7 N.m 400 V three phase || 5.1 N.m 480 V three phase

Nominal Output Power:

1470 W 230 V single phase || 2390 W 400 V three phase || 2390 W 480 V three phase

Stator Resistance:

1.43 Ohm

Stator Inductance:

9.4 mH

Circularity Profile:

N/A

Shaft Length:

40 mm

Mercury Free:

Yes

Shaft End:

smooth shaft

Product Or Component Type:

servo motor

Continuous Stall Torque:

8 N.m 115...480 V three phase

Electrical Connection:

rotatable right angled connector

Back Emf Constant:

77 V/krpm 20 °C

Centring Collar Diameter:

95 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Device Short Name:

SH3.....P

Phase:

three phase

Length:

240.5 mm

Speed Feedback Resolution:

262144 points/turn x 4096 turns

Maximum Radial Force Fr:

130 N 1000 rpm || 105 N 2000 rpm || 90 N 3000 rpm

Catalog:

View
