Schneider Electric

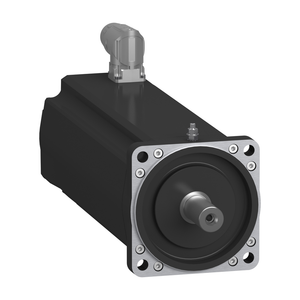

Schneider Electric SH31003P0BF4100 Sh3 Motor 100.3 Mlt Brk Omc Ang Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SH31003P0BF4100 Sh3 Motor 100.3 Mlt Brk Omc Ang Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH31003P0BF4100

UPC:

3606481804464

MPN:

Condition:

New

Stator Inductance:

9.4 mH

Centring Collar Depth:

3.5 mm

Electrical Connection:

straight connector

Mounting Holes Diameter:

9.0 mm

Brake Pull-In Power:

18 W

Range Compatibility:

PacDrive 3

Pvc Free:

Yes

Shaft End:

smooth shaft

Device Short Name:

SH3.....P

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Number Of Mounting Holes:

4

Maximum Axial Force Fa:

20 N

Product Or Component Type:

servo motor

Length:

271.5 mm

Centring Collar Diameter:

95 mm

Peak Stall Torque:

28.3 N.m 115...480 V three phase

Rotor Inertia:

3.838 kg.cm²

Circle Diameter Of The Mounting Holes:

115 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Nominal Torque:

7 N.m 230 V single phase || 5.7 N.m 400 V three phase || 5.1 N.m 480 V three phase

Nominal Output Power:

1470 W 230 V single phase || 2390 W 400 V three phase || 2390 W 480 V three phase

Maximum Current Irms:

28.3 A

Rohs Exemption Information:

Yes

Mounting Support:

international standard flange

Mercury Free:

Yes

Torque Constant:

1.22 N.m/A 120 °C

Continuous Power:

2400 W

Holding Torque:

9 N.m

Motor Flange Size:

100 mm

Circularity Profile:

N/A

Type Of Cooling:

natural convection

Shaft Diameter:

19 mm

Environmental Disclosure:

ENVPEP111049EN

Net Weight:

8.2 kg

Phase:

three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Radial Force Fr:

90 N 3000 rpm || 130 N 1000 rpm || 105 N 2000 rpm

Stator Resistance:

1.43 Ohm

Shaft Length:

40 mm

Sustainable Offer Status:

Green Premium product

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Holding Brake:

with

Speed Feedback Resolution:

262144 points/turn x 4096 turns

Continuous Stall Torque:

8 N.m 115...480 V three phase

Nominal Speed:

2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase

[Us] Rated Supply Voltage:

115...480 V

Encoder Type:

absolute multiturn Hiperface DSL

Maximum Mechanical Speed:

6000 rpm

Back Emf Constant:

77 V/krpm 20 °C

Number Of Motor Poles:

4

China Rohs Regulation:

X

Continuous Stall Current:

6.6 A
