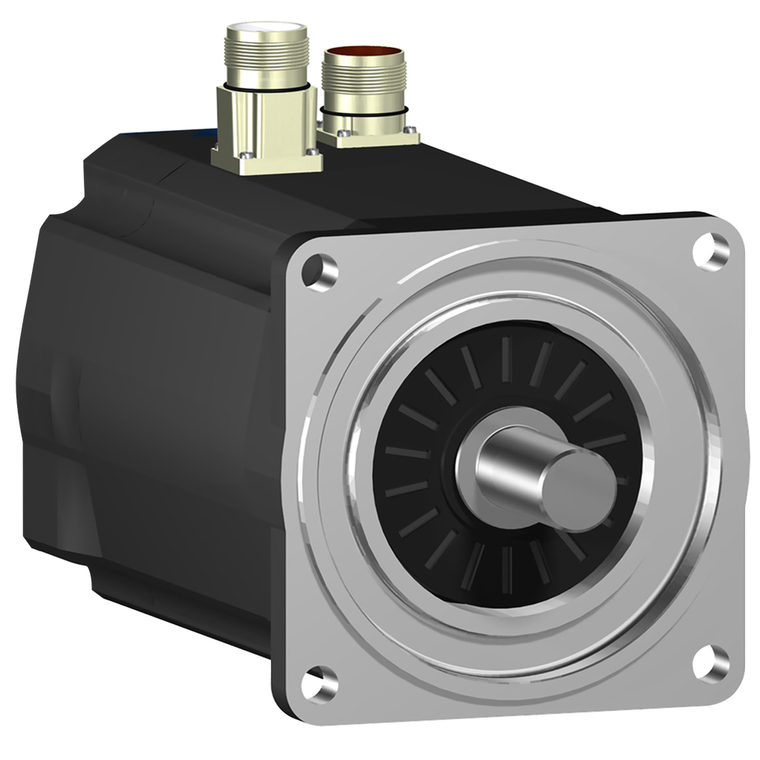

Schneider Electric SH31003P12F1000 Sh3 Motor 100.3 Key Mlt Brk Str Ip54

SKU:

SH31003P12F1000

UPC:

3606485297149

MPN:

Condition:

New

Nominal Speed:

1000 rpm 115 V single phase || 2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase

Maximum Axial Force Fa:

160 N

Number Of Mounting Holes:

4

Motor Flange Size:

100 mm

Peak Stall Torque:

28.3 N.m 115...480 V three phase

Back Emf Constant:

77 V/krpm 20 °C

Environmental Disclosure:

ENVPEP111049EN

Phase:

three phase

Warranty:

18 months

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nominal Output Power:

790 W 115 V single phase || 1470 W 230 V single phase || 2390 W 400 V three phase || 2560 W 480 V three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Continuous Power:

2400 W

Stator Inductance:

13.45 mH

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Electrical Connection:

rotatable right angled connector

Shaft Diameter:

19 mm

China Rohs Regulation:

X

Continuous Stall Current:

6.6 A

Maximum Current Irms:

28.3 A

Speed Feedback Resolution:

128 periods

Product Or Component Type:

servo motor

Circularity Profile:

N/A

Shaft End:

parallel key

Mounting Holes Diameter:

9.0 mm

Circle Diameter Of The Mounting Holes:

115 mm

Sustainable Offer Status:

Green Premium product

Key Width:

6 mm

Stator Resistance:

1.43 Ohm

Maximum Radial Force Fr:

1050 N 1000 rpm || 830 N 2000 rpm || 730 N 3000 rpm || 660 N 4000 rpm

Mercury Free:

Yes

Mounting Support:

international standard flange

Range Compatibility:

PacDrive 3

Net Weight:

8 kg

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Type Of Cooling:

natural convection

Pvc Free:

Yes

Nominal Torque:

5.1 N.m 480 V three phase || 7.5 N.m 115 V single phase || 7 N.m 230 V single phase || 5.7 N.m 400 V three phase

Number Of Motor Poles:

4

[Us] Rated Supply Voltage:

115...480 V

Centring Collar Diameter:

95 mm

Encoder Type:

absolute multiturn SinCos Hiperface

Device Short Name:

SH3.....P

Rohs Exemption Information:

Yes

Length:

271.5 mm

Centring Collar Depth:

3.5 mm

Holding Torque:

9 N.m

Shaft Length:

40 mm

Rotor Inertia:

3.838 kg.cm²

Torque Constant:

1.22 N.m/A 120 °C

Continuous Stall Torque:

8 N.m 115...480 V three phase

Holding Brake:

with

Ip Degree Of Protection:

shaft bushing without shaft seal ring IP54 EN/IEC 60034-5 || motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Maximum Mechanical Speed:

6000 rpm

Catalog:

View

Datasheet:

View
