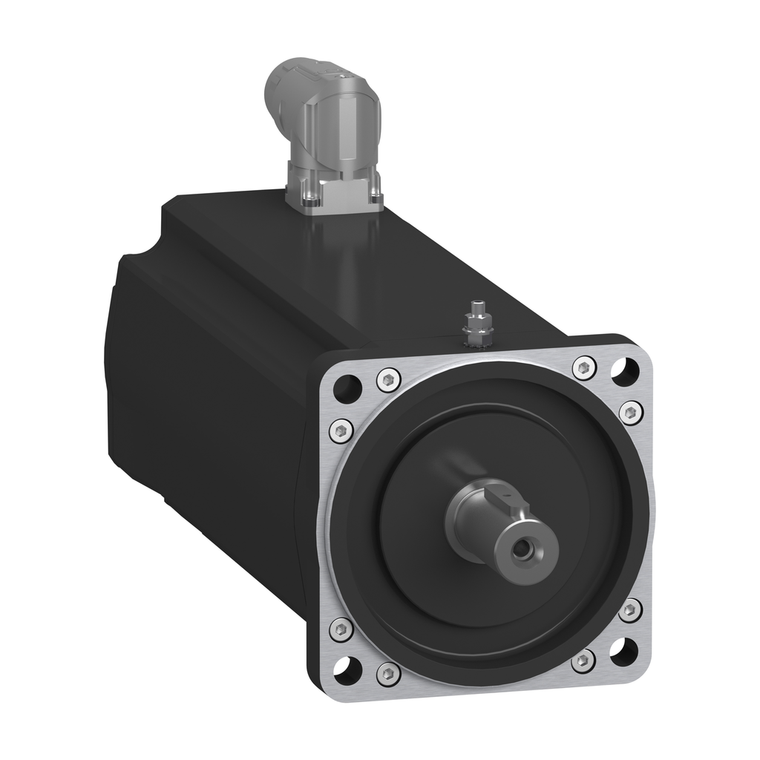

Schneider Electric SH31003P1AA4100 Sh3 Motor 100.3 Key Sgl Omc Ang Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SH31003P1AA4100 Sh3 Motor 100.3 Key Sgl Omc Ang Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH31003P1AA4100

UPC:

3606481804501

MPN:

Condition:

New

Continuous Power:

2400 W

Stator Inductance:

9.4 mH

Holding Brake:

without

Nominal Torque:

7 N.m 230 V single phase || 5.7 N.m 400 V three phase || 5.1 N.m 480 V three phase

Net Weight:

7.5 kg

Range Compatibility:

PacDrive 3

Rotor Inertia:

3.22 kg.cm²

Length:

240.5 mm

Back Emf Constant:

77 V/krpm 20 °C

Rohs Exemption Information:

Yes

Stator Resistance:

1.43 Ohm

Electrical Connection:

straight connector

Shaft Length:

40 mm

Key Width:

6 mm

Centring Collar Depth:

3.5 mm

Circle Diameter Of The Mounting Holes:

115 mm

Mercury Free:

Yes

Device Short Name:

SH3.....P

Peak Stall Torque:

28.3 N.m 115...480 V three phase

Mounting Support:

international standard flange

Maximum Radial Force Fr:

4200 N 1000 rpm || 3330 N 2000 rpm || 2910 N 3000 rpm

[Us] Rated Supply Voltage:

115...480 V

Number Of Mounting Holes:

4

Continuous Stall Torque:

8 N.m 115...480 V three phase

Shaft End:

parallel key

Shaft Diameter:

19 mm

Type Of Cooling:

natural convection

Encoder Type:

absolute single turn Hiperface DSL

Speed Feedback Resolution:

262144 points/turn

Maximum Axial Force Fa:

740 N

Phase:

three phase

Motor Flange Size:

100 mm

Number Of Motor Poles:

4

Nominal Speed:

2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase

Circularity Profile:

N/A

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Continuous Stall Current:

6.6 A

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mounting Holes Diameter:

9.0 mm

Sustainable Offer Status:

Green Premium product

Centring Collar Diameter:

95 mm

Torque Constant:

1.22 N.m/A 120 °C

Product Or Component Type:

servo motor

China Rohs Regulation:

X

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Pvc Free:

Yes

Maximum Mechanical Speed:

6000 rpm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Current Irms:

28.3 A

Environmental Disclosure:

ENVPEP111049EN

Nominal Output Power:

1470 W 230 V single phase || 2390 W 400 V three phase || 2390 W 480 V three phase
