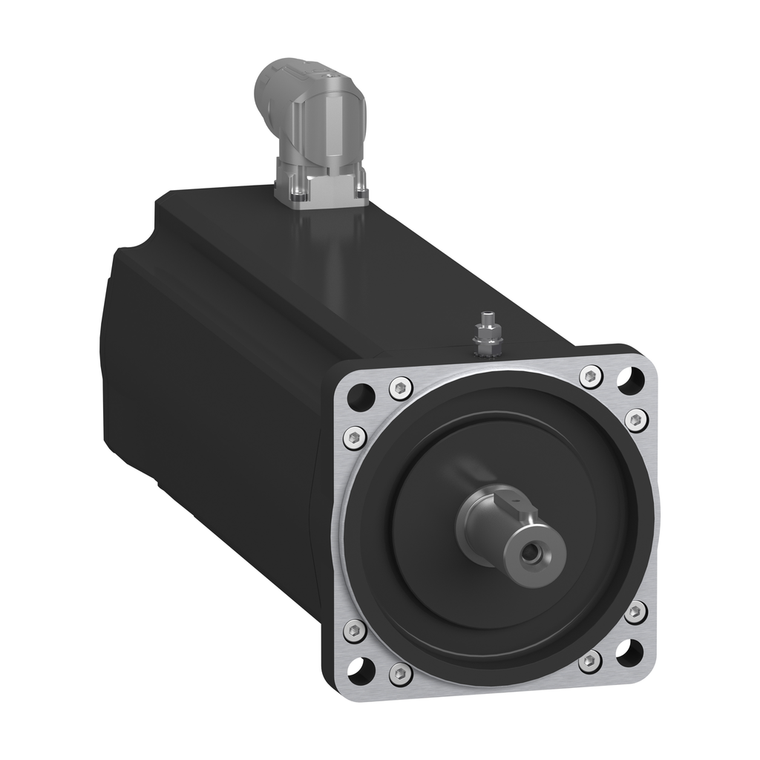

Schneider Electric SH31003P1AF4000 Sh3 Motor 100.3 Key Sgl Brk Omc Ang Ip54

Schneider Electric SH31003P1AF4000 Sh3 Motor 100.3 Key Sgl Brk Omc Ang Ip54

Schneider Electric
SKU:
SH31003P1AF4000
|
UPC:
3606481804532
$2,867.50
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Lexium SH3 Servo motors are designed to fit Lexium 62 and Lexium 52 servo drives, part of PacDrive 3, an automation solution for motion centric machines. The servo motor features maximum mechanical speed of 6000RPM and keyed shaft end with holding brake. It is equipped with an absolute single turn Hiperface (DSL 18bit, EKS36) encoder. It figures as single angular turntable connector (One motor cable connectivity) for connecting a hybrid cable (DSL cable with quick lock connector). It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 7.8A and a continuous power of 2900W. Shaft end is an IP54 rated, casing is an IP65 rated. The flange size is 70mm, it is fixed by 4x 9mm holes. The circle diameter of the mounting holes is 115mm. it weighs 8.2kg. SH3 servo motors with Lexium 62 multi axis servo drives meet the requirements of production and packaging machinery, material handling and assembly systems. Lexium SH3 servo motors are UL UR and conform to UL1004 as well as European directives CE and UKCA. This SH3 servo motor figuring One-Motor Cable connectivity is compatible with a Lexium 62 servo drive. All mounting positions are permitted (horizontal mounting (IMB5), vertical mounting (IMV1, IMV3) in accordance with IEC 60034-7. Lexium SH3 motors are prime solution to the need for dynamic performance, covering a continuous stall torque range (0.2 to 94.4Nm) for speeds up to 9000 rpm. Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions.
Additional Information
Device Short Name:
SH3.....P
Stator Inductance:
9.4 mH
Length:
271.5 mm
Holding Torque:
9 N.m
Speed Feedback Resolution:
262144 points/turn
Nominal Speed:
2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase
Sustainable Offer Status:
Green Premium product
Maximum Current Irms:
28.3 A
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Axial Force Fa:
740 N
Continuous Stall Current:
6.6 A
Rohs Exemption Information:
Yes
Peak Stall Torque:
28.3 N.m 115...480 V three phase
Phase:
three phase
Nominal Torque:
7 N.m 230 V single phase || 5.7 N.m 400 V three phase || 5.1 N.m 480 V three phase
Mercury Free:
Yes
Stator Resistance:
1.43 Ohm
Holding Brake:
with
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Torque Constant:
1.22 N.m/A 120 °C
Electrical Connection:
rotatable right angled connector
Shaft End:
parallel key
Number Of Mounting Holes:
4
Mounting Holes Diameter:
9.0 mm
Maximum Mechanical Speed:
6000 rpm
Centring Collar Diameter:
95 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Continuous Stall Torque:
8 N.m 115...480 V three phase
[Us] Rated Supply Voltage:
115...480 V
Shaft Diameter:
19 mm
Number Of Motor Poles:
4
Circle Diameter Of The Mounting Holes:
115 mm
Product Or Component Type:
servo motor
China Rohs Regulation:
X
Back Emf Constant:
77 V/krpm 20 °C
Circularity Profile:
N/A
Rotor Inertia:
3.838 kg.cm²
Type Of Cooling:
natural convection
Continuous Power:
2400 W
Encoder Type:
absolute single turn Hiperface DSL
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Motor Flange Size:
100 mm
Maximum Radial Force Fr:
3330 N 2000 rpm || 2910 N 3000 rpm || 4200 N 1000 rpm
Range Compatibility:
PacDrive 3
Environmental Disclosure:
ENVPEP111049EN
Nominal Output Power:
1470 W 230 V single phase || 2390 W 400 V three phase || 2390 W 480 V three phase
Ip Degree Of Protection:
motor IP65 EN/IEC 60034-5 || shaft bushing without shaft seal ring IP54 EN/IEC 60034-5
Net Weight:
8.2 kg
Brake Pull-In Power:
18 W
Mounting Support:
international standard flange
Pvc Free:
Yes
Key Width:
6 mm
Centring Collar Depth:
3.5 mm
Shaft Length:
40 mm
Catalog:
View
Datasheet:
View
