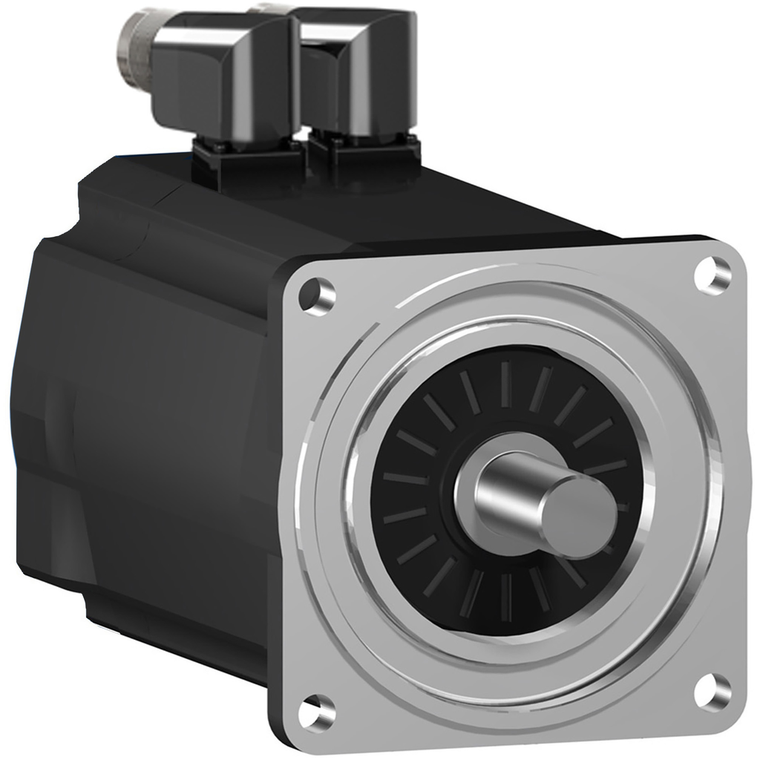

Schneider Electric SH31004P01A2000 Sh3 Motor 100.4 Sgl Ang Ip54

(No reviews yet) Write a Review

Write a Review

Schneider Electric SH31004P01A2000 Sh3 Motor 100.4 Sgl Ang Ip54

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH31004P01A2000

UPC:

3606485297194

MPN:

Condition:

New

Range Compatibility:

PacDrive 3

Shaft End:

smooth shaft

Ip Degree Of Protection:

shaft bushing without shaft seal ring IP54 IEC 60034-5 || motor IP65 IEC 60034-5 || shaft bushing IP65 IEC 60034-5

Environmental Disclosure:

ENVPEP111049EN

Peak Stall Torque:

40.5 N.m 115...480 V three phase

Nominal Speed:

750 rpm 115 V single phase || 1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase

China Rohs Regulation:

X

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Nominal Output Power:

780 W 115 V single phase || 1490 W 230 V single phase || 2480 W 400 V three phase || 2600 W 480 V three phase

Circle Diameter Of The Mounting Holes:

115 mm

Maximum Mechanical Speed:

6000 rpm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mounting Holes Diameter:

9.0 mm

Stator Inductance:

18.35 mH

Type Of Cooling:

natural convection

Mounting Support:

international standard flange

Continuous Power:

2500 W

Net Weight:

9.2 kg

Rohs Exemption Information:

Yes

Motor Flange Size:

100 mm

Stator Resistance:

1.81 Ohm

Electrical Connection:

straight connector

Centring Collar Depth:

3.5 mm

[Us] Rated Supply Voltage:

115...480 V

Circularity Profile:

N/A

Speed Feedback Resolution:

128 periods

Maximum Axial Force Fa:

160 N

Rotor Inertia:

4.22 kg.cm²

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Continuous Stall Torque:

10 N.m 115...480 V three phase

Number Of Motor Poles:

4

Nominal Torque:

9.9 N.m 115 V single phase || 9.5 N.m 230 V single phase || 7.9 N.m 400 V three phase || 6.9 N.m 480 V three phase

Maximum Current Irms:

32.3 A

Warranty:

18 months

Mercury Free:

Yes

Shaft Diameter:

24 mm

Torque Constant:

1.62 N.m/A 120 °C

Product Or Component Type:

servo motor

Length:

276.5 mm

Back Emf Constant:

103 V/krpm 20 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Pvc Free:

Yes

Continuous Stall Current:

6.2 A

Holding Brake:

without

Centring Collar Diameter:

95 mm

Shaft Length:

50 mm

Phase:

three phase

Number Of Mounting Holes:

4

Device Short Name:

SH3.....P

Maximum Radial Force Fr:

1070 N 1000 rpm || 850 N 2000 rpm || 740 N 3000 rpm

Encoder Type:

absolute single turn SinCos Hiperface

Sustainable Offer Status:

Green Premium product
