Schneider Electric

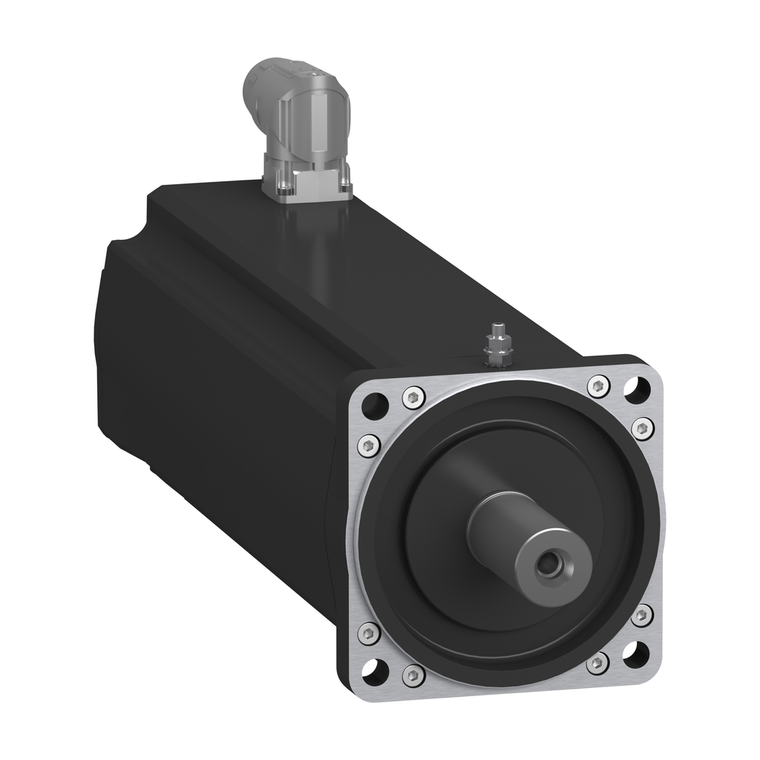

Schneider Electric SH31004P0BF4000 Sh3 Motor 100.4 Mlt Brk Omc Ang Ip54

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SH31004P0BF4000 Sh3 Motor 100.4 Mlt Brk Omc Ang Ip54

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH31004P0BF4000

UPC:

3606481804778

MPN:

Condition:

New

Net Weight:

9.8 kg

Shaft Length:

50 mm

Holding Torque:

12 N.m

Rohs Exemption Information:

Yes

[Us] Rated Supply Voltage:

115...480 V

Stator Resistance:

1.8 Ohm

Circularity Profile:

N/A

Sustainable Offer Status:

Green Premium product

Encoder Type:

absolute multiturn Hiperface DSL

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing without shaft seal ring IP54 EN/IEC 60034-5

Holding Brake:

with

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Radial Force Fr:

100 N 3000 rpm || 145 N 1000 rpm || 115 N 2000 rpm

Continuous Stall Torque:

10 N.m 115...480 V three phase

Maximum Current Irms:

32.3 A

Range Compatibility:

PacDrive 3

Pvc Free:

Yes

Peak Stall Torque:

40.5 N.m 115...480 V three phase

Electrical Connection:

straight connector

Brake Pull-In Power:

18 W

Back Emf Constant:

103 V/krpm 20 °C

Continuous Stall Current:

6.2 A

Product Or Component Type:

servo motor

Continuous Power:

2500 W

Mercury Free:

Yes

Nominal Speed:

1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase

Phase:

three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Type Of Cooling:

natural convection

Maximum Mechanical Speed:

6000 rpm

Maximum Axial Force Fa:

20 N

Centring Collar Diameter:

95 mm

Number Of Mounting Holes:

4

Length:

307.5 mm

Nominal Torque:

9.5 N.m 230 V single phase || 7.9 N.m 400 V three phase || 6.9 N.m 480 V three phase

Rotor Inertia:

5.245 kg.cm²

China Rohs Regulation:

X

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Torque Constant:

1.62 N.m/A 120 °C

Centring Collar Depth:

3.5 mm

Nominal Output Power:

1490 W 230 V single phase || 2480 W 400 V three phase || 2480 W 480 V three phase

Circle Diameter Of The Mounting Holes:

115 mm

Speed Feedback Resolution:

262144 points/turn x 4096 turns

Motor Flange Size:

100 mm

Device Short Name:

SH3.....P

Environmental Disclosure:

ENVPEP111049EN

Shaft Diameter:

24 mm

Mounting Holes Diameter:

9.0 mm

Number Of Motor Poles:

4

Stator Inductance:

13 mH

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Shaft End:

smooth shaft

Mounting Support:

international standard flange

Catalog:

View

Datasheet:

View
