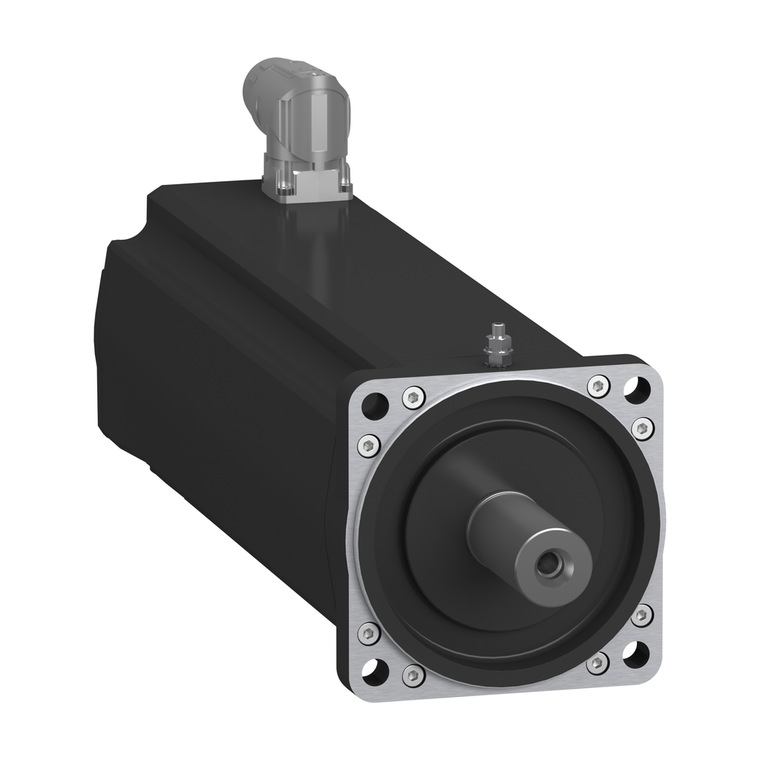

Schneider Electric SH31004P0BF4100 Sh3 Motor 100.4 Mlt Brk Omc Ang Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric SH31004P0BF4100 Sh3 Motor 100.4 Mlt Brk Omc Ang Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH31004P0BF4100

UPC:

3606481804785

MPN:

Condition:

New

Centring Collar Depth:

3.5 mm

Type Of Cooling:

natural convection

Motor Flange Size:

100 mm

Continuous Stall Torque:

10 N.m 115...480 V three phase

Mercury Free:

Yes

China Rohs Regulation:

X

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Stator Resistance:

1.8 Ohm

Stator Inductance:

13 mH

Encoder Type:

absolute multiturn Hiperface DSL

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Range Compatibility:

PacDrive 3

Rotor Inertia:

5.245 kg.cm²

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Length:

307.5 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Pvc Free:

Yes

Brake Pull-In Power:

18 W

Phase:

three phase

Torque Constant:

1.62 N.m/A 120 °C

Maximum Current Irms:

32.3 A

Continuous Stall Current:

6.2 A

Product Or Component Type:

servo motor

Rohs Exemption Information:

Yes

Speed Feedback Resolution:

262144 points/turn x 4096 turns

Nominal Output Power:

1490 W 230 V single phase || 2480 W 400 V three phase || 2480 W 480 V three phase

Holding Brake:

with

Number Of Mounting Holes:

4

Sustainable Offer Status:

Green Premium product

Shaft Length:

50 mm

Mounting Support:

international standard flange

Electrical Connection:

rotatable right angled connector

Circle Diameter Of The Mounting Holes:

115 mm

Nominal Speed:

1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase

Shaft Diameter:

24 mm

[Us] Rated Supply Voltage:

115...480 V

Environmental Disclosure:

ENVPEP111049EN

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Mechanical Speed:

6000 rpm

Circularity Profile:

N/A

Back Emf Constant:

103 V/krpm 20 °C

Holding Torque:

12 N.m

Mounting Holes Diameter:

9.0 mm

Centring Collar Diameter:

95 mm

Continuous Power:

2500 W

Net Weight:

9.8 kg

Number Of Motor Poles:

4

Shaft End:

smooth shaft

Nominal Torque:

9.5 N.m 230 V single phase || 7.9 N.m 400 V three phase || 6.9 N.m 480 V three phase

Device Short Name:

SH3.....P

Peak Stall Torque:

40.5 N.m 115...480 V three phase
