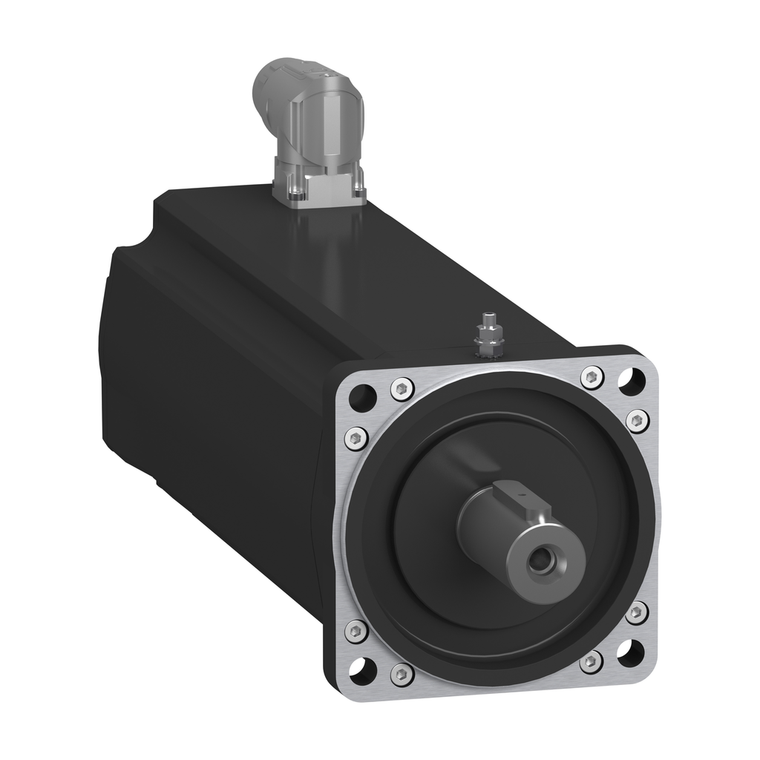

Schneider Electric SH31004P1AA4100 Sh3 Motor 100.4 Key Sgl Omc Ang Ip65

Schneider Electric SH31004P1AA4100 Sh3 Motor 100.4 Key Sgl Omc Ang Ip65

Schneider Electric
SKU:
SH31004P1AA4100
|
UPC:
3606481804822
$2,773.75
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Lexium SH3 Servo motors are designed to fit Lexium 62 and Lexium 52 servo drives, part of PacDrive 3, an automation solution for motion centric machines. The servo motor features maximum mechanical speed of 6000RPM and keyed shaft end without holding brake. It is equipped with an absolute single turn Hiperface (DSL 18bit, EKS36) encoder. It figures as single angular turntable connector (One motor cable connectivity) for connecting a hybrid cable (DSL cable with quick lock connector). It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 7.8A and a continuous power of 2900W. Shaft end and casing are IP65 rated. The flange size is 70mm, it is fixed by 4x 9mm holes. The circle diameter of the mounting holes is 115mm. it weighs 9.1kg. SH3 servo motors with Lexium 62 multi axis servo drives meet the requirements of production and packaging machinery, material handling and assembly systems. Lexium SH3 servo motors are UL UR and conform to UL1004 as well as European directives CE and UKCA. This SH3 servo motor figuring One-Motor Cable connectivity is compatible with a Lexium 62 servo drive. All mounting positions are permitted (horizontal mounting (IMB5), vertical mounting (IMV1, IMV3) in accordance with IEC 60034-7. Lexium SH3 motors are prime solution to the need for dynamic performance, covering a continuous stall torque range (0.2 to 94.4Nm) for speeds up to 9000 rpm. Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions.
Additional Information
Maximum Radial Force Fr:
115 N 2000 rpm || 100 N 3000 rpm || 145 N 1000 rpm
Continuous Stall Current:
6.2 A
Key Width:
8 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Holes Diameter:
9.0 mm
Sustainable Offer Status:
Green Premium product
Nominal Torque:
9.5 N.m 230 V single phase || 7.9 N.m 400 V three phase || 6.9 N.m 480 V three phase
Encoder Type:
absolute single turn Hiperface DSL
[Us] Rated Supply Voltage:
115...480 V
Shaft Length:
50 mm
Maximum Current Irms:
32.3 A
Back Emf Constant:
103 V/krpm 20 °C
Environmental Disclosure:
ENVPEP111049EN
Stator Inductance:
13 mH
Type Of Cooling:
natural convection
Centring Collar Diameter:
95 mm
Maximum Axial Force Fa:
20 N
Nominal Speed:
1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase
Circularity Profile:
N/A
Continuous Stall Torque:
10 N.m 115...480 V three phase
Phase:
three phase
Nominal Output Power:
1490 W 230 V single phase || 2480 W 400 V three phase || 2480 W 480 V three phase
Net Weight:
9.1 kg
Centring Collar Depth:
3.5 mm
Stator Resistance:
1.8 Ohm
Speed Feedback Resolution:
262144 points/turn
Motor Flange Size:
100 mm
Maximum Mechanical Speed:
6000 rpm
Number Of Motor Poles:
4
Holding Brake:
without
Circle Diameter Of The Mounting Holes:
115 mm
Product Or Component Type:
servo motor
Length:
276.5 mm
Pvc Free:
Yes
Electrical Connection:
rotatable right angled connector
Torque Constant:
1.62 N.m/A 120 °C
China Rohs Regulation:
X
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Device Short Name:
SH3.....P
Shaft End:
parallel key
Ip Degree Of Protection:
motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
Range Compatibility:
PacDrive 3
Mounting Support:
international standard flange
Rotor Inertia:
4.22 kg.cm²
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Continuous Power:
2500 W
Shaft Diameter:
24 mm
Peak Stall Torque:
40.5 N.m 115...480 V three phase
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Number Of Mounting Holes:
4
Catalog:
View
Datasheet:
View
