Schneider Electric SH31004P1AF4000 Sh3 Motor 100.4 Key Sgl Brk Omc Ang Ip54

(No reviews yet) Write a Review

Write a Review

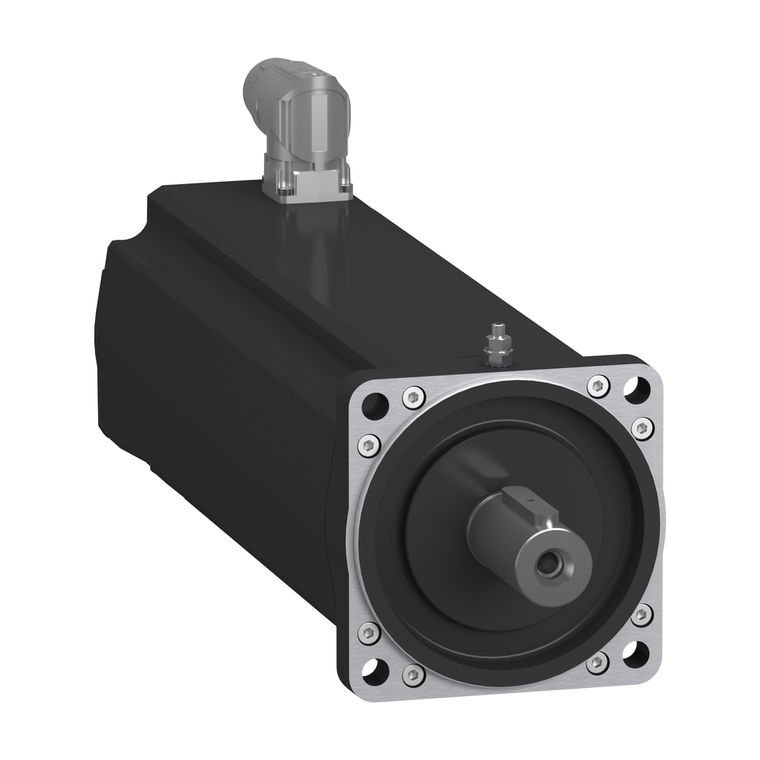

Schneider Electric SH31004P1AF4000 Sh3 Motor 100.4 Key Sgl Brk Omc Ang Ip54

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH31004P1AF4000

UPC:

3606481804853

MPN:

Condition:

New

Speed Feedback Resolution:

262144 points/turn

Stator Resistance:

1.8 Ohm

Length:

307.5 mm

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing without shaft seal ring IP54 EN/IEC 60034-5

Continuous Power:

2500 W

Shaft End:

parallel key

Circularity Profile:

N/A

Sustainable Offer Status:

Green Premium product

Pvc Free:

Yes

Continuous Stall Torque:

10 N.m 115...480 V three phase

Maximum Radial Force Fr:

90 N 3000 rpm || 130 N 1000 rpm || 105 N 2000 rpm

Maximum Current Irms:

32.3 A

Maximum Axial Force Fa:

20 N

China Rohs Regulation:

X

Range Compatibility:

PacDrive 3

Maximum Mechanical Speed:

6000 rpm

Net Weight:

9.8 kg

Continuous Stall Current:

6.2 A

Back Emf Constant:

103 V/krpm 20 °C

Nominal Speed:

1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase

Type Of Cooling:

natural convection

Number Of Mounting Holes:

4

Mounting Holes Diameter:

9.0 mm

Holding Brake:

with

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Rotor Inertia:

5.245 kg.cm²

Brake Pull-In Power:

18 W

Key Width:

8 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nominal Torque:

9.5 N.m 230 V single phase || 7.9 N.m 400 V three phase || 6.9 N.m 480 V three phase

Motor Flange Size:

100 mm

Number Of Motor Poles:

4

Centring Collar Depth:

3.5 mm

Holding Torque:

12 N.m

Environmental Disclosure:

ENVPEP111049EN

Centring Collar Diameter:

95 mm

Shaft Diameter:

24 mm

Phase:

three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Or Component Type:

servo motor

Stator Inductance:

13 mH

Nominal Output Power:

1490 W 230 V single phase || 2480 W 400 V three phase || 2480 W 480 V three phase

Encoder Type:

absolute single turn Hiperface DSL

Device Short Name:

SH3.....P

Shaft Length:

50 mm

Circle Diameter Of The Mounting Holes:

115 mm

Rohs Exemption Information:

Yes

Mounting Support:

international standard flange

Peak Stall Torque:

40.5 N.m 115...480 V three phase

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Us] Rated Supply Voltage:

115...480 V

Torque Constant:

1.62 N.m/A 120 °C

Mercury Free:

Yes

Electrical Connection:

rotatable right angled connector
