Schneider Electric SH31004P1AF4100 Sh3 Motor 100.4 Key Sgl Brk Omc Ang Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric

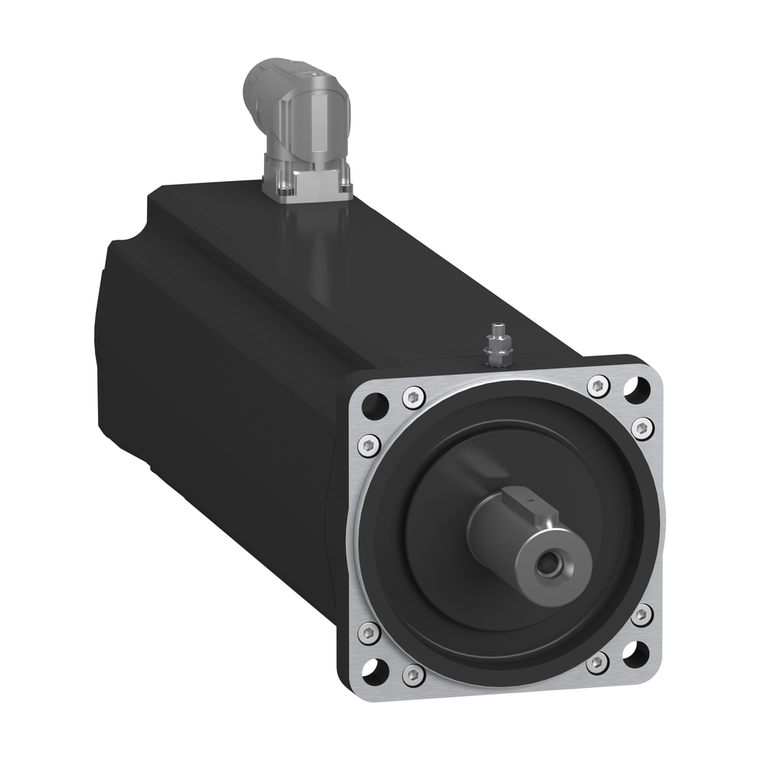

Schneider Electric SH31004P1AF4100 Sh3 Motor 100.4 Key Sgl Brk Omc Ang Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH31004P1AF4100

UPC:

3606481804860

MPN:

Condition:

New

Maximum Radial Force Fr:

145 N 1000 rpm || 115 N 2000 rpm || 100 N 3000 rpm

Range Compatibility:

PacDrive 3

China Rohs Regulation:

X

Sustainable Offer Status:

Green Premium product

Mounting Support:

international standard flange

Key Width:

8 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nominal Torque:

9.5 N.m 230 V single phase || 7.9 N.m 400 V three phase || 6.9 N.m 480 V three phase

Peak Stall Torque:

40.5 N.m 115...480 V three phase

Motor Flange Size:

100 mm

Circle Diameter Of The Mounting Holes:

115 mm

Stator Resistance:

1.8 Ohm

Brake Pull-In Power:

18 W

Centring Collar Diameter:

95 mm

Shaft Length:

50 mm

Environmental Disclosure:

ENVPEP111049EN

Nominal Speed:

1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase

Length:

307.5 mm

Maximum Mechanical Speed:

6000 rpm

Type Of Cooling:

natural convection

Circularity Profile:

N/A

Continuous Stall Torque:

10 N.m 115...480 V three phase

Maximum Current Irms:

32.3 A

Shaft End:

parallel key

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Phase:

three phase

Centring Collar Depth:

3.5 mm

Speed Feedback Resolution:

262144 points/turn

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Axial Force Fa:

20 N

Continuous Stall Current:

6.2 A

Torque Constant:

1.62 N.m/A 120 °C

Mounting Holes Diameter:

9.0 mm

Nominal Output Power:

1490 W 230 V single phase || 2480 W 400 V three phase || 2480 W 480 V three phase

Holding Brake:

with

Holding Torque:

12 N.m

Mercury Free:

Yes

Net Weight:

9.8 kg

Rotor Inertia:

5.245 kg.cm²

Product Or Component Type:

servo motor

Pvc Free:

Yes

Encoder Type:

absolute single turn Hiperface DSL

[Us] Rated Supply Voltage:

115...480 V

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs Exemption Information:

Yes

Number Of Mounting Holes:

4

Number Of Motor Poles:

4

Electrical Connection:

straight connector

Shaft Diameter:

24 mm

Device Short Name:

SH3.....P

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Continuous Power:

2500 W

Stator Inductance:

13 mH

Back Emf Constant:

103 V/krpm 20 °C
