Schneider Electric

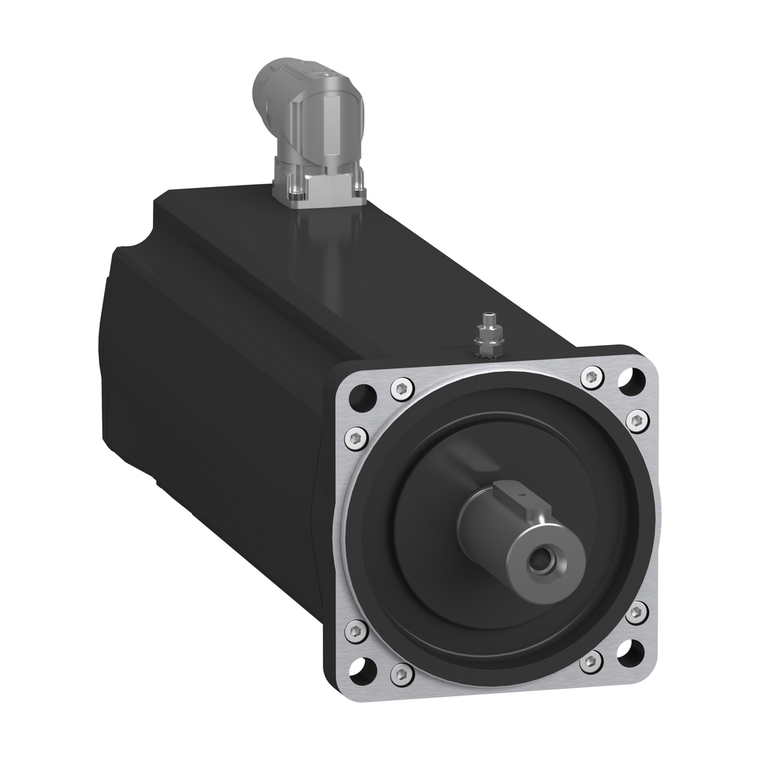

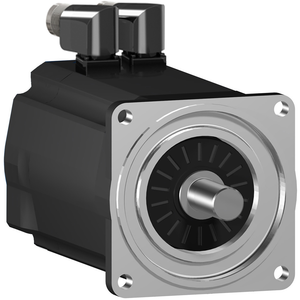

Schneider Electric SH31004P1BA4100 Sh3 Motor 100.4 Key Mlt Omc Ang Ip65

(No reviews yet) Write a Review
SKU:
SH31004P1BA4100
UPC:
3606481804907
Condition:
New
Nominal Output Power:
1490 W 230 V single phase || 2480 W 400 V three phase || 2480 W 480 V three phase
China Rohs Regulation:
X
Stator Inductance:
13 mH
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Stator Resistance:
1.8 Ohm
Length:
276.5 mm
Speed Feedback Resolution:
262144 points/turn x 4096 turns
Continuous Stall Current:
6.2 A
Holding Brake:
without
Environmental Disclosure:
ENVPEP111049EN
Back Emf Constant:
103 V/krpm 20 °C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circularity Profile:
N/A
Type Of Cooling:
natural convection
Number Of Mounting Holes:
4
Shaft Length:
50 mm
Maximum Radial Force Fr:
145 N 1000 rpm || 115 N 2000 rpm || 100 N 3000 rpm
Sustainable Offer Status:
Green Premium product
Torque Constant:
1.62 N.m/A 120 °C
Device Short Name:
SH3.....P
Number Of Motor Poles:
4
Pvc Free:
Yes
Peak Stall Torque:
40.5 N.m 115...480 V three phase
Electrical Connection:
straight connector
Shaft End:
parallel key
Phase:
three phase
Net Weight:
9.1 kg
Mercury Free:
Yes
Ip Degree Of Protection:
motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
Maximum Mechanical Speed:
6000 rpm
Shaft Diameter:
24 mm
Motor Flange Size:
100 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Range Compatibility:
PacDrive 3
Product Or Component Type:
servo motor
Maximum Current Irms:
32.3 A
Mounting Holes Diameter:
9.0 mm
Centring Collar Depth:
3.5 mm
Centring Collar Diameter:
95 mm
Maximum Axial Force Fa:
20 N
Continuous Stall Torque:
10 N.m 115...480 V three phase
Nominal Speed:
1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase
[Us] Rated Supply Voltage:
115...480 V
Encoder Type:
absolute multiturn Hiperface DSL
Mounting Support:
international standard flange
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Circle Diameter Of The Mounting Holes:
115 mm
Nominal Torque:
9.5 N.m 230 V single phase || 7.9 N.m 400 V three phase || 6.9 N.m 480 V three phase
Continuous Power:
2500 W
Key Width:
8 mm
Rotor Inertia:
4.22 kg.cm²
Catalog:
View
Datasheet:
View
$3,148.75

Description

Lexium SH3 Servo motors are designed to fit Lexium 62 and Lexium 52 servo drives, part of PacDrive 3, an automation solution for motion centric machines. The servo motor features maximum mechanical speed of 6000RPM and keyed shaft end without holding brake. It is equipped with an absolute multi turn Hiperface (DSL 18bit, EKM36) encoder. It figures as single angular turntable connector (One motor cable connectivity) for connecting a hybrid cable (DSL cable with quick lock connector). It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 7.8A and a continuous power of 2900W. Shaft end and casing are IP65 rated. The flange size is 70mm, it is fixed by 4x 9mm holes. The circle diameter of the mounting holes is 115mm. it weighs 9.1kg. SH3 servo motors with Lexium 62 multi axis servo drives meet the requirements of production and packaging machinery, material handling and assembly systems. Lexium SH3 servo motors are UL UR and conform to UL1004 as well as European directives CE and UKCA. This SH3 servo motor figuring One-Motor Cable connectivity is compatible with a Lexium 62 servo drive. All mounting positions are permitted (horizontal mounting (IMB5), vertical mounting (IMV1, IMV3) in accordance with IEC 60034-7. Lexium SH3 motors are prime solution to the need for dynamic performance, covering a continuous stall torque range (0.2 to 94.4Nm) for speeds up to 9000 rpm. Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions.
