Schneider Electric SH31402P11A2000 Sh3 Motor 140.2 Key Sgl Ang Ip54
Schneider Electric
$3,091.31
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

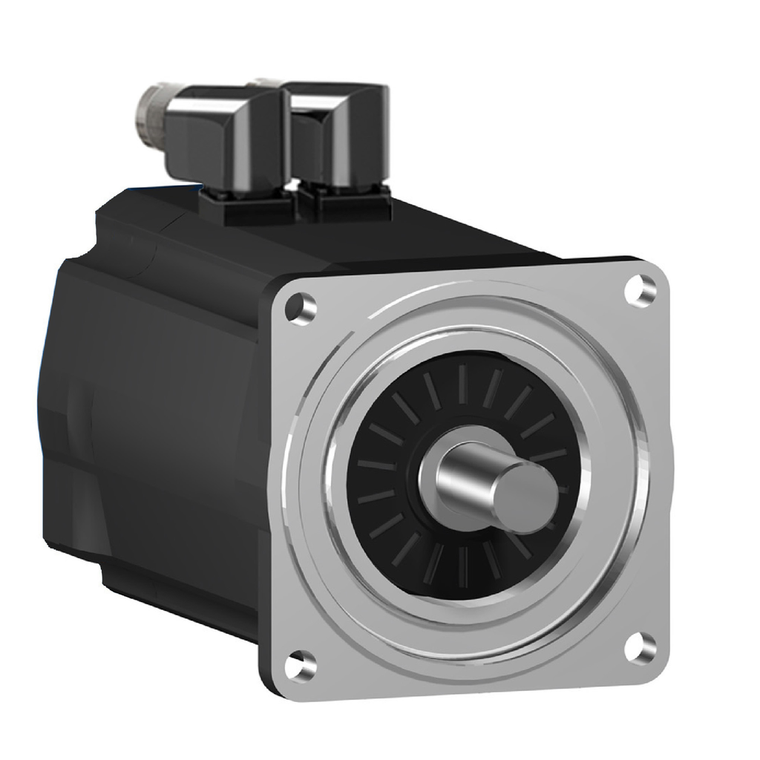

Schneider Electric SH31402P11A2000 Sh3 Motor 140.2 Key Sgl Ang Ip54
This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 5-pole servo motor features maximum mechanical speed of 4000RPM and parallel key shaft end without holding brake. It is an equipped with an absolute single-turn SinCos Hiperface® encoder with 128 periods speed feedback resolution. It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 13.2A and a continuous power of 3900W. The shaft dimensions are 24mm (diameter) x 50mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 and IP65 rated product. The length of this product is 272.5mm and the centering collar dimensions are 3.5mm (depth) x 130mm (diameter) with 165mm mounting hole. It weighs 16.6kg. This range is compatible with PacDrive 3 for motion centric machines. It supports 140mm international standard flange mount with a natural convection cooling system. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
- Mounting Holes Diameter:
- 11 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Maximum Current Irms:
- 44.1 A
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Continuous Stall Current:
- 13.2 A
- Centring Collar Diameter:
- 130 mm
- Shaft Diameter:
- 24 mm
- Warranty:
- 18 months
- China Rohs Regulation:
- X
- Mercury Free:
- Yes
- Stator Resistance:
- 0.6 Ohm
- Centring Collar Depth:
- 3.5 mm
- Nominal Torque:
- 18.6 N.m 115 V single phase || 17.1 N.m 230 V single phase || 12.3 N.m 400 V three phase || 9.7 N.m 480 V three phase
- Electrical Connection:
- rotatable right angled connector
- Ip Degree Of Protection:
- shaft bushing without shaft seal ring IP54 EN/IEC 60034-5 || motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
- Phase:
- three phase
- Stator Inductance:
- 11.225 mH
- Circularity Profile:
- N/A
- Length:
- 272.5 mm
- Net Weight:
- 16.6 kg
- Nominal Output Power:
- 1460 W 115 V single phase || 2690 W 230 V single phase || 3860 W 400 V three phase || 3660 W 480 V three phase
- Product Or Component Type:
- servo motor
- Peak Stall Torque:
- 60.1 N.m 115...480 V three phase
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Speed Feedback Resolution:
- 128 periods
- Shaft Length:
- 50 mm
- Maximum Mechanical Speed:
- 4000 rpm
- Maximum Axial Force Fa:
- 300 N
- Mounting Support:
- international standard flange
- Continuous Power:
- 3900 W
- Back Emf Constant:
- 101 V/krpm 20 °C
- Rotor Inertia:
- 12.68 kg.cm²
- Pvc Free:
- Yes
- Encoder Type:
- absolute single turn SinCos Hiperface
- Environmental Disclosure:
- ENVPEP111049EN
- Torque Constant:
- 1.47 N.m/A 120 °C
- Number Of Mounting Holes:
- 4
- Key Width:
- 8 mm
- Type Of Cooling:
- natural convection
- Maximum Radial Force Fr:
- 2240 N 1000 rpm || 1780 N 2000 rpm || 1550 N 3000 rpm
- Continuous Stall Torque:
- 19.5 N.m 115...480 V three phase
- Motor Flange Size:
- 140 mm
- Nominal Speed:
- 750 rpm 115 V single phase || 1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase
- Holding Brake:
- without
- Device Short Name:
- SH3.....P
- [Us] Rated Supply Voltage:
- 115...480 V
- Shaft End:
- parallel key
- Range Compatibility:
- PacDrive 3
- Circle Diameter Of The Mounting Holes:
- 165 mm
- Number Of Motor Poles:
- 5
- Catalog:
- View
- Datasheet:
- View
