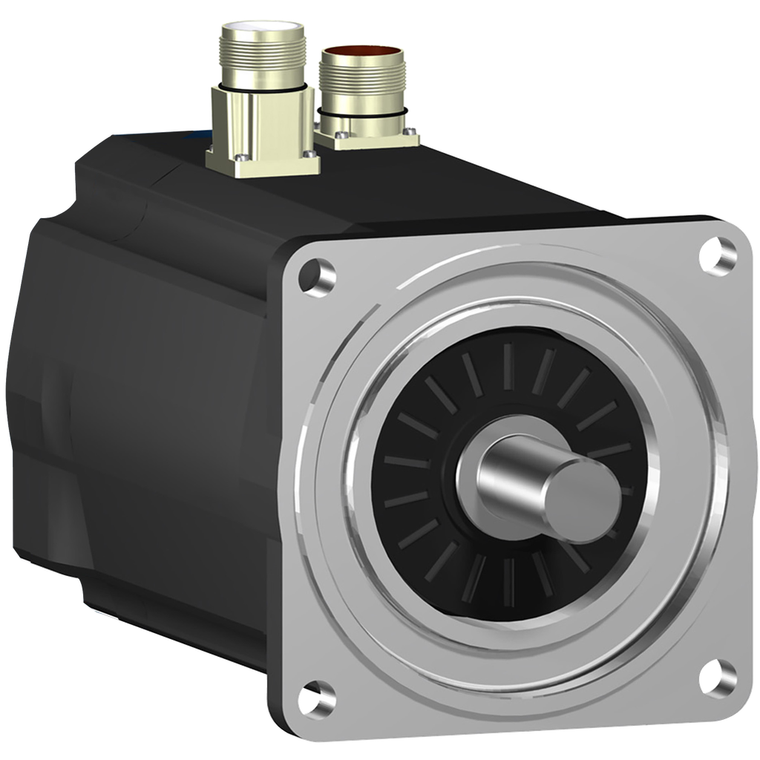

Schneider Electric SH31403P02F1000 Sh3 Motor 140.3 Mlt Brk Str Ip54

SKU:

SH31403P02F1000

UPC:

3.60648E+12

MPN:

Condition:

New

Rotor Inertia:

23.44 kg.cm²

Mounting Holes Diameter:

11 mm

Number Of Mounting Holes:

4

Circle Diameter Of The Mounting Holes:

165 mm

Nominal Speed:

750 rpm 115 V single phase || 1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Holding Torque:

36 N.m

Continuous Power:

4100 W

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Nominal Torque:

24.7 N.m 115 V single phase || 21.2 N.m 230 V single phase || 12.9 N.m 400 V three phase || 9.1 N.m 480 V three phase

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Centring Collar Diameter:

130 mm

Number Of Motor Poles:

5

Maximum Current Irms:

61 A

Length:

365.5 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ip Degree Of Protection:

shaft bushing without shaft seal ring IP54 EN/IEC 60034-5 || motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Stator Inductance:

7.72 mH

Peak Stall Torque:

90.2 N.m 115...480 V three phase

Rohs Exemption Information:

Yes

Phase:

three phase

Mercury Free:

Yes

Range Compatibility:

PacDrive 3

Shaft End:

smooth shaft

Maximum Radial Force Fr:

2420 N 1000 rpm || 1920 N 2000 rpm || 1670 N 3000 rpm

Type Of Cooling:

natural convection

Mounting Support:

international standard flange

Holding Brake:

with

Net Weight:

23.1 kg

Maximum Mechanical Speed:

4000 rpm

Circularity Profile:

N/A

Back Emf Constant:

105 V/krpm 20 °C

Device Short Name:

SH3.....P

Sustainable Offer Status:

Green Premium product

Motor Flange Size:

140 mm

Encoder Type:

absolute multiturn SinCos Hiperface

Nominal Output Power:

1940 W 115 V single phase || 3330 W 230 V single phase || 4050 W 400 V three phase || 3430 W 480 V three phase

China Rohs Regulation:

X

Torque Constant:

1.58 N.m/A 120 °C

Warranty:

18 months

Shaft Length:

50 mm

Maximum Axial Force Fa:

300 N

Centring Collar Depth:

3.5 mm

Continuous Stall Current:

17.6 A

[Us] Rated Supply Voltage:

115...480 V

Product Or Component Type:

servo motor

Shaft Diameter:

24 mm

Speed Feedback Resolution:

128 periods

Pvc Free:

Yes

Continuous Stall Torque:

27.8 N.m 115...480 V three phase

Electrical Connection:

straight connector

Environmental Disclosure:

ENVPEP111049EN

Stator Resistance:

0.4 Ohm
