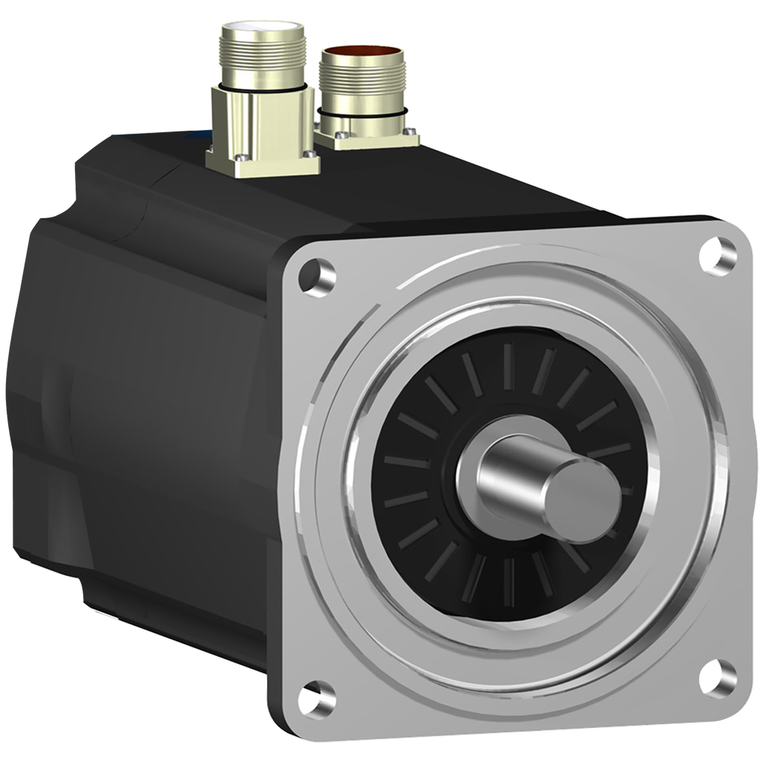

Schneider Electric SH31403P12F1000 Sh3 Motor 140.3 Key Mlt Brk Str Ip54

SKU:

SH31403P12F1000

UPC:

3.60648E+12

MPN:

Condition:

New

Encoder Type:

absolute multiturn SinCos Hiperface

Electrical Connection:

straight connector

Peak Stall Torque:

90.2 N.m 115...480 V three phase

[Us] Rated Supply Voltage:

115...480 V

Key Width:

8 mm

Rohs Exemption Information:

Yes

Ip Degree Of Protection:

shaft bushing without shaft seal ring IP54 EN/IEC 60034-5 || motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Stator Inductance:

7.72 mH

Length:

365.5 mm

Centring Collar Depth:

3.5 mm

Circle Diameter Of The Mounting Holes:

165 mm

Number Of Mounting Holes:

4

Stator Resistance:

0.4 Ohm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Nominal Speed:

750 rpm 115 V single phase || 1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase

Centring Collar Diameter:

130 mm

Mounting Support:

international standard flange

Mounting Holes Diameter:

11 mm

Back Emf Constant:

105 V/krpm 20 °C

Pvc Free:

Yes

Mercury Free:

Yes

Shaft Diameter:

24 mm

Motor Flange Size:

140 mm

Holding Brake:

with

Continuous Power:

4100 W

Maximum Current Irms:

61 A

Rotor Inertia:

23.44 kg.cm²

Maximum Radial Force Fr:

2420 N 1000 rpm || 1920 N 2000 rpm || 1670 N 3000 rpm

Nominal Torque:

24.7 N.m 115 V single phase || 21.2 N.m 230 V single phase || 12.9 N.m 400 V three phase || 9.1 N.m 480 V three phase

Continuous Stall Current:

17.6 A

Torque Constant:

1.58 N.m/A 120 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Mechanical Speed:

4000 rpm

Holding Torque:

36 N.m

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Axial Force Fa:

300 N

Number Of Motor Poles:

5

Product Or Component Type:

servo motor

Type Of Cooling:

natural convection

Device Short Name:

SH3.....P

Speed Feedback Resolution:

128 periods

Range Compatibility:

PacDrive 3

Sustainable Offer Status:

Green Premium product

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shaft Length:

50 mm

Warranty:

18 months

Shaft End:

parallel key

Phase:

three phase

Nominal Output Power:

1940 W 115 V single phase || 3330 W 230 V single phase || 4050 W 400 V three phase || 3430 W 480 V three phase

Environmental Disclosure:

ENVPEP111049EN

Continuous Stall Torque:

27.8 N.m 115...480 V three phase

Net Weight:

23.1 kg

China Rohs Regulation:

X

Circularity Profile:

N/A
