Schneider Electric

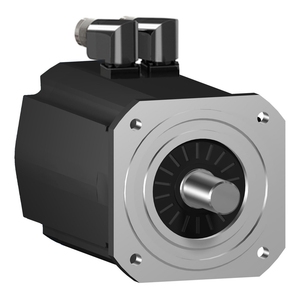

Schneider Electric SH32051P01F2200 Sh3 Motor 205.1 Sgl Brk Ang Ip65

SKU:

SH32051P01F2200

UPC:

3606481973207

MPN:

Condition:

New

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5 || housing IP67 EN/IEC 60034-5

Number Of Motor Poles:

5

Nominal Output Power:

2510 W 115 V single phase || 4240 W 230 V single phase || 5500 W 400 V three phase || 5200 W 480 V three phase

Centring Collar Depth:

4 mm

Centring Collar Diameter:

180 mm

Pvc Free:

Yes

Maximum Axial Force Fa:

740 N

Sustainable Offer Status:

Green Premium product

Torque Constant:

1.6 N.m/A 120 °C

Warranty:

18 months

Nominal Speed:

750 rpm 115 V single phase || 1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase

Motor Flange Size:

205 mm

Environmental Disclosure:

ENVPEP111049EN

China Rohs Regulation:

X

Shaft Length:

80 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Rohs Exemption Information:

Yes

Length:

370.5 mm

Encoder Type:

absolute single turn SinCos Hiperface

Circle Diameter Of The Mounting Holes:

215 mm

Continuous Stall Torque:

36.9 N.m 115...480 V three phase

Type Of Cooling:

natural convection

Holding Brake:

with

Device Short Name:

SH3.....P

Nominal Torque:

31.9 N.m 115 V single phase || 27 N.m 230 V single phase || 17.5 N.m 400 V three phase || 13.8 N.m 480 V three phase

Shaft Diameter:

38 mm

Maximum Mechanical Speed:

3800 rpm

Rotor Inertia:

87.4 kg.cm²

Maximum Current Irms:

87.2 A

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Stator Inductance:

8.7 mH

Product Or Component Type:

servo motor

Peak Stall Torque:

110 N.m 115...480 V three phase

Range Compatibility:

PacDrive 3

Continuous Stall Current:

21 A

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Circularity Profile:

N/A

Number Of Mounting Holes:

4

Maximum Radial Force Fr:

3730 N 1000 rpm || 2960 N 2000 rpm || 2580 N 3000 rpm

Mounting Holes Diameter:

14 mm

Continuous Power:

5500 W

Mounting Support:

international standard flange

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Holding Torque:

80 N.m

Electrical Connection:

rotatable right angled connector

Speed Feedback Resolution:

128 periods

Net Weight:

38.6 kg

Back Emf Constant:

104 V/krpm 20 °C

[Us] Rated Supply Voltage:

115...480 V

Stator Resistance:

0.3 Ohm

Phase:

three phase

Mercury Free:

Yes

Shaft End:

smooth shaft
