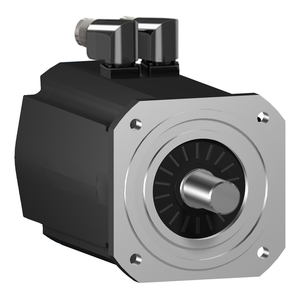

Schneider Electric SH32051P11F2100 Sh3 Motor 205.1 Key Sgl Brk Ang Ip65
SKU:
SH32051P11F2100
UPC:
3606481973313
MPN:
Condition:
New
Ip Degree Of Protection:
motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
Centring Collar Diameter:
180 mm
Shaft Diameter:
38 mm
Mounting Support:
international standard flange
Back Emf Constant:
104 V/krpm 20 °C
China Rohs Regulation:
X
Torque Constant:
1.6 N.m/A 120 °C
Length:
370.5 mm
Device Short Name:
SH3.....P
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Nominal Output Power:
2510 W 115 V single phase || 4240 W 230 V single phase || 5500 W 400 V three phase || 5200 W 480 V three phase
Holding Torque:
80 N.m
Shaft Length:
80 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Stator Inductance:
8.7 mH
Holding Brake:
with
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Current Irms:
87.2 A
Key Width:
10 mm
Product Or Component Type:
servo motor
Centring Collar Depth:
4 mm
Range Compatibility:
PacDrive 3
Nominal Torque:
31.9 N.m 115 V single phase || 27 N.m 230 V single phase || 17.5 N.m 400 V three phase || 13.8 N.m 480 V three phase
Mounting Holes Diameter:
14 mm
Phase:
three phase
Number Of Mounting Holes:
4
Maximum Axial Force Fa:
740 N
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Circularity Profile:
N/A
Speed Feedback Resolution:
128 periods
Shaft End:
parallel key
Number Of Motor Poles:
5
Continuous Stall Current:
21 A
Continuous Power:
5500 W
Peak Stall Torque:
110 N.m 115...480 V three phase
[Us] Rated Supply Voltage:
115...480 V
Motor Flange Size:
205 mm
Rohs Exemption Information:
Yes
Circle Diameter Of The Mounting Holes:
215 mm
Pvc Free:
Yes
Electrical Connection:
straight connector
Rotor Inertia:
87.4 kg.cm²
Environmental Disclosure:
ENVPEP111049EN
Warranty:
18 months
Maximum Radial Force Fr:
3730 N 1000 rpm || 2960 N 2000 rpm || 2580 N 3000 rpm
Mercury Free:
Yes
Encoder Type:
absolute single turn SinCos Hiperface
Net Weight:
38.6 kg
Sustainable Offer Status:
Green Premium product
Nominal Speed:
750 rpm 115 V single phase || 1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase
