Schneider Electric

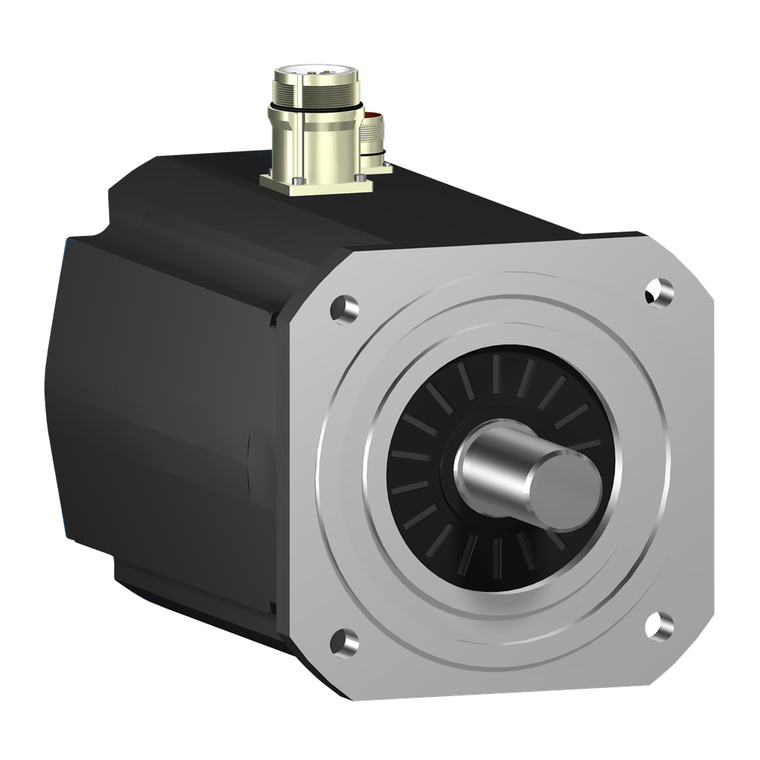

Schneider Electric SH32051P12A1000 Sh3 Motor 205.1 Key Mlt Str Ip54

SKU:

SH32051P12A1000

UPC:

3.60648E+12

MPN:

Condition:

New

Centring Collar Diameter:

180 mm

Back Emf Constant:

104 V/krpm 20 °C

Holding Brake:

without

Shaft Length:

80 mm

Centring Collar Depth:

4 mm

Maximum Radial Force Fr:

3730 N 1000 rpm || 2960 N 2000 rpm || 2580 N 3000 rpm

Rotor Inertia:

71.4 kg.cm²

Maximum Mechanical Speed:

3800 rpm

Torque Constant:

1.6 N.m/A 120 °C

Product Or Component Type:

servo motor

Maximum Current Irms:

87.2 A

Nominal Torque:

31.9 N.m 115 V single phase || 27 N.m 230 V single phase || 17.5 N.m 400 V three phase || 13.8 N.m 480 V three phase

Mounting Holes Diameter:

14 mm

Rohs Exemption Information:

Yes

Peak Stall Torque:

110 N.m 115...480 V three phase

Number Of Motor Poles:

5

Mounting Support:

international standard flange

Circle Diameter Of The Mounting Holes:

215 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Us] Rated Supply Voltage:

115...480 V

Speed Feedback Resolution:

128 periods

Environmental Disclosure:

ENVPEP111049EN

Shaft End:

parallel key

Nominal Speed:

750 rpm 115 V single phase || 1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase

Continuous Stall Current:

21 A

Continuous Power:

5500 W

Motor Flange Size:

205 mm

Continuous Stall Torque:

36.9 N.m 115...480 V three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Sustainable Offer Status:

Green Premium product

Circularity Profile:

N/A

Pvc Free:

Yes

Shaft Diameter:

38 mm

Nominal Output Power:

2510 W 115 V single phase || 4240 W 230 V single phase || 5500 W 400 V three phase || 5200 W 480 V three phase

Length:

321 mm

Device Short Name:

SH3.....P

Range Compatibility:

PacDrive 3

Number Of Mounting Holes:

4

Ip Degree Of Protection:

shaft bushing without shaft seal ring IP54 EN/IEC 60034-5 || motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Stator Inductance:

8.7 mH

Phase:

three phase

Maximum Axial Force Fa:

740 N

Warranty:

18 months

China Rohs Regulation:

X

Mercury Free:

Yes

Key Width:

10 mm

Encoder Type:

absolute multiturn SinCos Hiperface

Stator Resistance:

0.3 Ohm

Net Weight:

35 kg

Electrical Connection:

rotatable right angled connector

Type Of Cooling:

natural convection

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
