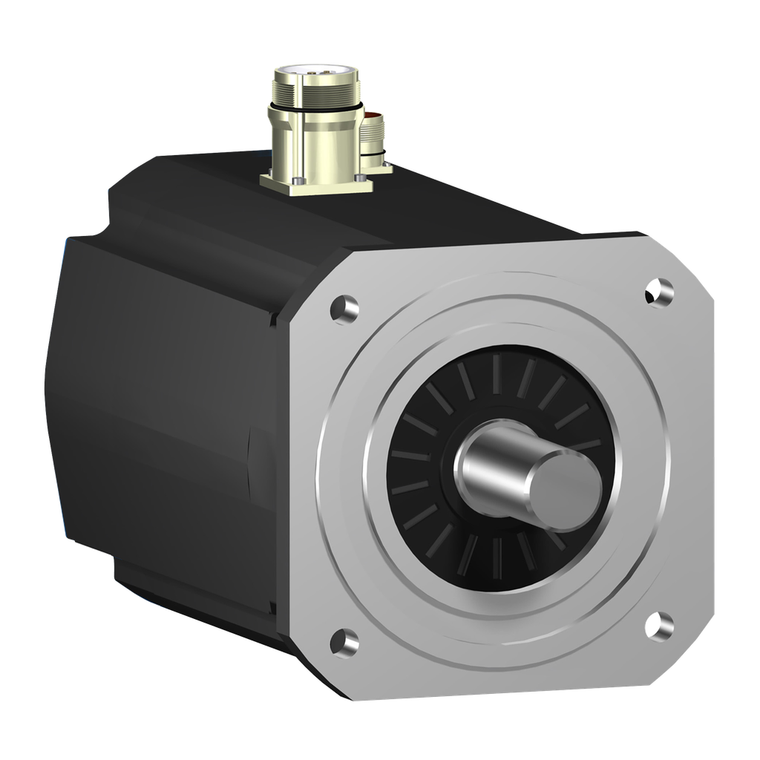

Schneider Electric SH32052P01F1100 Sh3 Motor 205.2 Sgl Brk Str Ip65
SKU:
SH32052P01F1100
UPC:
3606481973412
MPN:
Condition:
New
Maximum Radial Force Fr:
4200 N 1000 rpm || 3330 N 2000 rpm || 2910 N 3000 rpm
Shaft End:
smooth shaft
Ip Degree Of Protection:
motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
Mounting Holes Diameter:
14 mm
Environmental Disclosure:
ENVPEP111049EN
Encoder Type:
absolute single turn SinCos Hiperface
Type Of Cooling:
natural convection
Warranty:
18 months
Peak Stall Torque:
220 N.m 115...480 V three phase
Maximum Current Irms:
96.8 A
Electrical Connection:
rotatable right angled connector
Circularity Profile:
N/A
Product Or Component Type:
servo motor
Stator Inductance:
8.2 mH
Nominal Speed:
500 rpm 115 V single phase || 1000 rpm 230 V single phase || 2000 rpm 400 V three phase || 2400 rpm 480 V three phase
Continuous Stall Torque:
64.9 N.m 115...480 V three phase
Phase:
three phase
Rohs Exemption Information:
Yes
Length:
454.5 mm
Rotor Inertia:
145 kg.cm²
Nominal Torque:
61.6 N.m 115 V single phase || 56 N.m 230 V single phase || 38.1 N.m 400 V three phase || 28.4 N.m 480 V three phase
Continuous Stall Current:
25.7 A
Centring Collar Depth:
4 mm
Nominal Output Power:
3230 W 115 V single phase || 5860 W 230 V single phase || 7980 W 400 V three phase || 7140 W 480 V three phase
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Back Emf Constant:
161 V/krpm 20 °C
Number Of Mounting Holes:
4
Circle Diameter Of The Mounting Holes:
215 mm
Pvc Free:
Yes
Maximum Axial Force Fa:
740 N
Continuous Power:
7900 W
Maximum Mechanical Speed:
3800 rpm
Speed Feedback Resolution:
128 periods
Holding Torque:
80 N.m
Centring Collar Diameter:
180 mm
Number Of Motor Poles:
5
Stator Resistance:
0.3 Ohm
Range Compatibility:
PacDrive 3
Mounting Support:
international standard flange
Mercury Free:
Yes
Device Short Name:
SH3.....P
Shaft Length:
80 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Sustainable Offer Status:
Green Premium product
Holding Brake:
with
Motor Flange Size:
205 mm
Shaft Diameter:
38 mm
Net Weight:
53.6 kg
[Us] Rated Supply Voltage:
115...480 V
Torque Constant:
2.58 N.m/A 120 °C
China Rohs Regulation:
X
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
