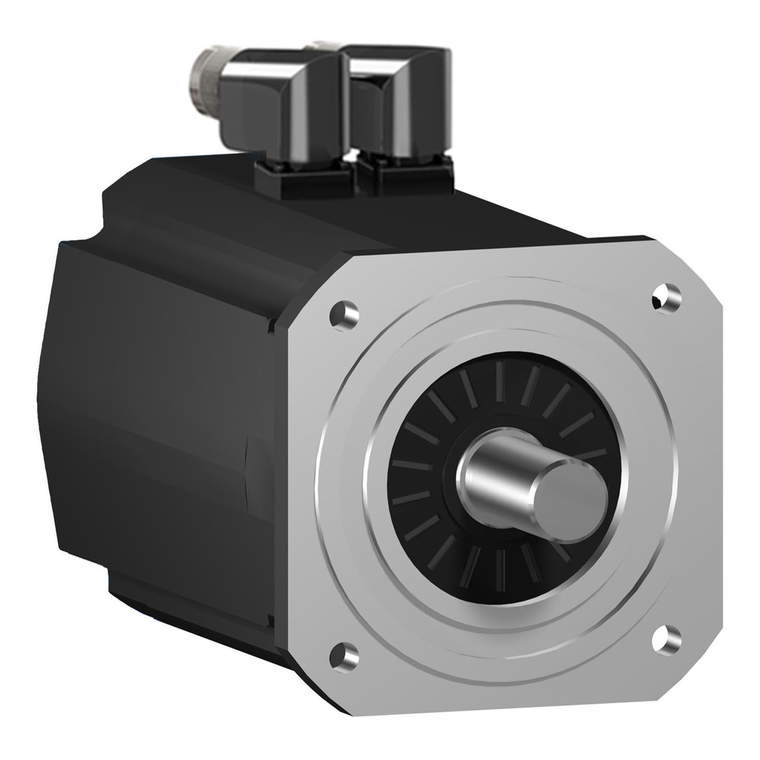

Schneider Electric SH32052P02A2200 Sh3 Motor 205.2 Mlt Ang Ip65
SKU:
SH32052P02A2200
UPC:
3606481973467
MPN:
Condition:
New
Type Of Cooling:
natural convection
Nominal Output Power:
3230 W 115 V single phase || 5860 W 230 V single phase || 7980 W 400 V three phase || 7140 W 480 V three phase
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Device Short Name:
SH3.....P
Torque Constant:
2.58 N.m/A 120 °C
Continuous Stall Current:
25.7 A
Environmental Disclosure:
ENVPEP111049EN
China Rohs Regulation:
X
Continuous Power:
7900 W
Shaft End:
smooth shaft
Maximum Current Irms:
96.8 A
Mounting Holes Diameter:
14 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Electrical Connection:
rotatable right angled connector
Circle Diameter Of The Mounting Holes:
215 mm
Stator Resistance:
0.3 Ohm
Shaft Diameter:
38 mm
Number Of Motor Poles:
5
[Us] Rated Supply Voltage:
115...480 V
Encoder Type:
absolute multiturn SinCos Hiperface
Rotor Inertia:
129 kg.cm²
Nominal Speed:
500 rpm 115 V single phase || 1000 rpm 230 V single phase || 2000 rpm 400 V three phase || 2400 rpm 480 V three phase
Number Of Mounting Holes:
4
Circularity Profile:
N/A
Length:
405 mm
Shaft Length:
80 mm
Mercury Free:
Yes
Maximum Axial Force Fa:
740 N
Maximum Mechanical Speed:
3800 rpm
Centring Collar Diameter:
180 mm
Net Weight:
50 kg
Product Or Component Type:
servo motor
Back Emf Constant:
161 V/krpm 20 °C
Continuous Stall Torque:
64.9 N.m 115...480 V three phase
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Radial Force Fr:
4200 N 1000 rpm || 3330 N 2000 rpm || 2910 N 3000 rpm
Stator Inductance:
8.2 mH
Mounting Support:
international standard flange
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
