Schneider Electric

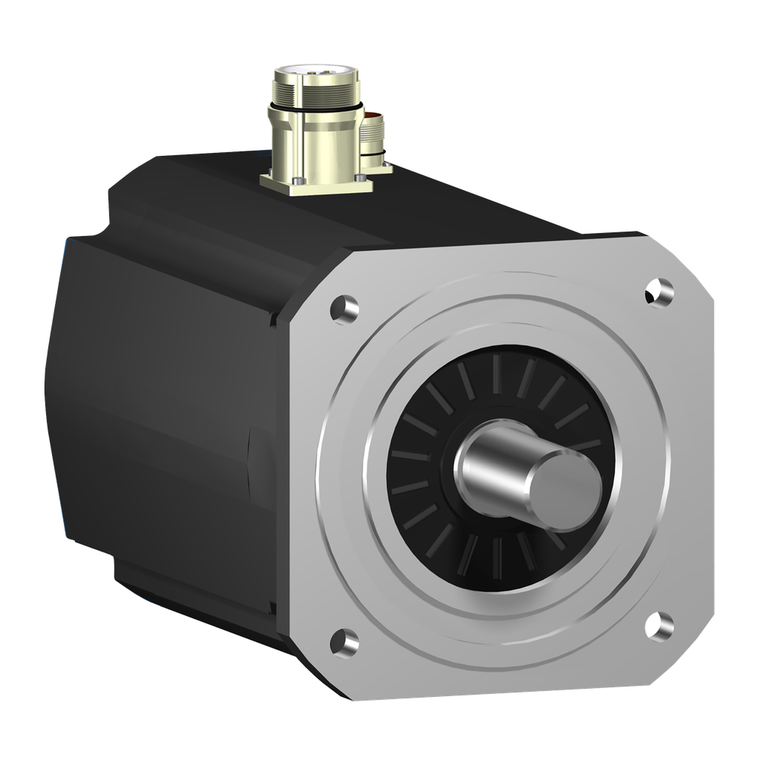

Schneider Electric SH32052P02F1100 Sh3 Motor 205.2 Mlt Brk Str Ip65

SKU:

SH32052P02F1100

UPC:

3606481973481

MPN:

Condition:

New

Number Of Motor Poles:

5

Centring Collar Depth:

4 mm

Nominal Output Power:

3230 W 115 V single phase || 5860 W 230 V single phase || 7980 W 400 V three phase || 7140 W 480 V three phase

Speed Feedback Resolution:

128 periods

Range Compatibility:

PacDrive 3

Holding Brake:

with

Motor Flange Size:

205 mm

China Rohs Regulation:

X

Phase:

three phase

Circularity Profile:

N/A

Maximum Current Irms:

96.8 A

Maximum Axial Force Fa:

740 N

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Or Component Type:

servo motor

Stator Inductance:

8.2 mH

Rotor Inertia:

145 kg.cm²

Mercury Free:

Yes

Electrical Connection:

rotatable right angled connector

Pvc Free:

Yes

Warranty:

18 months

Rohs Exemption Information:

Yes

Peak Stall Torque:

220 N.m 115...480 V three phase

Continuous Stall Current:

25.7 A

Device Short Name:

SH3.....P

Holding Torque:

80 N.m

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Nominal Torque:

61.6 N.m 115 V single phase || 56 N.m 230 V single phase || 38.1 N.m 400 V three phase || 28.4 N.m 480 V three phase

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

Maximum Radial Force Fr:

4200 N 1000 rpm || 3330 N 2000 rpm || 2910 N 3000 rpm

Maximum Mechanical Speed:

3800 rpm

Shaft End:

smooth shaft

Environmental Disclosure:

ENVPEP111049EN

Encoder Type:

absolute multiturn SinCos Hiperface

Circle Diameter Of The Mounting Holes:

215 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Shaft Diameter:

38 mm

Type Of Cooling:

natural convection

Length:

454.5 mm

Mounting Support:

international standard flange

Continuous Stall Torque:

64.9 N.m 115...480 V three phase

Nominal Speed:

500 rpm 115 V single phase || 1000 rpm 230 V single phase || 2000 rpm 400 V three phase || 2400 rpm 480 V three phase

Sustainable Offer Status:

Green Premium product

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Continuous Power:

7900 W

Torque Constant:

2.58 N.m/A 120 °C

Mounting Holes Diameter:

14 mm

Shaft Length:

80 mm

Number Of Mounting Holes:

4

Back Emf Constant:

161 V/krpm 20 °C

Stator Resistance:

0.3 Ohm

Centring Collar Diameter:

180 mm

Net Weight:

53.6 kg

[Us] Rated Supply Voltage:

115...480 V
