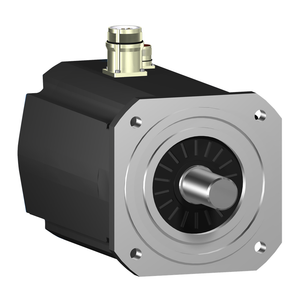

Schneider Electric SH32052P11F1000 Sh3 Motor 205.2 Key Sgl Brk Str Ip54
SKU:
SH32052P11F1000
UPC:
3606481973528
MPN:
Condition:
New
Warranty:
18 months
Continuous Power:
7900 W
Centring Collar Diameter:
180 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Us] Rated Supply Voltage:
115...480 V
Rohs Exemption Information:
Yes
Holding Brake:
with
Back Emf Constant:
161 V/krpm 20 °C
Length:
454.5 mm
Continuous Stall Torque:
64.9 N.m 115...480 V three phase
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Speed Feedback Resolution:
128 periods
China Rohs Regulation:
X
Net Weight:
53.6 kg
Device Short Name:
SH3.....P
Continuous Stall Current:
25.7 A
Shaft Diameter:
38 mm
Maximum Axial Force Fa:
740 N
Nominal Output Power:
3230 W 115 V single phase || 5860 W 230 V single phase || 7980 W 400 V three phase || 7140 W 480 V three phase
Number Of Mounting Holes:
4
Shaft Length:
80 mm
Sustainable Offer Status:
Green Premium product
Number Of Motor Poles:
5
Shaft End:
parallel key
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mercury Free:
Yes
Holding Torque:
80 N.m
Pvc Free:
Yes
Maximum Current Irms:
96.8 A
Maximum Radial Force Fr:
4200 N 1000 rpm || 3330 N 2000 rpm || 2910 N 3000 rpm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Centring Collar Depth:
4 mm
Stator Resistance:
0.3 Ohm
Encoder Type:
absolute single turn SinCos Hiperface
Ip Degree Of Protection:
shaft bushing without shaft seal ring IP54 EN/IEC 60034-5 || motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
Electrical Connection:
rotatable right angled connector
Product Or Component Type:
servo motor
Nominal Torque:
61.6 N.m 115 V single phase || 56 N.m 230 V single phase || 38.1 N.m 400 V three phase || 28.4 N.m 480 V three phase
Phase:
three phase
Nominal Speed:
500 rpm 115 V single phase || 1000 rpm 230 V single phase || 2000 rpm 400 V three phase || 2400 rpm 480 V three phase
