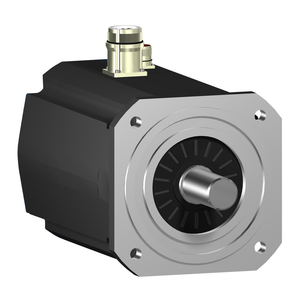

Schneider Electric SH32052P11F1100 Sh3 Motor 205.2 Key Sgl Brk Str Ip65
SKU:
SH32052P11F1100
UPC:
3606481973535
MPN:
Condition:
New
Phase:
three phase
Holding Brake:
with
Continuous Power:
7900 W
China Rohs Regulation:
X
Peak Stall Torque:
220 N.m 115...480 V three phase
Nominal Speed:
500 rpm 115 V single phase || 1000 rpm 230 V single phase || 2000 rpm 400 V three phase || 2400 rpm 480 V three phase
Shaft Length:
80 mm
Type Of Cooling:
natural convection
Range Compatibility:
PacDrive 3
Shaft End:
parallel key
Number Of Motor Poles:
5
Ip Degree Of Protection:
motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
[Us] Rated Supply Voltage:
115...480 V
Pvc Free:
Yes
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP111049EN
Net Weight:
53.6 kg
Centring Collar Diameter:
180 mm
Centring Collar Depth:
4 mm
Continuous Stall Current:
25.7 A
Back Emf Constant:
161 V/krpm 20 °C
Device Short Name:
SH3.....P
Electrical Connection:
rotatable right angled connector
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Holding Torque:
80 N.m
Length:
454.5 mm
Stator Resistance:
0.3 Ohm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Nominal Torque:
61.6 N.m 115 V single phase || 56 N.m 230 V single phase || 38.1 N.m 400 V three phase || 28.4 N.m 480 V three phase
Key Width:
10 mm
Product Or Component Type:
servo motor
Maximum Radial Force Fr:
4200 N 1000 rpm || 3330 N 2000 rpm || 2910 N 3000 rpm
Shaft Diameter:
38 mm
Encoder Type:
absolute single turn SinCos Hiperface
Maximum Axial Force Fa:
740 N
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mounting Holes Diameter:
14 mm
Rotor Inertia:
145 kg.cm²
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Maximum Mechanical Speed:
3800 rpm
Warranty:
18 months
Circle Diameter Of The Mounting Holes:
215 mm
Continuous Stall Torque:
64.9 N.m 115...480 V three phase
Torque Constant:
2.58 N.m/A 120 °C
Nominal Output Power:
3230 W 115 V single phase || 5860 W 230 V single phase || 7980 W 400 V three phase || 7140 W 480 V three phase
