Schneider Electric

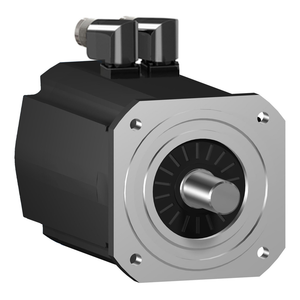

Schneider Electric SH32052P12F2200 Sh3 Motor 205.2 Key Mlt Brk Ang Ip65

SKU:

SH32052P12F2200

UPC:

3606489917722

MPN:

Condition:

New

Maximum Current Irms:

96.8 A

Holding Torque:

80 N.m

Environmental Disclosure:

ENVPEP111049EN

Continuous Stall Torque:

64.9 N.m 115...480 V three phase

Back Emf Constant:

161 V/krpm 20 °C

Maximum Mechanical Speed:

3800 rpm

Pvc Free:

Yes

Nominal Speed:

500 rpm 115 V single phase || 1000 rpm 230 V single phase || 2000 rpm 400 V three phase || 2400 rpm 480 V three phase

Mercury Free:

Yes

[Us] Rated Supply Voltage:

115...480 V

Net Weight:

53.6 kg

Maximum Radial Force Fr:

4200 N 1000 rpm || 3330 N 2000 rpm || 2910 N 3000 rpm

Product Or Component Type:

servo motor

Speed Feedback Resolution:

128 periods

Motor Flange Size:

205 mm

Torque Constant:

2.58 N.m/A 120 °C

Rohs Exemption Information:

Yes

Peak Stall Torque:

220 N.m 115...480 V three phase

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Holding Brake:

with

Mounting Holes Diameter:

14 mm

Centring Collar Diameter:

180 mm

Shaft Length:

80 mm

Encoder Type:

absolute multiturn SinCos Hiperface

Nominal Torque:

61.6 N.m 115 V single phase || 56 N.m 230 V single phase || 38.1 N.m 400 V three phase || 28.4 N.m 480 V three phase

Stator Resistance:

0.3 Ohm

Shaft End:

parallel key

Number Of Motor Poles:

5

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Rotor Inertia:

145 kg.cm²

Warranty:

18 months

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Phase:

three phase

Circle Diameter Of The Mounting Holes:

215 mm

Range Compatibility:

PacDrive 3

Key Width:

10 mm

Electrical Connection:

rotatable right angled connector

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5 || housing IP67 EN/IEC 60034-5

Device Short Name:

SH3.....P

Centring Collar Depth:

4 mm

Sustainable Offer Status:

Green Premium product

Continuous Power:

7900 W

Stator Inductance:

8.2 mH

Type Of Cooling:

natural convection

China Rohs Regulation:

X

Length:

454.5 mm

Mounting Support:

international standard flange

Circularity Profile:

N/A

Nominal Output Power:

3230 W 115 V single phase || 5860 W 230 V single phase || 7980 W 400 V three phase || 7140 W 480 V three phase

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Continuous Stall Current:

25.7 A

Shaft Diameter:

38 mm

Maximum Axial Force Fa:

740 N

Number Of Mounting Holes:

4
