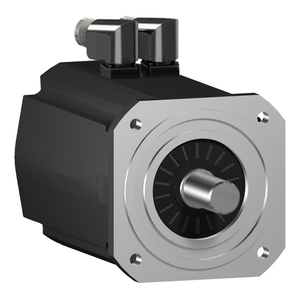

Schneider Electric SH32053P12A2100 Sh3 Motor 205.3 Key Mlt Ang Ip65

SKU:

SH32053P12A2100

UPC:

3.60648E+12

MPN:

Condition:

New

Back Emf Constant:

172 V/krpm 20 °C

Nominal Torque:

84.9 N.m 115 V single phase || 74.4 N.m 230 V single phase || 50.7 N.m 400 V three phase || 40.2 N.m 480 V three phase

Phase:

three phase

Type Of Cooling:

natural convection

Maximum Current Irms:

136.1 A

Number Of Motor Poles:

5

Centring Collar Diameter:

180 mm

Circle Diameter Of The Mounting Holes:

215 mm

Stator Resistance:

0.2 Ohm

Holding Brake:

without

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Net Weight:

67 kg

Continuous Stall Current:

33.2 A

Mounting Support:

international standard flange

Motor Flange Size:

205 mm

Rotor Inertia:

190 kg.cm²

Shaft Length:

80 mm

Maximum Axial Force Fa:

740 N

Centring Collar Depth:

4 mm

Device Short Name:

SH3.....P

Torque Constant:

2.76 N.m/A 120 °C

Range Compatibility:

PacDrive 3

Electrical Connection:

straight connector

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5

China Rohs Regulation:

X

Maximum Radial Force Fr:

4500 N 1000 rpm || 3570 N 2000 rpm || 3120 N 3000 rpm

Key Width:

10 mm

Circularity Profile:

N/A

Pvc Free:

Yes

Length:

489 mm

Nominal Output Power:

4450 W 115 V single phase || 7790 W 230 V single phase || 10620 W 400 V three phase || 10100 W 480 V three phase

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Encoder Type:

absolute multiturn SinCos Hiperface

Shaft End:

parallel key

Warranty:

18 months

Environmental Disclosure:

ENVPEP111049EN

Peak Stall Torque:

330 N.m 115...480 V three phase

Maximum Mechanical Speed:

3800 rpm

Nominal Speed:

500 rpm 115 V single phase || 1000 rpm 230 V single phase || 2000 rpm 400 V three phase || 2400 rpm 480 V three phase

Mounting Holes Diameter:

14 mm

Sustainable Offer Status:

Green Premium product

Product Or Component Type:

servo motor

Shaft Diameter:

38 mm

Mercury Free:

Yes

Speed Feedback Resolution:

128 periods

Number Of Mounting Holes:

4

Continuous Power:

10600 W

[Us] Rated Supply Voltage:

115...480 V

Continuous Stall Torque:

94.4 N.m 115...480 V three phase

Stator Inductance:

6.3 mH

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Rohs Exemption Information:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Catalog:

View

Datasheet:

View
