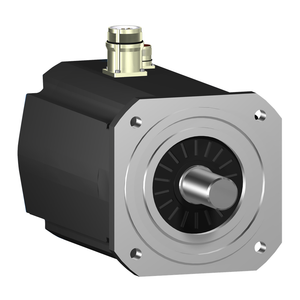

Schneider Electric SH32053P12F1100 Sh3 Motor 205.3 Key Mlt Brk Str Ip65
SKU:
SH32053P12F1100
UPC:
3.60648E+12
MPN:
Condition:
New
Number Of Motor Poles:
5
Mounting Support:
international standard flange
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Continuous Stall Current:
33.2 A
Nominal Speed:
500 rpm 115 V single phase || 1000 rpm 230 V single phase || 2000 rpm 400 V three phase || 2400 rpm 480 V three phase
Holding Brake:
with
Encoder Type:
absolute multiturn SinCos Hiperface
Centring Collar Depth:
4 mm
Stator Inductance:
6.3 mH
Centring Collar Diameter:
180 mm
Maximum Radial Force Fr:
4500 N 1000 rpm || 3570 N 2000 rpm || 3120 N 3000 rpm
Maximum Current Irms:
136.1 A
Type Of Cooling:
natural convection
Torque Constant:
2.76 N.m/A 120 °C
Shaft End:
parallel key
Ip Degree Of Protection:
motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
[Us] Rated Supply Voltage:
115...480 V
Circularity Profile:
N/A
Product Or Component Type:
servo motor
Nominal Output Power:
4450 W 115 V single phase || 7790 W 230 V single phase || 10620 W 400 V three phase || 10100 W 480 V three phase
Number Of Mounting Holes:
4
Motor Flange Size:
205 mm
Environmental Disclosure:
ENVPEP111049EN
Shaft Length:
80 mm
Circle Diameter Of The Mounting Holes:
215 mm
Rohs Exemption Information:
Yes
Range Compatibility:
PacDrive 3
Phase:
three phase
Stator Resistance:
0.2 Ohm
Peak Stall Torque:
330 N.m 115...480 V three phase
Shaft Diameter:
38 mm
China Rohs Regulation:
X
Net Weight:
70.6 kg
Length:
538.5 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Nominal Torque:
84.9 N.m 115 V single phase || 74.4 N.m 230 V single phase || 50.7 N.m 400 V three phase || 40.2 N.m 480 V three phase
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Speed Feedback Resolution:
128 periods
Maximum Axial Force Fa:
740 N
Pvc Free:
Yes
Holding Torque:
80 N.m
Maximum Mechanical Speed:
3800 rpm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
