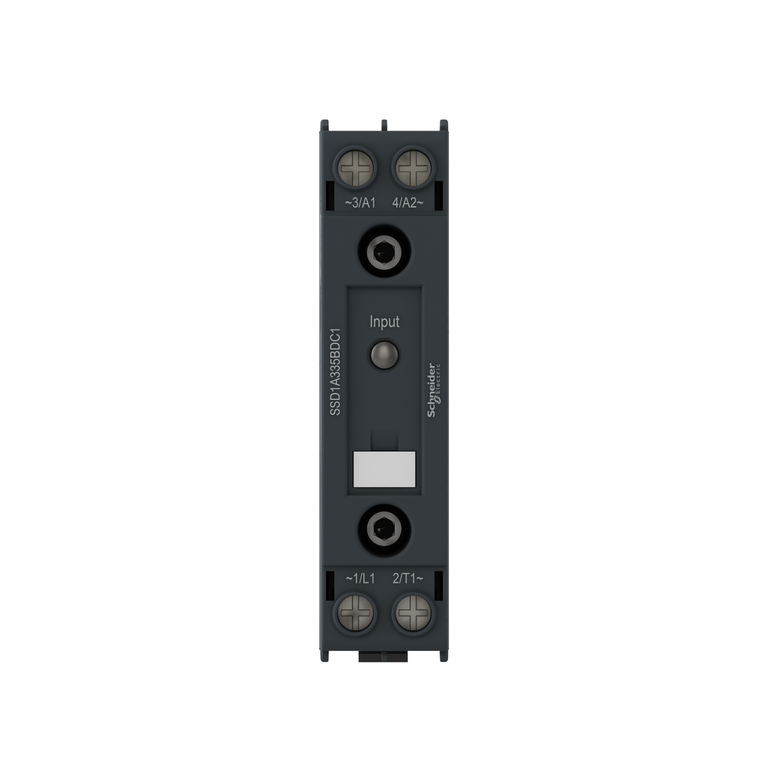

Schneider Electric SSD1A335M7C1 Solid State Relay-Din Rail, Single Phase
Schneider Electric
$96.45
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 35A power rated relay with relay type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 90Vdc/Vac to 280Vdc/Vac input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.298Kg and its dimensions are, 22.5mm wide, 116.6mm deep, 93.2mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
- Dv/Dt:
- 500 V/µs off-state at maximum rated voltage
- Phase:
- 1 phase
- Solid State Output Type:
- zero voltage switching
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Electromagnetic Compatibility:
- electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2 || electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2 || conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming
- Tightening Torque:
- 1.5...1.7 N.m for control input || 13...15 lb.in for control input || 1.5...1.7 N.m for load output || 13...15 lb.in for load output
- [Uc] Control Circuit Voltage:
- 90...280 V AC/DC
- Depth:
- 116.5 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Shock Resistance:
- 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27 || 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27
- Connections - Terminals:
- screw terminals, clamping connection capacity:1...4 mm², AWG 18...AWG 12 for input || screw terminals, clamping connection capacity:1...6 mm², AWG 18...AWG 10 for output
- Network Frequency:
- 47...440 Hz
- Flame Retardance:
- V-0 conforming to UL 94
- Net Weight:
- 0.298 kg
- Overvoltage Category:
- III
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Minimum Switching Voltage:
- 90 V AC/DC turn-on
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV for input/output circuit || 6 kV for input or output to case
- Product Or Component Type:
- solid state relay up to 40 A
- Rated Duty:
- uninterrupted
- Inrush Current:
- 1350 A at 60 Hz
- Response Time:
- 20 ms (turn-on) || 30 ms (turn-off)
- Ambient Air Temperature For Operation:
- -20-80 °C
- Line Rated Current:
- 35 A
- Ip Degree Of Protection:
- IP20
- Sustainable Offer Status:
- Green Premium product
- Height:
- 93.2 mm
- Range Of Product:
- Harmony Solid State Relays
- Ambient Air Temperature For Storage:
- -40-100 °C
- Input Current Limits:
- 6-10 mA
- Motor Power Kw:
- 1.5 kW/2 hp at 120 V AC || 3.73 kW/5 hp at 240 V AC || 7.46 kW/10 hp at 480 V AC
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Load Current:
- 0.15-35 A
- Local Signalling:
- for control voltage LED (green)
- Circularity Profile:
- ENVEOLI1508007EN
- Maximum Switching Voltage:
- 5 V AC/DC turn-off
- Standards:
- IEC 61373:class B: category 1 || IEC 60947-4-3 || IEC 62314 || IEC 60950-1 || CSA C22.2 No 14-13 || UL 508
- Absolute Maximum Voltage:
- 1200 V
- Output Switching Mode:
- zero voltage switching
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Maximum Voltage Drop:
- <1.15 V on-state
- Vibration Resistance:
- 0.75 mm (f = 10-150 Hz) conforming to IEC 60068-2-6
- Maximum Leakage Current:
- 1 mA off-state
- Maximum I²T For Fusing:
- 8320 A².s for 10 ms || 7593 A².s for 8.33 ms
- Pollution Degree:
- 2
- Coordination Type:
- type 1 || type 2
- Number Of Channels:
- 1
- Mercury Free:
- Yes
- Width:
- 22.5 mm
- Product Configuration Type:
- relay configuration
- Device Presentation:
- complete product
- Mounting Support:
- 35 mm symmetrical DIN rail conforming to IEC 60715
- Power Factor:
- 0.5 with maximum load
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- X
- Device Short Name:
- SSD1
- Environmental Disclosure:
- ENVPEP1508007EN
- Dielectric Strength:
- 4 kV AC for input/output circuit || 4 kV AC for input or output to case
- Contact Form:
- Form 5 semiconductor output DOL contactor
- Output Voltage:
- 48...600 V AC
