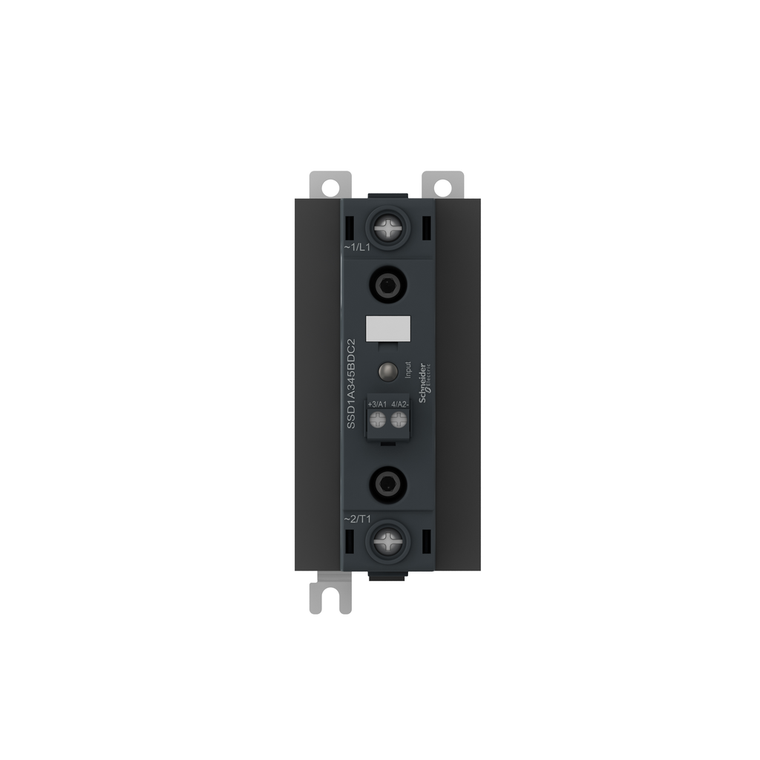

Schneider Electric SSD1A345BDC2 Solid State Relay-Din Rail, Single Phase

Schneider Electric SSD1A345BDC2 Solid State Relay-Din Rail, Single Phase

Schneider Electric
SKU:
SSD1A345BDC2
|
UPC:
3606489808013
Availability:
Contact us to confirm availability and lead times.
$92.38
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 45A power rated relay with pluggable screw input contactor type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.507Kg and its dimensions are, 45mm wide, 154.4mm deep, 111.5mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
Additional Information
Maximum Leakage Current:
1 mA off-state
Output Switching Mode:
zero voltage switching
Absolute Maximum Voltage:
1200 V
Solid State Output Type:
zero voltage switching
Electromagnetic Compatibility:
electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2 || electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2 || conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming
Power Factor:
0.5 with maximum load
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sustainable Offer Status:
Green Premium product
Maximum Voltage Drop:
<1.25 V on-state
Device Presentation:
complete product
Net Weight:
0.507 kg
Maximum I²T For Fusing:
2563 A².s for 10 ms || 2343 A².s for 8.33 ms
Flame Retardance:
V-0 conforming to UL 94
Contact Form:
Form 5 semiconductor output DOL contactor
Ambient Air Temperature For Operation:
-40-80 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Pollution Degree:
2
Number Of Channels:
1
Environmental Disclosure:
ENVPEP1508007EN
Local Signalling:
for control voltage LED (green)
Height:
111.5 mm
Dielectric Strength:
4 kV AC for input/output circuit || 4 kV AC for input or output to case
Overvoltage Category:
III
Line Rated Current:
45 A
Depth:
154.4 mm
Maximum Switching Voltage:
1 V DC turn-off
Product Configuration Type:
contactor configuration with pluggable screw input
Minimum Switching Voltage:
4 V DC turn-on
Phase:
1 phase
Vibration Resistance:
0.35 mm (f = 10-150 Hz) conforming to IEC 60068-2-6
Rated Duty:
uninterrupted
Ip Degree Of Protection:
IP20
Product Or Component Type:
solid state relay up to 50 A
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Input Current Limits:
10-15 mA
Tightening Torque:
0.5 N.m for control input || 5 lb.in for control input || 2...2.2 N.m for load output || 18...20 lb.in for load output
Standards:
IEC 61373:class B: category 1 || IEC 60947-4-3 || IEC 62314 || IEC 60950-1 || CSA C22.2 No 14-13 || UL 508
Width:
45 mm
China Rohs Regulation:
X
Insulation Resistance:
1000 MOhm at 500 V DC
Load Current:
0.1-45 A
Output Voltage:
48...600 V AC
Mercury Free:
Yes
Network Frequency:
47...440 Hz
[Uc] Control Circuit Voltage:
4...32 V DC
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Motor Power Kw:
0.75 kW/1 hp at 120 V AC || 2.24 kW/3 hp at 240 V AC || 3.73 kW/5 hp at 480 V AC
Circularity Profile:
ENVEOLI1508007EN
[Uimp] Rated Impulse Withstand Voltage:
6 kV for input/output circuit || 6 kV for input or output to case
Inrush Current:
750 A at 60 Hz
Ambient Air Temperature For Storage:
-40-100 °C
Rohs Exemption Information:
Yes
Range Of Product:
Harmony Solid State Relays
Mounting Support:
35 mm symmetrical DIN rail conforming to IEC 60715
Response Time:
0.5 cycle (turn-on) || 0.5 cycle (turn-off)
Connections - Terminals:
plug-inscrew terminals, clamping connection capacity:0.08...3.30 mm², AWG 28...AWG 12 for input || clamp terminal, clamping connection capacity:10...26.67 mm², AWG 8...AWG 3 for output
Dv/Dt:
500 V/µs off-state at maximum rated voltage
Device Short Name:
SSD1
Coordination Type:
type 1 || type 2
Shock Resistance:
50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27 || 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27
Catalog:
View
Datasheet:
View
