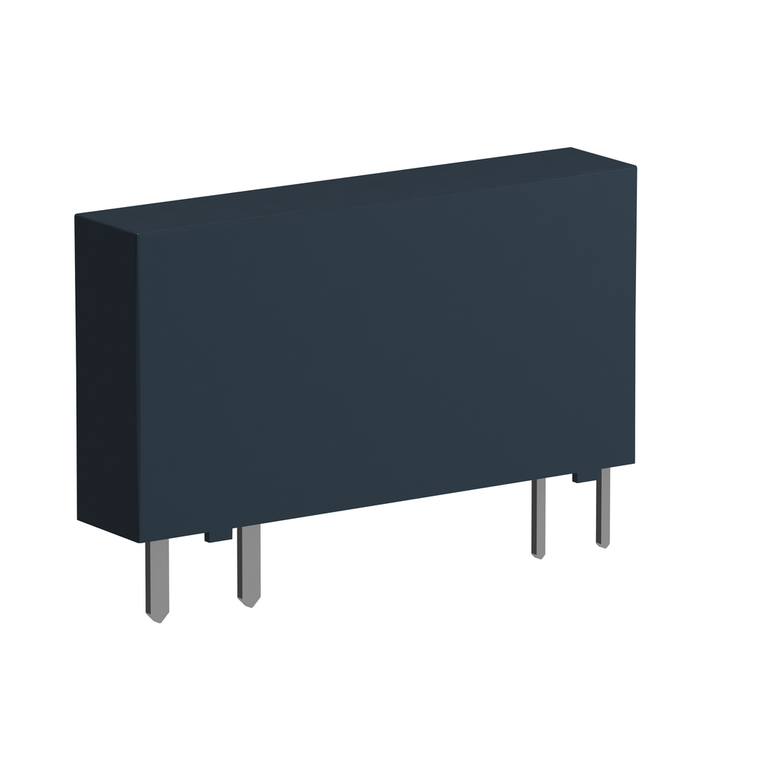

Schneider Electric SSL1A12BD Ssr,2A@24-280Vac Zero,15-30Vdc Pack of 12

Schneider Electric SSL1A12BD Ssr,2A@24-280Vac Zero,15-30Vdc Pack of 12

Schneider Electric
SKU:
SSL1A12BD
|
UPC:
3606480579721
Availability:
Contact us to confirm availability and lead times.
$175.20
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

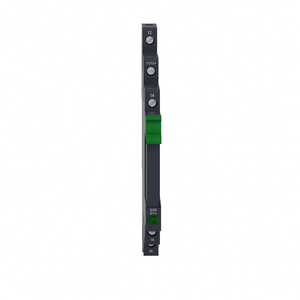

This Harmony SSL slim interfacing solid state plug-in relay is rated 2A, is controlled with a 3V to 12V DC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Additional Information
Capacitance Unbalance:
1.5 pF input/output
Dielectric Strength:
2500 V for input/output
Line Rated Current:
0.0833333333333333
Mounting Support:
socket
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Dv/Dt:
500 V/µs off-state at maximum voltage
Output Switching Mode:
DC switching
Pollution Degree:
2
Width:
5 mm
Absolute Maximum Voltage:
600 V AC
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Input Current Limits:
6-6 mA
[Uc] Control Circuit Voltage:
15...30 V DC
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Maximum Leakage Current:
4 mA off-state
Ambient Air Temperature For Storage:
-20-85 °C
Flame Retardance:
V0 conforming to UL 94
Maximum I²T For Fusing:
66 A².s for 10 ms at 50 Hz || 60 A².s for 8.3 ms at 60 Hz
Net Weight:
0.0041 kg
Circularity Profile:
ENVEOLI1405004EN
Reach Free Of Svhc:
Yes
Depth:
15 mm
Maximum Voltage Drop:
<1.1 V on-state
Range Of Product:
Harmony Solid State Relays
Phase:
1 phase
Output Voltage:
24...280 V AC
Solid State Output Type:
zero voltage switching || SCR output
Response Time:
0.5 cycle (turn-on) || 0.5 cycle (turn-off)
Environmental Disclosure:
ENVPEP1405004EN
Input Impedance:
3500 Ohm
Product Certifications:
UL || CSA
Minimum Switching Voltage:
15 V DC turn-on
Overvoltage Category:
III
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Height:
28 mm
Load Current:
0.07-2 A
Surge Current:
120 A 16.6 ms || 115 A 20 ms
Marking:
CE
Ambient Air Temperature For Operation:
-20-80 °C
Device Short Name:
SSL
China Rohs Regulation:
X
Product Or Component Type:
solid state relay up to 10 A
Rohs Exemption Information:
Yes
Maximum Switching Voltage:
10 V DC turn-off
