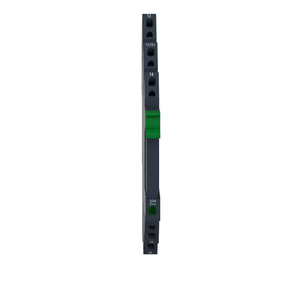

Schneider Electric SSL1A12BDPV Ssr,2A@24-280Vac Zero,15-30Vdc, Screw Pack of 30

Schneider Electric SSL1A12BDPV Ssr,2A@24-280Vac Zero,15-30Vdc, Screw Pack of 30

Schneider Electric
SKU:
SSL1A12BDPV
|
UPC:
3606489562991
Availability:
Contact us to confirm availability and lead times.
$859.80
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This slim interface solid state relay belongs to the Schneider Electric Harmony solid state relays range. This is a pre-assembled relay mounted on a socket that has a built-in reverse polarity protection circuit and a LED indicator. This is a 2A zero voltage switching slim relay with 16Vdc to 30Vdc input and 24Vac to 250 Vac output. This pre-assembled relay is a ready-to-go package saving assembly time. This 6mm relay has an IP67 water resistant encapsulation and a IP20 socket protection. The relay socket connection is by screw connector type with a lever for locking or releasing the relay. This SSL weighs 0.033Kg. It is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standard and certifications like IEC, UL, CSA, CE, ROHS, GOST, EN, and REACH. It is sold in lots of 30. Thiss is a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL brings you easier selection, time-saving in installation and robustness.
Additional Information
Overvoltage Category:
III
Depth:
79.5 mm
[Uc] Control Circuit Voltage:
16...30 V DC
Product Or Component Type:
solid state relay up to 10 A
Environmental Disclosure:
ENVPEP1405004EN
Input Impedance:
3.43 kOhm
Minimum Switching Voltage:
16 V DC turn-on
China Rohs Regulation:
X
Pollution Degree:
2
Ambient Air Temperature For Operation:
-20-70 °C
Circularity Profile:
ENVEOLI1405004EN
Maximum Switching Voltage:
5 V DC turn-off
Response Time:
0.5 cycle (turn-on) || 0.5 cycle (turn-off)
Phase:
1 phase
Ip Degree Of Protection:
IP20
Load Current:
0.07-2 A
Range Of Product:
Harmony Solid State Relays
Rohs Exemption Information:
Yes
Line Rated Current:
0.0833333333333333
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Capacitance Unbalance:
1.5 pF input/output
Maximum Leakage Current:
4 mA off-state
Output Switching Mode:
zero voltage switching
Ambient Air Temperature For Storage:
-20-85 °C
Solid State Output Type:
zero voltage switching || SCR output
Mounting Support:
screw socket
Maximum I²T For Fusing:
285 A².s for 10 ms at 50 Hz || 260 A².s for 8.3 ms at 60 Hz
Connections - Terminals:
flexible cable with cable end, 0.2...2.5 mm² AWG 24...AWG 14) || solid cable with cable end, 0.2...2.5 mm² AWG 24...AWG 14)
Absolute Maximum Voltage:
600 V AC
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Maximum Voltage Drop:
<1.1 V on-state
Mercury Free:
Yes
Device Short Name:
SSL
Width:
6.2 mm
Dv/Dt:
500 V/µs off-state at maximum voltage
Tightening Torque:
< 0.5 N.m || 4.4 lb-in
Dielectric Strength:
2500 V for input/output
Surge Current:
120 A 16.6 ms || 115 A 20 ms
Flame Retardance:
V0 conforming to UL 94
Net Weight:
0.0285 kg
Warranty:
18 Months
Height:
96.5 mm
Sustainable Offer Status:
Green Premium product
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Standards:
IEC 60950-1 || IEC 61000 || IEC 62314 || IEC 61984 || EN 61984
Marking:
cURus || CSA || CE || EAC
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Certifications:
UL || CSA || CE || UL 508 || CSA22.2 No. 14-10 || GOST
Reach Free Of Svhc:
Yes
