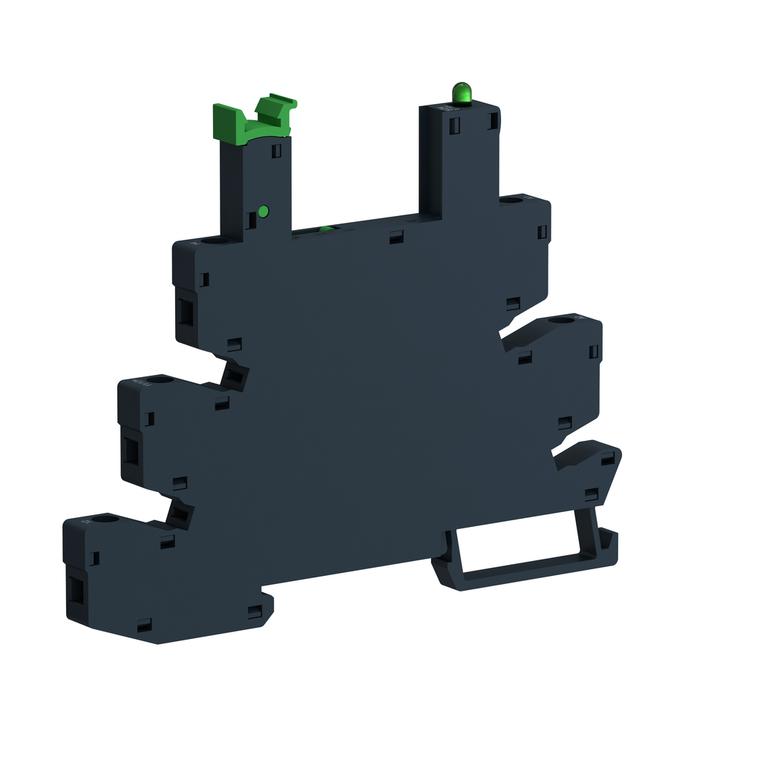

Schneider Electric SSLZVA1 Ssl1 Relay Screw Socket, 5-24Vdc Input Pack of 10

Schneider Electric SSLZVA1 Ssl1 Relay Screw Socket, 5-24Vdc Input Pack of 10

Schneider Electric
SKU:
SSLZVA1
|
UPC:
3606480580123
$67.10
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Harmony SSL socket for solid state slim interfacing relay has screw clamp terminals and a rated voltage of 5V DC. It also offers clear circuit labelling on the sides to facilitate installation and maintenance. It features a visual indicator LED for a simpler troubleshooting and commissioning. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Additional Information
Product Certifications:
CSA C22-2 No 14 || UL 508
Product Or Component Type:
socket for SSL1
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Reach Free Of Svhc:
Yes
Flame Retardance:
V0 conforming to UL 94
Fixing Mode:
clip-on 35 mm DIN rail)
Net Weight:
0.0285 kg
Range Of Product:
Harmony Solid State Relays
Tightening Torque:
< 0.4 N.m M2.5
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sale Per Indivisible Quantity:
10
[Ith] Conventional Free Air Thermal Current:
0.25
Switching Voltage:
5 V DC || 24 V DC
Rohs Exemption Information:
Yes
Depth:
78.6 mm
Standards:
IEC 61984
Local Signalling:
for input status LED (green)
Ip Degree Of Protection:
IP20
Ambient Air Temperature For Operation:
-40-70 °C
Width:
6.2 mm
[Ue] Rated Operational Voltage:
< 250 V DC
Product Compatibility:
solid state relay SSL NO 24 V DC || solid state relay SSL NO 5 V DC
Connections - Terminals:
screw clamp terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) solid without cable end || screw clamp terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Circularity Profile:
ENVEOLI1405004EN
Mercury Free:
Yes
Device Short Name:
SSLZ
Ambient Air Temperature For Storage:
-40-85 °C
Toxic Heavy Metal Free:
Yes
Height:
101 mm
China Rohs Regulation:
X
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP1405004EN
Marking:
CE
Contact Terminal Arrangement:
separate
Shape Of Pin:
flat
Catalog:
View
Datasheet:
View
