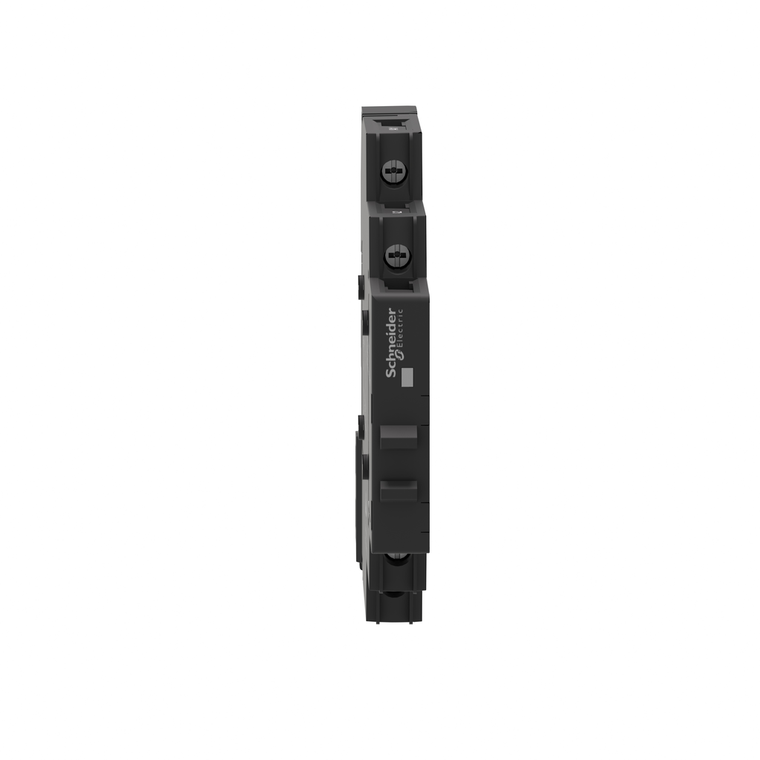

Schneider Electric SSM1A16B7 1P Ssr 6A@24-280Vac Zero,18-36Vac

(No reviews yet) Write a Review

Write a Review

Schneider Electric SSM1A16B7 1P Ssr 6A@24-280Vac Zero,18-36Vac

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SSM1A16B7

UPC:

3606480579394

MPN:

Condition:

New

Connections - Terminals:

screw terminals 1 x 0.3...1 x 1.5 mm², AWG 22...AWG 16) input || screw terminals 1 x 0.3...1 x 2.5 mm², AWG 22...AWG 14) output

Phase:

1 phase

Dv/Dt:

500 V/µs off-state at maximum voltage

Mercury Free:

Yes

Marking:

CE

Circularity Profile:

ENVEOLI1307069EN

China Rohs Regulation:

X

Response Time:

0.5 cycle (turn-on) || 30 ms (turn-off)

Product Or Component Type:

solid state relay up to 10 A

Product Certifications:

CSA || UL

Environmental Disclosure:

ENVPEP1307069EN

Net Weight:

0.05 kg

Device Short Name:

SSM

Maximum Switching Voltage:

4 V AC turn-off

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sustainable Offer Status:

Green Premium product

Input Current Limits:

3.5-8.5 mA

Overvoltage Category:

III

Pollution Degree:

2

Maximum Leakage Current:

0.1 mA off-state

Reach Free Of Svhc:

Yes

Maximum I²T For Fusing:

410 A².s for 10 ms at 50 Hz || 375 A².s for 8.33 ms at 60 Hz

Rohs Exemption Information:

Yes

Standards:

IEC 60950-1 || IEC 61000 || IEC 62314

Depth:

83.7 mm

Minimum Switching Voltage:

18 V AC turn-on

Cos Phi:

0.5-0.5 (with maximum load)

Ambient Air Temperature For Storage:

-30-100 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Insulation Resistance:

1000 MOhm at 500 V DC

Local Signalling:

for input status LED (green)

Absolute Maximum Voltage:

600 V

Range Of Product:

Harmony Solid State Relays

Maximum Voltage Drop:

<1.3 V on-state

Width:

11 mm

Tightening Torque:

0.5...0.8 N.m for input || 0.5...0.8 N.m for output

Capacitance Unbalance:

10 pF for input/output

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Dielectric Strength:

4 kV AC for input/output || 4 kV AC for input or output to case

Surge Current:

285 A 16.6 ms || 300 A 20 ms

Output Switching Mode:

zero voltage switching

Output Voltage:

24...280 V AC

Number Of Channels:

1

Ip Degree Of Protection:

IP20

Ambient Air Temperature For Operation:

-30-80 °C

Load Current:

0.15-6 A

Mounting Support:

symmetrical DIN rail

[Uc] Control Circuit Voltage:

18...36 V AC

Height:

90.3 mm

Flame Retardance:

V0 conforming to UL 94

Maximum Horse Power Rating:

0.16 hp 40 °C 240 V AC

Solid State Output Type:

zero voltage switching || SCR output

Line Rated Current:

0.25

Catalog:

View

Datasheet:

View
