Schneider Electric SSM1A312BDR 1P Ssr 12A@48-600Vac Random,4-32Vdc

Schneider Electric SSM1A312BDR 1P Ssr 12A@48-600Vac Random,4-32Vdc

Schneider Electric
SKU:
SSM1A312BDR
|
UPC:
3606480579608
$35.40
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

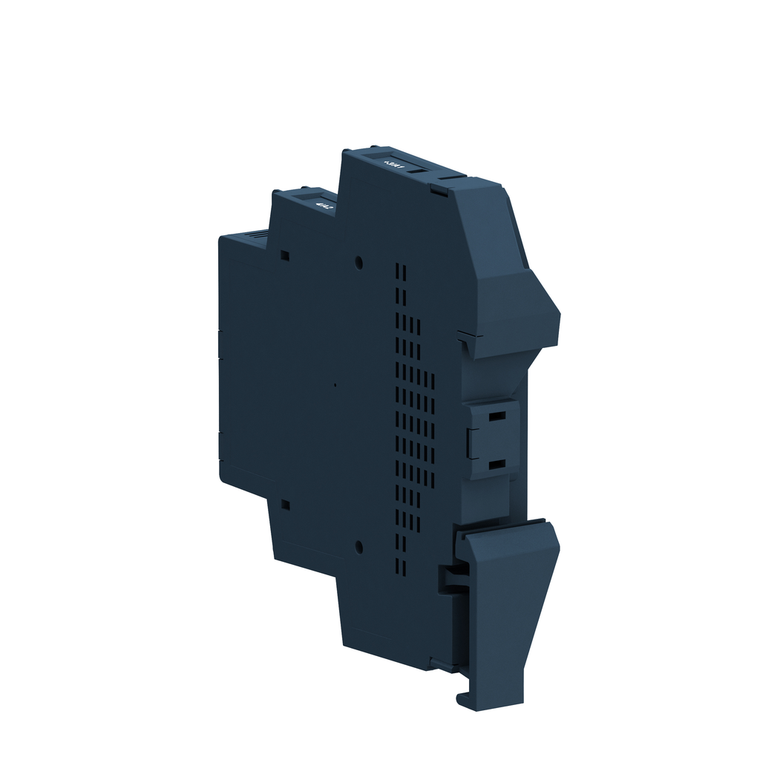

This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 600V AC with random voltage switching, ideal for inductive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0
Additional Information
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Depth:
83.7 mm
Absolute Maximum Voltage:
1200 V
Phase:
1 phase
Environmental Disclosure:
ENVPEP1307069EN
Marking:
CE
Load Current:
0.15-12 A
Maximum Switching Voltage:
1 V DC turn-off
Circularity Profile:
ENVEOLI1307069EN
Flame Retardance:
V0 conforming to UL 94
Ip Degree Of Protection:
IP20
Ambient Air Temperature For Operation:
-30-80 °C
Product Certifications:
UL || CSA
Mercury Free:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Number Of Channels:
1
Surge Current:
715 A 16.6 ms || 750 A 20 ms
Capacitance Unbalance:
10 pF for input/output
Dv/Dt:
500 V/µs off-state at maximum voltage
Output Voltage:
48...600 V AC
Net Weight:
0.09 kg
Line Rated Current:
0
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Tightening Torque:
0.5...0.8 N.m for input || 0.5...0.8 N.m for output
Width:
18 mm
Solid State Output Type:
SCR output || random voltage switching
Response Time:
0.5 cycle (turn-off) || 0.1 ms (turn-on)
Cos Phi:
0.5-0.5 (with maximum load)
Maximum Voltage Drop:
<1.3 V on-state
Device Short Name:
SSM
Input Current Limits:
9-11 mA
Insulation Resistance:
1000 MOhm at 500 V DC
[Uc] Control Circuit Voltage:
4...32 V DC
Overvoltage Category:
III
Minimum Switching Voltage:
4 V DC turn-on
Range Of Product:
Harmony Solid State Relays
Height:
90.3 mm
China Rohs Regulation:
X
Output Switching Mode:
random voltage switching
Mounting Support:
symmetrical DIN rail
Dielectric Strength:
4 kV AC for input/output || 4 kV AC for input or output to case
Sustainable Offer Status:
Green Premium product
Standards:
IEC 62314 || IEC 60950-1 || IEC 61000
Maximum I²T For Fusing:
2560 A².s for 10 ms at 50 Hz || 2330 A².s for 8.33 ms at 60 Hz
Rohs Exemption Information:
Yes
Pollution Degree:
2
Maximum Leakage Current:
0.2 mA off-state
Maximum Horse Power Rating:
0.33 hp 40 °C 240 V AC
Product Or Component Type:
solid state relay up to 20 A
Connections - Terminals:
screw terminals 1 x 0.3...1 x 1.5 mm², AWG 22...AWG 16) input || screw terminals 1 x 0.3...1 x 2.5 mm², AWG 22...AWG 14) output
Ambient Air Temperature For Storage:
-30-100 °C
Local Signalling:
for input status LED (green)
Catalog:
View
Datasheet:
View
