Schneider Electric SSM2A16BD 1P Ssr 6A@24-280Vac Zero,4-32Vdc Pack of 24

Schneider Electric SSM2A16BD 1P Ssr 6A@24-280Vac Zero,4-32Vdc Pack of 24

Schneider Electric
SKU:
SSM2A16BD
|
UPC:
3606480579769
$1,108.80
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

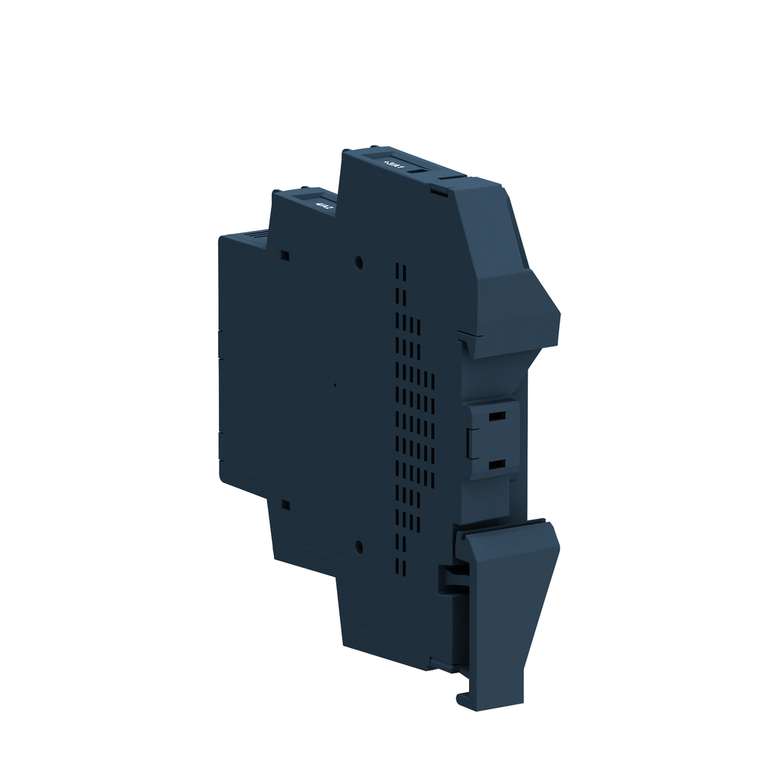

This Harmony SSM solid state modular DIN rail dual channel relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator showing the status of each of its inputs. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. It also has a visual indicator LED for a simpler troubleshooting and commissioning. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0
Additional Information
Ip Degree Of Protection:
IP20
Mounting Support:
symmetrical DIN rail
Solid State Output Type:
SCR output || zero voltage switching
Tightening Torque:
0.5...0.8 N.m for input || 0.5...0.8 N.m for output
Depth:
84.4 mm
Pollution Degree:
2
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environmental Disclosure:
ENVPEP1307069EN
Connections - Terminals:
screw terminals 1 x 0.3...1 x 1.5 mm², AWG 22...AWG 16) input || screw terminals 1 x 0.3...1 x 2.5 mm², AWG 22...AWG 14) output
Maximum I²T For Fusing:
2560 A².s for 10 ms at 50 Hz || 2330 A².s for 8.33 ms at 60 Hz
Ambient Air Temperature For Storage:
-30-100 °C
Dielectric Strength:
2.5 kV AC for input/output || 2.5 kV AC for input or output to case
Mercury Free:
Yes
Number Of Channels:
2
Width:
18 mm
[Uc] Control Circuit Voltage:
4...32 V DC
Range Of Product:
Harmony Solid State Relays
Product Certifications:
CSA || UL
Net Weight:
0.09 kg
Ambient Air Temperature For Operation:
-30-80 °C
Output Voltage:
24...280 V AC
Overvoltage Category:
III
Product Or Component Type:
solid state relay up to 10 A
Input Current Limits:
14-16.87 mA
China Rohs Regulation:
X
Response Time:
0.5 cycle (turn-on) || 0.5 cycle (turn-off)
Line Rated Current:
0.25
Standards:
IEC 61000 || IEC 60950-1 || IEC 62314
Maximum Switching Voltage:
1 V DC turn-off
Absolute Maximum Voltage:
600 V
Capacitance Unbalance:
10 pF for input/output
Maximum Leakage Current:
0.1 mA off-state
Maximum Voltage Drop:
<1.3 V on-state
Marking:
CE
Dv/Dt:
500 V/µs off-state at maximum voltage
Insulation Resistance:
1000 MOhm at 500 V DC
Circularity Profile:
ENVEOLI1307069EN
Device Short Name:
SSM
Maximum Horse Power Rating:
0.16 hp 40 °C 240 V AC
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sustainable Offer Status:
Green Premium product
Height:
90.3 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Local Signalling:
for input status LED (green)
Cos Phi:
0.5-0.5 (with maximum load)
Output Switching Mode:
zero voltage switching
Surge Current:
715 A 16.6 ms || 750 A 20 ms
Rohs Exemption Information:
Yes
Flame Retardance:
V0 conforming to UL 94
Phase:
1 phase
Minimum Switching Voltage:
4 V DC turn-on
Load Current:
0.15-6 A
Catalog:
View
Datasheet:
View
