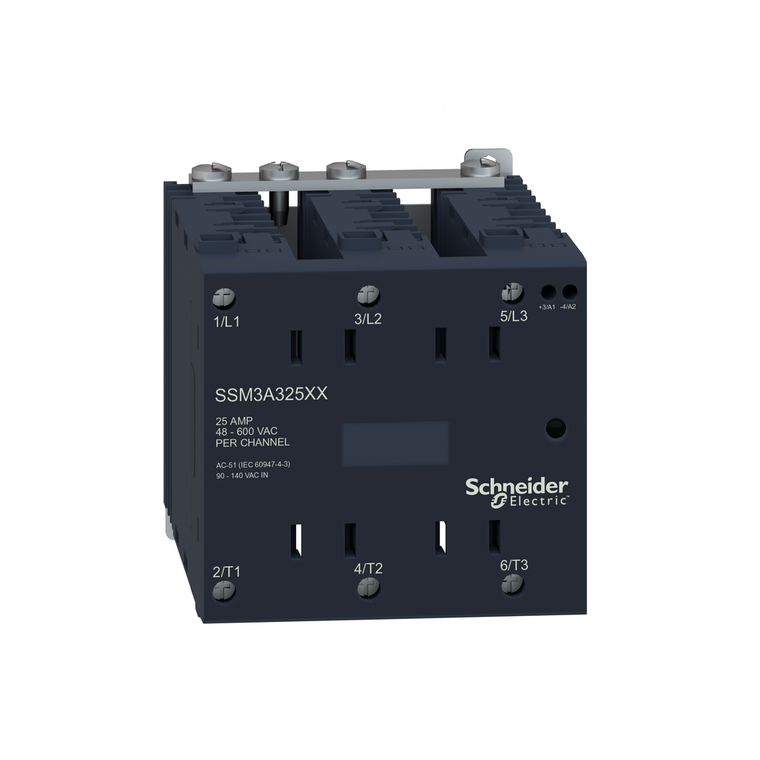

Schneider Electric SSM3A325BD 3P Ssr 25A@48-600Vac Zero,4-32Vdc

Schneider Electric SSM3A325BD 3P Ssr 25A@48-600Vac Zero,4-32Vdc

Schneider Electric
SKU:
SSM3A325BD
|
UPC:
3606485441719
$124.35
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This SSM three-phase solid state relay is part of the range of solid state modular relays Harmony. It features 25A power rating and 1NO contact. It features a control circuit voltage of 4V to 32V DC and an output voltage (load output) of 48V to 660V AC. This relay is maintenance free, fully electronic with unlimited life span. It features a control input voltage LED indicator in green. Its protection index is IP20. It weighs 740g and its dimensions are, 90mm wide, 97mm high, 123.8mm deep. 0 It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. 0 0 0 It can be mounted on 35mm DIN rail. 0 0 0
Additional Information
Pollution Degree:
2
Range Of Product:
Harmony Solid State Relays
China Rohs Regulation:
X
Cos Phi:
0.5-0.5 (with maximum load)
Phase:
3 phase
Dielectric Strength:
4 kV AC for input/output || 4 kV AC for input or output to case
Environmental Disclosure:
ENVPEP1508007EN
[Uc] Control Circuit Voltage:
4...32 V DC
Switching Voltage:
4 V DC turn-on || 1 V DC turn-off
Maximum Leakage Current:
0.25 mA off-state
Surge Current:
286 A 20 ms 50 Hz || 300 A 16.6 ms 60 Hz
Capacitance Unbalance:
8 pF for input/output
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Number Of Channels:
3
Maximum Horse Power Rating:
1 hp 40 °C 240 V AC || 2 hp 40 °C 380 V AC || 3 hp 40 °C 480 V AC
Ambient Air Temperature For Storage:
-40-100 °C
Rohs Exemption Information:
Yes
Connections - Terminals:
screw terminals 0.2...1.3 mm², AWG 24...AWG 16) input || screw terminals 1.3...5.3 mm², AWG 16...AWG 10) output
Mercury Free:
Yes
Device Short Name:
SSM3
Maximum I²T For Fusing:
410 A².s for 10 ms at 50 Hz || 374 A².s for 8.3 ms at 60 Hz
Load Current:
0.1-25 A
Circularity Profile:
ENVEOLI1508007EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ambient Air Temperature For Operation:
-20-80 °C
Response Time:
0.5 cycle (turn-on) || 0.5 cycle (turn-off)
Ip Degree Of Protection:
IP20
Insulation Resistance:
1000 MOhm
Sustainable Offer Status:
Green Premium product
Tightening Torque:
0.6...0.7 N.m for input || 1.36...1.7 N.m for output
Marking:
EAC || CSA || UL || CE
Local Signalling:
for input status LED (green)
Input Current Limits:
22-28 mA
Maximum Voltage Drop:
<1.35 V on-state
Product Certifications:
CSA || UL || EAC
Line Rated Current:
25 A
Solid State Output Type:
zero voltage switching
Absolute Maximum Voltage:
1100 V
Overvoltage Category:
III
Net Weight:
0.74 kg
Output Voltage:
48...600 V AC
Product Or Component Type:
solid state relay up to 30 A
Mounting Support:
symmetrical DIN rail
Output Switching Mode:
zero voltage switching
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Dv/Dt:
500 V/µs off-state at maximum voltage
Standards:
CSA C22.2 No 14 || IEC 60950-1 || UL 508
