Schneider Electric SSP1A125BD 1P Ssr 25A@24-300Vac Zero,3-32Vdc
Schneider Electric
$18.74
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric SSP1A125BD 1P Ssr 25A@24-300Vac Zero,3-32Vdc
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

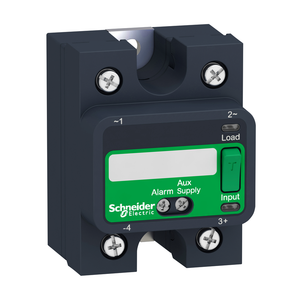

This panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 25 A, is controlled with a 3 to 32 V DC circuit, has a rated load voltage of 24 to 300 V AC output. It also has a test button for easy debugging, testing and commissioning It mounts on metallic panel surface, with an excellent thermal dissipation capability thanks to its factory-installed thermal pad, or on DIN rails with an accessory heatsink It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events
- Device Presentation:
- complete product
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Maximum Horse Power Rating:
- 0.5 hp 120 V AC || 1 hp 240 V AC
- Response Time:
- 0.5 cycle (turn-on) || 0.5 cycle (turn-off)
- Product Or Component Type:
- solid state relay up to 30 A
- Maximum I²T For Fusing:
- 259 A².s for 8.33 ms at 60 Hz || 285 A².s for 10 ms at 50 Hz
- Dv/Dt:
- 500 V/µs off-state at maximum voltage
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV output to case || 6 kV input to output
- Range Of Product:
- Harmony Solid State Relays
- Overvoltage Category:
- III
- Maximum Leakage Current:
- 1 mA off-state
- Maximum Switching Voltage:
- 1 V DC turn-off
- Dielectric Strength:
- 4 kV AC for input/output || 4 kV AC for input or output to case
- Absolute Maximum Voltage:
- 600 V
- Thermal Resitance:
- 0.8 °C/W junction to case
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Mounting Support:
- panel
- Minimum Switching Voltage:
- 3 V DC turn-on
- Load Current:
- 0.15-25 A
- Standards:
- UL 508 || CSA C22.2 No 14-13 || IEC 62314 || IEC 60950-1
- Circularity Profile:
- ENVEOLI1505006EN
- Product Certifications:
- CSA || UL || CE || EAC
- Environmental Disclosure:
- ENVPEP1505006EN
- Ambient Air Temperature For Storage:
- -40-125 °C
- Pollution Degree:
- 2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ip Degree Of Protection:
- IP20
- Connections - Terminals:
- screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26
- Solid State Output Type:
- zero voltage switching || SCR output
- Sustainable Offer Status:
- Green Premium product
- Marking:
- CSA || CE || EAC || UL
- China Rohs Regulation:
- X
- Maximum Voltage Drop:
- <1.15 V on-state
- Cos Phi:
- 0.5-0.5 (with maximum load)
- Protection Device Type:
- type 1 - 25 A miniature circuit breaker (MCB) B || type 2 - 20 A miniature circuit breaker (MCB) B
- Phase:
- 1 phase
- Input Current Limits:
- 10-10 mA at 12 V DC
- Capacitance Unbalance:
- 10 pF for input/output
- Surge Current:
- 250 A 16.6 ms
- Output Switching Mode:
- zero voltage switching
- Net Weight:
- 89.2 g
- Line Rated Current:
- 25 A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Operation:
- -40-80 °C
- Device Short Name:
- SSP1
- Safety Reliability Data:
- MTTFd = 1875.9 years || B10d = 1731395
- Mercury Free:
- Yes
- Local Signalling:
- LED, green input
- Tightening Torque:
- 1.5...1.7 N.m for input || 2...2.2 N.m for output
- Rohs Exemption Information:
- Yes
- Catalog:
- View
