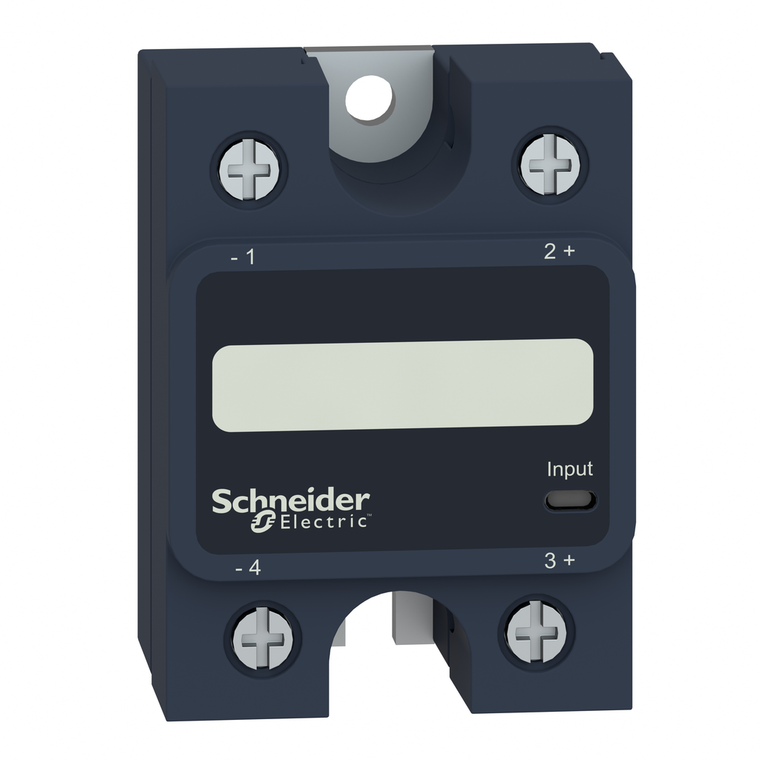

Schneider Electric SSP1A125M7T 1P Ssr 25A@24-300Vac Zero,90-280Vac,Tp

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SSP1A125M7T

UPC:

3606485442129

MPN:

Condition:

New

Output Switching Mode:

zero voltage switching

Dielectric Strength:

4 kV AC for input/output || 4 kV AC for input or output to case

Environmental Disclosure:

ENVPEP1505006EN

Ip Degree Of Protection:

IP20

Provided Equipment:

thermal pad

Net Weight:

89.2 g

Device Short Name:

SSP1

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Input Current Limits:

5-10 mA

Local Signalling:

LED, green input

Mercury Free:

Yes

Minimum Switching Voltage:

90 V AC turn-on

Surge Current:

250 A 16.6 ms

Cos Phi:

0.5-0.5 (with maximum load)

Dv/Dt:

500 V/µs off-state at maximum voltage

Absolute Maximum Voltage:

600 V

Tightening Torque:

1.5...1.7 N.m for input || 2...2.2 N.m for output

Circularity Profile:

ENVEOLI1505006EN

Protection Device Type:

type 1 - 25 A miniature circuit breaker (MCB) B || type 2 - 20 A miniature circuit breaker (MCB) B

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Thermal Impedance:

0.48 °C-in²/W at 25 psi

Capacitance Unbalance:

8 pF for input/output

Ambient Air Temperature For Operation:

-40-80 °C

Marking:

UL || CSA || EAC || CE

Insulation Resistance:

1000 MOhm at 500 V DC

Load Current:

0.15-25 A

Maximum Voltage Drop:

<1.15 V on-state

Response Time:

30 ms (turn-off) || 25 ms (turn-on)

Phase:

1 phase

Device Presentation:

complete product

Maximum Horse Power Rating:

0.5 hp 120 V AC || 1 hp 240 V AC

Sustainable Offer Status:

Green Premium product

Overvoltage Category:

III

Maximum Switching Voltage:

10 V AC turn-off

Range Of Product:

Harmony Solid State Relays

Maximum I²T For Fusing:

259 A².s for 8.33 ms at 60 Hz || 285 A².s for 10 ms at 50 Hz

Pollution Degree:

2

Rohs Exemption Information:

Yes

Solid State Output Type:

SCR output || zero voltage switching

[Uimp] Rated Impulse Withstand Voltage:

6 kV output to case || 6 kV input to output

Standards:

CSA C22.2 No 14-13 || IEC 62314 || IEC 60950-1 || UL 508

Product Certifications:

CSA || UL || CE || EAC

Mounting Support:

panel

Safety Reliability Data:

MTTFd = 1875.9 years || B10d = 1731395

Line Rated Current:

25 A

Connections - Terminals:

screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26

Maximum Leakage Current:

1 mA off-state

Product Or Component Type:

solid state relay up to 30 A

Thermal Resitance:

0.8 °C/W junction to case

China Rohs Regulation:

X

Ambient Air Temperature For Storage:

-40-125 °C

Catalog:

View

Datasheet:

View
