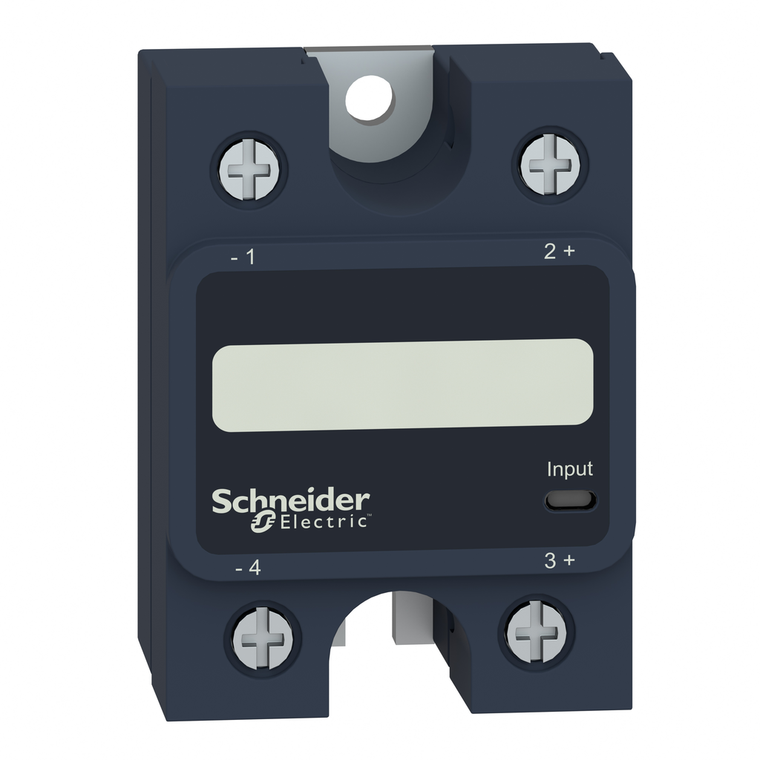

Schneider Electric SSP1A4125M7T 1P Ssr 125A@48-660Vac Zero,90-280Vac,Tp Pack of 30
Schneider Electric
$2,896.20
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric SSP1A4125M7T 1P Ssr 125A@48-660Vac Zero,90-280Vac,Tp Pack of 30
This Harmony SSP solid state panel mount single-phase relay is rated 125A, is controlled with a 90V to 280V AC input, has a rated load voltage of 48V to 660V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0
- Maximum I²T For Fusing:
- 12709 A².s for 8.33 ms at 60 Hz || 13950 A².s for 10 ms at 50 Hz
- Marking:
- UL || CE || EAC || CSA
- Device Short Name:
- SSP1
- Maximum Horse Power Rating:
- 2 hp 120 V AC || 5 hp 240 V AC || 10 hp 480 V AC
- Protection Device Type:
- type 1 - 80 A miniature circuit breaker (MCB) B || type 2 - 63 A miniature circuit breaker (MCB) B
- Thermal Resitance:
- 0.22 °C/W junction to case
- Tightening Torque:
- 1.5...1.7 N.m for input || 2...2.2 N.m for output
- Input Current Limits:
- 5-10 mA
- Dv/Dt:
- 500 V/µs off-state at maximum voltage
- Standards:
- IEC 62314 || UL 508 || CSA C22.2 No 14-13 || IEC 60950-1
- Solid State Output Type:
- SCR output || zero voltage switching
- China Rohs Regulation:
- X
- Overvoltage Category:
- III
- Safety Reliability Data:
- B10d = 1731395 || MTTFd = 1875.9 years
- Net Weight:
- 89.2 g
- Product Or Component Type:
- solid state relay up to 125 A
- Local Signalling:
- LED, green input
- Minimum Switching Voltage:
- 90 V AC turn-on
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Ambient Air Temperature For Operation:
- -40-80 °C
- Product Certifications:
- CSA || EAC || UL || CE
- Thermal Impedance:
- 0.48 °C-in²/W at 25 psi
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Storage:
- -40-125 °C
- Provided Equipment:
- thermal pad
- Maximum Voltage Drop:
- <1.15 V on-state
- Sustainable Offer Status:
- Green Premium product
- Capacitance Unbalance:
- 8 pF for input/output
- Output Switching Mode:
- zero voltage switching
- Device Presentation:
- complete product
- Rohs Exemption Information:
- Yes
- Line Rated Current:
- 125 A
- Environmental Disclosure:
- ENVPEP1505006EN
- Maximum Switching Voltage:
- 10 V AC turn-off
- Load Current:
- 0.15-125 A
- Absolute Maximum Voltage:
- 1200 V
- Maximum Leakage Current:
- 1 mA off-state
- Mercury Free:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV output to case || 6 kV input to output
- Dielectric Strength:
- 4 kV AC for input/output || 4 kV AC for input or output to case
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Response Time:
- 30 ms (turn-off) || 25 ms (turn-on)
- Pollution Degree:
- 2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP20
- Surge Current:
- 1750 A 16.6 ms
- Range Of Product:
- Harmony Solid State Relays
- Connections - Terminals:
- screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26
- Phase:
- 1 phase
- Circularity Profile:
- ENVEOLI1505006EN
- Cos Phi:
- 0.5-0.5 (with maximum load)
