Schneider Electric SSP1A475BD 1P Ssr 75A@48-660Vac Zero,4-32Vdc
Schneider Electric
$59.37
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

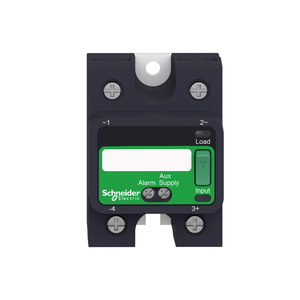

Schneider Electric SSP1A475BD 1P Ssr 75A@48-660Vac Zero,4-32Vdc
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
SSP panel mount relay is part of the Harmony Solid sate relays range. This single-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 75A, is controlled withA 4V to 32V DC circuit, has a rated load voltage of 48V to 660V AC output. It also has a test button for easy debugging, testing and commissioning. 0 It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events 0
- Standards:
- UL 508 || CSA C22.2 No 14-13 || IEC 62314 || IEC 60950-1
- Tightening Torque:
- 1.5...1.7 N.m for input || 2...2.2 N.m for output
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Minimum Switching Voltage:
- 4 V DC turn-on
- Connections - Terminals:
- screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26
- Thermal Resitance:
- 0.3 °C/W junction to case
- Solid State Output Type:
- SCR output || zero voltage switching
- Dv/Dt:
- 500 V/µs off-state at maximum voltage
- Sustainable Offer Status:
- Green Premium product
- Marking:
- CE || CSA || EAC || UL
- Maximum Switching Voltage:
- 1 V DC turn-off
- Pollution Degree:
- 2
- Capacitance Unbalance:
- 8 pF for input/output
- Dielectric Strength:
- 4 kV AC for input/output || 4 kV AC for input or output to case
- Surge Current:
- 1000 A 16.6 ms
- Protection Device Type:
- type 1 - 50 A miniature circuit breaker (MCB) B || type 2 - 40 A miniature circuit breaker (MCB) B
- Local Signalling:
- LED, green input
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Storage:
- -40-125 °C
- Circularity Profile:
- ENVEOLI1505006EN
- Response Time:
- 0.5 cycle (turn-on) || 0.5 cycle (turn-off)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Absolute Maximum Voltage:
- 1200 V
- Cos Phi:
- 0.5-0.5 (with maximum load)
- Input Current Limits:
- 7-12 mA
- Product Or Component Type:
- solid state relay up to 75 A
- Mercury Free:
- Yes
- Safety Reliability Data:
- B10d = 1731395 || MTTFd = 1875.9 years
- Ip Degree Of Protection:
- IP20
- Device Presentation:
- complete product
- Maximum Leakage Current:
- 1 mA off-state
- Overvoltage Category:
- III
- Mounting Support:
- panel
- Product Certifications:
- CSA || UL || EAC || CE
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV output to case || 6 kV input to output
- Load Current:
- 0.15-75 A
- Output Switching Mode:
- zero voltage switching
- Maximum Voltage Drop:
- <1.15 V on-state
- Maximum Horse Power Rating:
- 1.5 hp 120 V AC || 3 hp 240 V AC || 7.5 hp 480 V AC
- China Rohs Regulation:
- X
- Line Rated Current:
- 75 A
- Environmental Disclosure:
- ENVPEP1505006EN
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- -40-80 °C
- Range Of Product:
- Harmony Solid State Relays
- Device Short Name:
- SSP1
- Phase:
- 1 phase
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Net Weight:
- 89.2 g
- Maximum I²T For Fusing:
- 4150 A².s for 8.33 ms at 60 Hz || 4555 A².s for 10 ms at 50 Hz
- Catalog:
- View
- Datasheet:
- View
