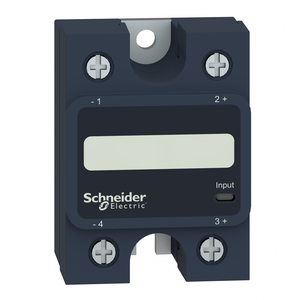

Schneider Electric SSP1A475M7T 1P Ssr 75A@48-660Vac Zero,90-280Vac,Tp

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric SSP1A475M7T 1P Ssr 75A@48-660Vac Zero,90-280Vac,Tp

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SSP1A475M7T

UPC:

3606485442167

MPN:

Condition:

New

Marking:

UL || EAC || CSA || CE

Maximum Leakage Current:

1 mA off-state

Maximum Horse Power Rating:

1.5 hp 120 V AC || 3 hp 240 V AC || 7.5 hp 480 V AC

Product Certifications:

EAC || CE || UL || CSA

Provided Equipment:

thermal pad

Standards:

UL 508 || CSA C22.2 No 14-13 || IEC 60950-1 || IEC 62314

Circularity Profile:

ENVEOLI1505006EN

Dv/Dt:

500 V/µs off-state at maximum voltage

Maximum Voltage Drop:

<1.15 V on-state

Load Current:

0.15-75 A

Dielectric Strength:

4 kV AC for input/output || 4 kV AC for input or output to case

Solid State Output Type:

SCR output || zero voltage switching

Absolute Maximum Voltage:

1200 V

Tightening Torque:

1.5...1.7 N.m for input || 2...2.2 N.m for output

Maximum I²T For Fusing:

4150 A².s for 8.33 ms at 60 Hz || 4555 A².s for 10 ms at 50 Hz

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Thermal Resitance:

0.3 °C/W junction to case

Maximum Switching Voltage:

10 V AC turn-off

Pollution Degree:

2

Net Weight:

89.2 g

Response Time:

30 ms (turn-off) || 25 ms (turn-on)

Thermal Impedance:

0.48 °C-in²/W at 25 psi

Environmental Disclosure:

ENVPEP1505006EN

Input Current Limits:

5-10 mA

Protection Device Type:

type 1 - 50 A miniature circuit breaker (MCB) B || type 2 - 40 A miniature circuit breaker (MCB) B

Capacitance Unbalance:

8 pF for input/output

[Uimp] Rated Impulse Withstand Voltage:

6 kV output to case || 6 kV input to output

Safety Reliability Data:

MTTFd = 1875.9 years || B10d = 1731395

China Rohs Regulation:

X

Device Short Name:

SSP1

Surge Current:

1000 A 16.6 ms

Minimum Switching Voltage:

90 V AC turn-on

Cos Phi:

0.5-0.5 (with maximum load)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Insulation Resistance:

1000 MOhm at 500 V DC

Output Switching Mode:

zero voltage switching

Device Presentation:

complete product

Product Or Component Type:

solid state relay up to 75 A

Sustainable Offer Status:

Green Premium product

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Line Rated Current:

75 A

Overvoltage Category:

III

Mercury Free:

Yes

Rohs Exemption Information:

Yes

Range Of Product:

Harmony Solid State Relays

Local Signalling:

LED, green input

Ip Degree Of Protection:

IP20

Ambient Air Temperature For Storage:

-40-125 °C

Ambient Air Temperature For Operation:

-40-80 °C

Connections - Terminals:

screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26

Phase:

1 phase
