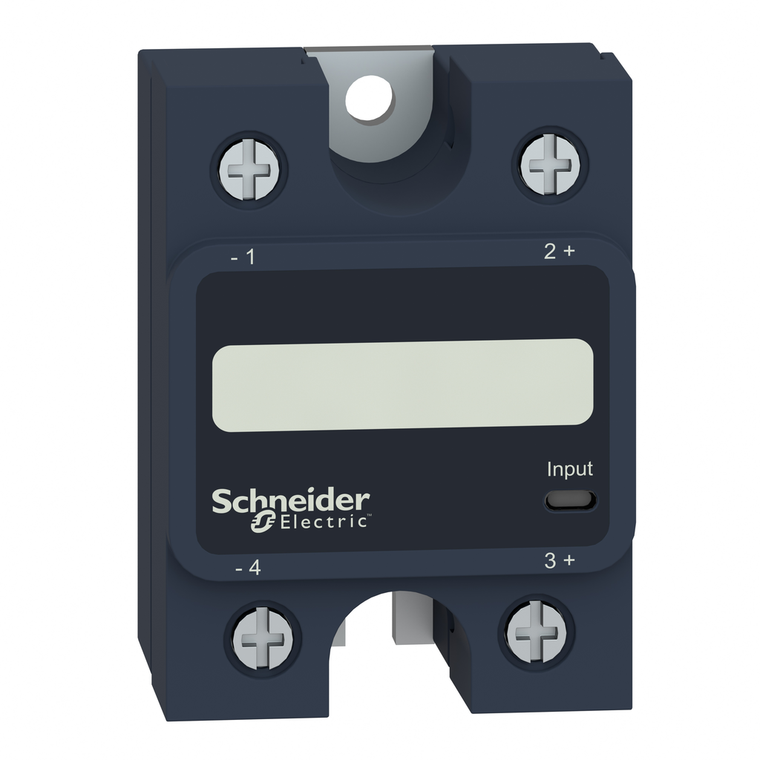

Schneider Electric SSP1A490M7T 1P Ssr 90A@48-660Vac Zero,90-280Vac,Tp

(No reviews yet) Write a Review

Write a Review

Schneider Electric SSP1A490M7T 1P Ssr 90A@48-660Vac Zero,90-280Vac,Tp

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SSP1A490M7T

UPC:

3606485442174

MPN:

Condition:

New

Circularity Profile:

ENVEOLI1505006EN

Dv/Dt:

500 V/µs off-state at maximum voltage

Device Presentation:

complete product

Sustainable Offer Status:

Green Premium product

Overvoltage Category:

III

Capacitance Unbalance:

8 pF for input/output

[Uimp] Rated Impulse Withstand Voltage:

6 kV output to case || 6 kV input to output

Environmental Disclosure:

ENVPEP1505006EN

Provided Equipment:

thermal pad

Maximum I²T For Fusing:

5976 A².s for 8.33 ms at 60 Hz || 6560 A².s for 10 ms at 50 Hz

Cos Phi:

0.5-0.5 (with maximum load)

Insulation Resistance:

1000 MOhm at 500 V DC

Solid State Output Type:

zero voltage switching || SCR output

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Thermal Impedance:

0.48 °C-in²/W at 25 psi

Device Short Name:

SSP1

Marking:

UL || CSA || EAC || CE

Absolute Maximum Voltage:

1200 V

Maximum Voltage Drop:

<1.15 V on-state

Protection Device Type:

type 1 - 63 A miniature circuit breaker (MCB) B || type 2 - 50 A miniature circuit breaker (MCB) B

Product Or Component Type:

solid state relay up to 125 A

Pollution Degree:

2

Maximum Switching Voltage:

10 V AC turn-off

Phase:

1 phase

Net Weight:

89.2 g

Load Current:

0.15-90 A

Safety Reliability Data:

B10d = 1731395 || MTTFd = 1875.9 years

Thermal Resitance:

0.27 °C/W junction to case

Ambient Air Temperature For Storage:

-40-125 °C

Local Signalling:

LED, green input

Mercury Free:

Yes

Product Certifications:

EAC || CSA || UL || CE

Dielectric Strength:

4 kV AC for input/output || 4 kV AC for input or output to case

Ip Degree Of Protection:

IP20

Input Current Limits:

5-10 mA

Minimum Switching Voltage:

90 V AC turn-on

Range Of Product:

Harmony Solid State Relays

Surge Current:

1200 A 16.6 ms

Standards:

IEC 62314 || UL 508 || CSA C22.2 No 14-13 || IEC 60950-1

Maximum Leakage Current:

1 mA off-state

China Rohs Regulation:

X

Maximum Horse Power Rating:

1.5 hp 120 V AC || 3 hp 240 V AC || 7.5 hp 480 V AC

Tightening Torque:

1.5...1.7 N.m for input || 2...2.2 N.m for output

Rohs Exemption Information:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Line Rated Current:

90 A

Ambient Air Temperature For Operation:

-40-80 °C

Output Switching Mode:

zero voltage switching

Response Time:

30 ms (turn-off) || 25 ms (turn-on)

Connections - Terminals:

screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26 mm
