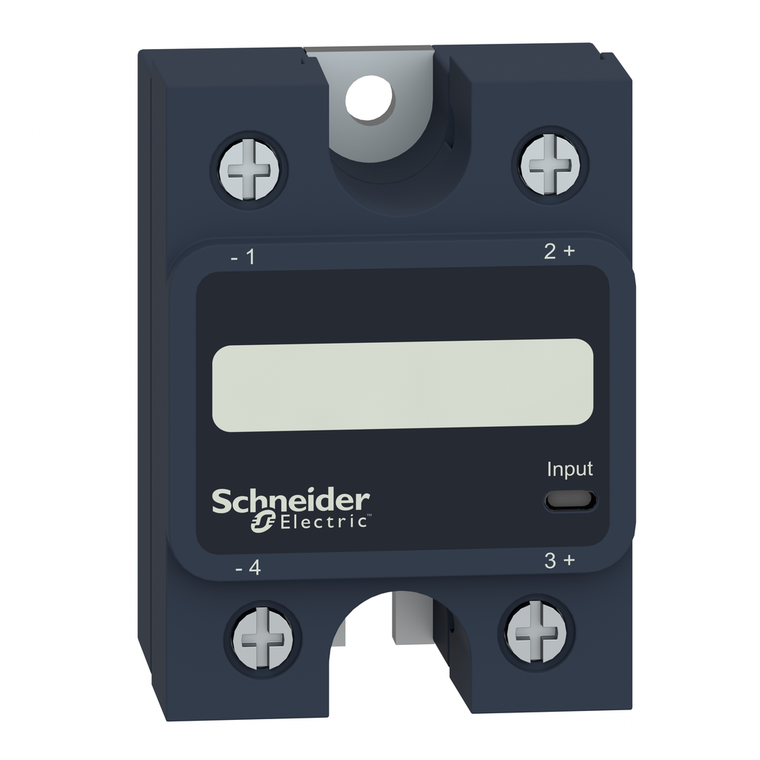

Schneider Electric SSP1D425BDT 1P Ssr 25A@1-150Vdc Dc,3.5-32Vdc,Tp

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SSP1D425BDT

UPC:

3606485442013

MPN:

Condition:

New

Safety Reliability Data:

B10d = 1731395 || MTTFd = 1875.9 years

Overvoltage Category:

III

Product Or Component Type:

solid state relay up to 30 A

Solid State Output Type:

Mosfet output || DC switching

Net Weight:

89.2 g

Device Short Name:

SSP1

Maximum Voltage Drop:

<2.1 V on-state

China Rohs Regulation:

X

Load Current:

0.001-25 A

Circularity Profile:

ENVEOLI1505006EN

Standards:

CSA C22.2 No 14-13 || IEC 62314 || IEC 60950-1 || UL 508

Output Switching Mode:

DC switching

Minimum Switching Voltage:

3.5 V DC turn-on

Pollution Degree:

2

Thermal Resitance:

0.22 °C/W junction to case

Mounting Support:

panel

Ip Degree Of Protection:

IP20

Reach Free Of Svhc:

Yes

Maximum Switching Voltage:

1 V DC turn-off

Tightening Torque:

1.5...1.7 N.m for input || 2...2.2 N.m for output

Thermal Impedance:

0.48 °C-in²/W at 25 psi

Sustainable Offer Status:

Green Premium product

Line Rated Current:

25 A

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV output to case

Capacitance Unbalance:

50 pF for input/output

Rohs Exemption Information:

Yes

Device Presentation:

complete product

Local Signalling:

LED, green input

Provided Equipment:

thermal pad

Mercury Free:

Yes

Ambient Air Temperature For Storage:

-40-125 °C

Ambient Air Temperature For Operation:

-40-80 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Range Of Product:

Harmony Solid State Relays

Surge Current:

106 A 10 ms

Product Certifications:

EAC || CE || UL || CSA

Toxic Heavy Metal Free:

Yes

Dielectric Strength:

2.5 kV AC for input/output || 2.5 kV AC for input or output to case

Environmental Disclosure:

ENVPEP1505006EN

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Phase:

1 phase

Connections - Terminals:

screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26

Response Time:

0.1 ms (turn-on) || 0.1 ms (turn-off)

Input Current Limits:

10-15 mA

Insulation Resistance:

1000 MOhm at 500 V DC

Maximum Leakage Current:

0.3 mA off-state

Marking:

UL || CE || EAC || CSA

Protection Device Type:

type 1 - 25 A miniature circuit breaker (MCB) B || type 2 - 13 A miniature circuit breaker (MCB) B

Catalog:

View

Datasheet:

View
