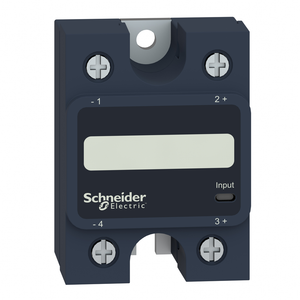

Schneider Electric SSP1D440BDT 1P Ssr 40A@1-150Vdc Dc,3.5-32Vdc,Tp
Schneider Electric
$52.31
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony SSP solid state panel mount single-phase relay is rated 40A, is controlled with a 3.5V to 32V DC input, has a rated load voltage of 1V to 150V DC with DC switching. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
- Rohs Exemption Information:
- Yes
- Maximum Switching Voltage:
- 1 V DC turn-off
- Surge Current:
- 106 A 10 ms
- Maximum Leakage Current:
- 0.3 mA off-state
- Capacitance Unbalance:
- 50 pF for input/output
- Standards:
- CSA C22.2 No 14-13 || UL 508 || IEC 62314 || IEC 60950-1
- Local Signalling:
- LED, green input
- Ambient Air Temperature For Operation:
- -40-80 °C
- Circularity Profile:
- ENVEOLI1505006EN
- Ambient Air Temperature For Storage:
- -40-125 °C
- Net Weight:
- 89.2 g
- China Rohs Regulation:
- X
- Sustainable Offer Status:
- Green Premium product
- Provided Equipment:
- thermal pad
- Environmental Disclosure:
- ENVPEP1505006EN
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Mounting Support:
- panel
- Load Current:
- 0.001-40 A
- Overvoltage Category:
- III
- Output Switching Mode:
- DC switching
- Phase:
- 1 phase
- Product Or Component Type:
- solid state relay up to 40 A
- Safety Reliability Data:
- B10d = 1731395 || MTTFd = 1875.9 years
- Marking:
- EAC || CSA || UL || CE
- Device Presentation:
- complete product
- Input Current Limits:
- 10-15 mA
- Reach Free Of Svhc:
- Yes
- Pollution Degree:
- 2
- Ip Degree Of Protection:
- IP20
- Dielectric Strength:
- 2.5 kV AC for input/output || 2.5 kV AC for input or output to case
- Connections - Terminals:
- screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26
- Maximum Voltage Drop:
- <2.1 V on-state
- Thermal Resitance:
- 0.22 °C/W junction to case
- Line Rated Current:
- 40 A
- Minimum Switching Voltage:
- 3.5 V DC turn-on
- Thermal Impedance:
- 0.48 °C-in²/W at 25 psi
- Device Short Name:
- SSP1
- Tightening Torque:
- 1.5...1.7 N.m for input || 2...2.2 N.m for output
- Solid State Output Type:
- Mosfet output || DC switching
- Toxic Heavy Metal Free:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV output to case
- Mercury Free:
- Yes
- Range Of Product:
- Harmony Solid State Relays
- Product Certifications:
- UL || CE || CSA || EAC
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Protection Device Type:
- type 2 - 20 A miniature circuit breaker (MCB) B || type 1 - 40 A miniature circuit breaker (MCB) B
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Response Time:
- 0.1 ms (turn-on) || 0.1 ms (turn-off)
