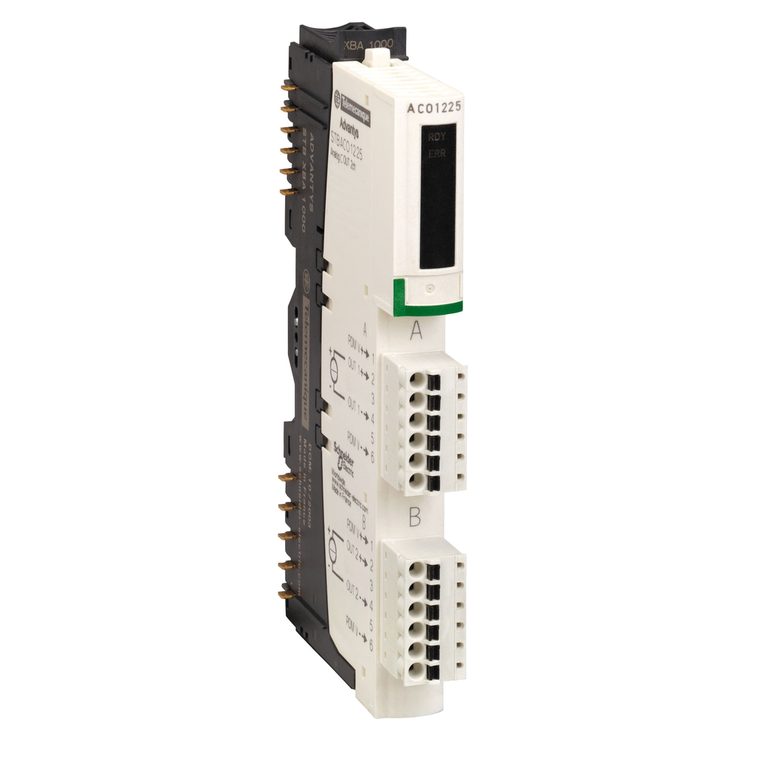

Schneider Electric STBACO1225K Analog C Out 2Chbasic4-20 Kit Conns,Base

Schneider Electric STBACO1225K Analog C Out 2Chbasic4-20 Kit Conns,Base

Schneider Electric
SKU:
STBACO1225K
|
UPC:
3595863948790
$341.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic analogue output kit has 2 analogue outputs with 10bit resolution. It is an analogue output kit with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA1000. The kit includes STBXBA1000 base, STBAVI1270 module, STBXTS2100, 6-terminal spring clamp connector and STBXTS1100, 6-terminal screw type connector. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Additional Information
Analogue Output Resolution:
10 bits
Addressing Requirement:
2 output words
Current Consumption:
40 mA 5 V DC logic bus
Ambient Air Temperature For Operation:
0-60 °C without)
Warranty:
18 months
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Differential Linearity:
monotonic
Product Or Component Type:
basic analog output kit
Kit Composition:
STBXBA1000 base || STBACO1225 module || STBXTS2100, 6-terminal spring clamp connector || STBXTS1100, 6-terminal screw type connector
Supply:
power distribution module
Product Certifications:
CSA || UL || FM Class 1 Division 2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Range Of Product:
Modicon STB distributed I/O solution
Analogue Output Current:
0.02-0.02 A
Overvoltage Category:
II
[Us] Rated Supply Voltage:
24 V DC
Width:
128.3 mm
Ip Degree Of Protection:
IP20 conforming to IEC 61131-2 class 1
Integral Linearity:
+/- 0.1 %FS
Status Led:
1 LED (Green) module status (RDY)
Temperature Drift:
+/-0.01 %/°C
Rohs Exemption Information:
Yes
Marking:
CE
Data Format:
EN 61131-2 || IEC 61131-2
Analogue Output Number:
2
Mercury Free:
Yes
Relative Humidity:
95-95 % 60-60 °C without condensation
Fallback Status:
state 0
Vibration Resistance:
3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
Conversion Time:
900 ms at +/- 0.1 % of final value
Product Compatibility:
power distribution module STBPDT3100/3105 || mounting base STBXBA1000
Update Time:
25 ms
Hot Swapping Fallback:
no for basic NIMs
Protection Type:
short-circuit protection
Operating Altitude:
<= 6561.68 ft (2000 m)
Pollution Degree:
2 IEC 60664-1
Response Time:
3 ms
Ambient Air Temperature For Storage:
-40...185 °F without
Ambient Air Temperature For Operation:
32...140 °F without
Absolute Accuracy Error:
+/- 0.5 % of full scale per °C
Shock Resistance:
30 gn 11 ms IEC 88 reference 2-27
Analogue Output Type:
current 4...20 mA
Depth:
70 mm
China Rohs Regulation:
X
Ambient Air Temperature For Storage:
-40-85 °C without
Insulation Between Channels And Actuator Bus:
30 V
Height:
13.9 mm
Insulation Between Channels And Logic Bus:
1500 V for 1 minute
Cold Swapping:
yes
