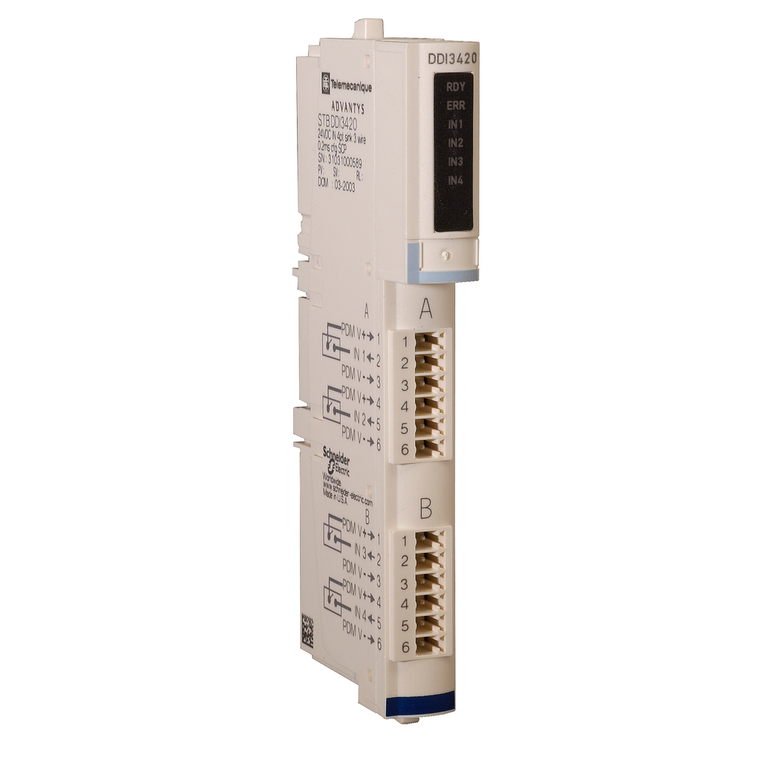

Schneider Electric STBDDI3420K 24Vcd In 4Pt Kit Conns, Base
Schneider Electric
$108.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric STBDDI3420K 24Vcd In 4Pt Kit Conns, Base
digital input kit, Modicon STB, standard, 24V DC, 4 I
- Product Compatibility:
- I/O base STBXBA1000 || power distribution module STBPDT3100/3105
- Absolute Maximum Voltage:
- 56 V 1.3 ms
- Hot Swapping Fallback:
- yes for standard NIMs
- Vibration Resistance:
- 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
- Input Filtering:
- 1 ms || 2 ms || 4 ms || 8 ms || 0.5 ms || 16 ms +/- 0.25 ms
- Status Led:
- 1 LED (Green) module status (RDY) || 1 LED per channel (Green) channel status (IN1 to IN4) || 1 LED (Red) module error (ERR)
- Relative Humidity:
- 95-95 % 60-60 °C without condensation
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Current State 1 Guaranteed:
- >= 2.5 mA
- Input Voltage Limits:
- 11...30 V at state 1 || -3...5 V at state 0
- Width:
- 125 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shock Resistance:
- 30 gn 11 ms IEC 88 reference 2-27
- Pollution Degree:
- 2 IEC 60664-1
- Discrete Input Current:
- 8 mA
- Product Or Component Type:
- standard digital input kit
- Height:
- 18.4 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Kit Composition:
- STBXTS2100, 6-terminal spring clamp connector || STBDDI3420 module || STBXTS1100, 6-terminal screw type connector || STBXBA1000 base
- Permissible Voltage:
- 30 V
- Current State 0 Guaranteed:
- <= 1.2 mA
- Overvoltage Category:
- II
- China Rohs Regulation:
- X
- Mercury Free:
- Yes
- Discrete Input Logic:
- positive or negative
- [Us] Rated Supply Voltage:
- 24 V DC
- Operating Altitude:
- <= 6561.68 ft (2000 m)
- Current Supplied By Sensor:
- 100 mA per channel
- Standards:
- IEC 61131-2 Type 1
- Marking:
- CE
- Cold Swapping:
- yes
- Discrete Input Number:
- 4
- Response Time:
- 0.925 ms off-to-on 0.5 ms || 1.35 ms on-to-off 0.5 ms
- Net Weight:
- 0.111 kg
- Discrete Input Voltage Type:
- DC
- Discrete Input Voltage:
- 24 V
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Storage:
- -40...185 °F without derating
- Range Of Product:
- Modicon STB distributed I/O solution
- Ambient Air Temperature For Operation:
- -25-70 °C without derating)
- Rohs Exemption Information:
- Yes
- Ip Degree Of Protection:
- IP20 conforming to IEC 61131-2 class 1
- Ambient Air Temperature For Operation:
- 32...140 °F without derating
- Depth:
- 65.1 mm
- Protection Type:
- power protection integrated fuse on PDM time lag 10 A || input protection resistor-limited || reverse polarity protection
- Supply:
- power distribution module
- Ambient Air Temperature For Storage:
- -40-85 °C without derating
- Current Consumption:
- 45 mA 5 V DC logic bus
- Warranty:
- 18 months
- Insulation Between Channels And Logic Bus:
- 1500 V for 1 minute
- Product Certifications:
- CSA || FM Class 1 Division 2 || UL
