Schneider Electric STBDDO3705KC 24Vdc Out 16Pt Basic Kit Clamp,Base
Schneider Electric
$329.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

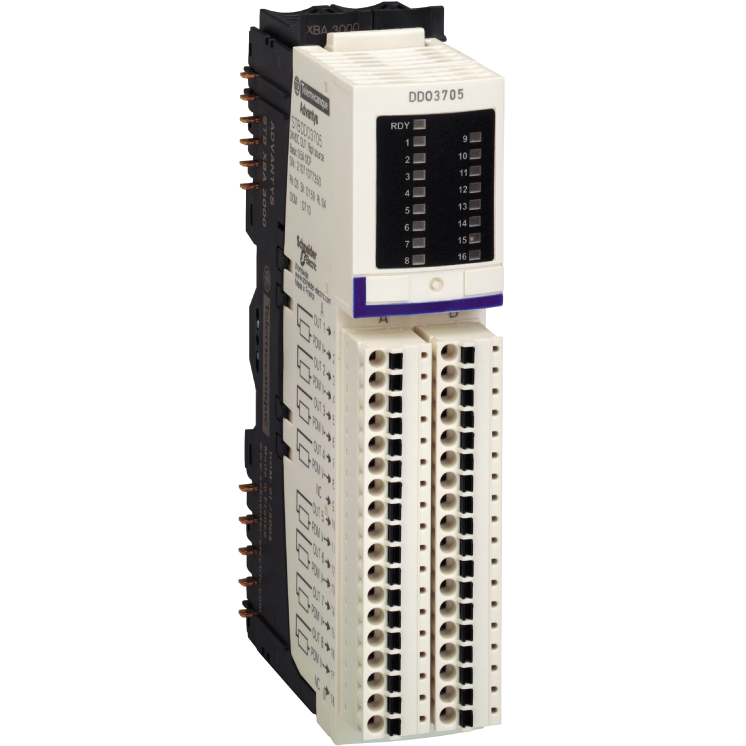

Schneider Electric STBDDO3705KC 24Vdc Out 16Pt Basic Kit Clamp,Base
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete output kit has 16 discrete outputs with solid state output. It is a discrete output kit with a rated supply voltage of 24V DC and a current consumption of 135mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with power distribution module STBPDT3100/3105 and I/O base STBXBA3000. The kit includes STBXBA3000 base, STBXTS2180, 18-terminal spring clamp connector and STBDDO3705 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
- Depth:
- 70 mm
- Product Or Component Type:
- basic digital output kit
- Operating Altitude:
- <= 6561.68 ft (2000 m)
- Maximum Load Capacitance:
- 10 µF
- Hot Swapping Fallback:
- no for basic NIMs
- Net Weight:
- 0.086 kg
- Ambient Air Temperature For Storage:
- -40...185 °F without derating
- Ip Degree Of Protection:
- IP20 conforming to IEC 61131-2 class 1
- Current Consumption:
- 135 mA 5 V DC logic bus
- Reset:
- manual reset COM fault
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Standards:
- IEC 61131-2
- Status Led:
- 1 LED (Green) module status (RDY) || 1 LED per channel (Green) channel status (OUT1 to OUT16)
- Ambient Air Temperature For Storage:
- -40-85 °C without derating
- Warranty:
- 18 months
- Discrete Output Type:
- solid state
- Ambient Air Temperature For Operation:
- 0-60 °C without derating)
- Height:
- 13.9 mm
- Protection Type:
- power protection integrated fuse on PDM time lag 5 A || reverse polarity protection || short-circuit protection || thermal overload protection
- Discrete Output Logic:
- positive
- Overvoltage Category:
- II
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Absolute Maximum Voltage:
- 35 V 1.3 ms
- Discrete Output Current:
- 500 mA
- Marking:
- CE
- Kit Composition:
- STBXBA3000 base || STBXTS2180, 18-terminal spring clamp connector || STBDDO3705 module
- Discrete Output Voltage:
- 24 V
- China Rohs Regulation:
- X
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Vibration Resistance:
- 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
- Range Of Product:
- Modicon STB distributed I/O solution
- Pollution Degree:
- 2 IEC 60664-1
- Shock Resistance:
- 30 gn 11 ms IEC 88 reference 2-27
- Ambient Air Temperature For Operation:
- 32...140 °F without derating
- Width:
- 128.3 mm
- Supply:
- power distribution module
- Discrete Output Voltage Type:
- DC
- Output Voltage:
- 19.2...30 V DC
- Discrete Output Number:
- 16
- Mercury Free:
- Yes
- Product Compatibility:
- power distribution module STBPDT3100/3105 || I/O base STBXBA3000
- [Us] Rated Supply Voltage:
- 24 V DC
- Maximum Leakage Current:
- 0.4 mA at state 0 30 V
- Insulation Between Channels And Logic Bus:
- 1500 V for 1 minute
- Response Time:
- 2 ms off-to-on || 2 ms on-to-off
- Rohs Exemption Information:
- Yes
- Maximum Load Inductance:
- 1000 mH 4 Hz
- Cold Swapping:
- yes
- Product Certifications:
- FM Class 1 Division 2 || CSA || UL
- Relative Humidity:
- 95-95 % 60-60 °C without condensation
