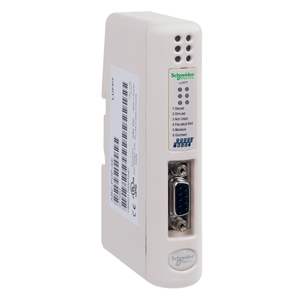

Schneider Electric TCSEGPA23F14F Profibus Remote Master
Schneider Electric
$1,300.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This product is part of the Profibus DP range, an offer of remote master modules. The Profibus Remote Master (PRM) module is connected to the Ethernet Modbus TCP/IP network via its integrated 2-port switch, as close as possible to the process and the instrumentation. It has Profibus 2 twisted shielded pairs cable and Modbus TCP category 5 shielded twisted pair (STP) transmission support medium. It is equipped with 2 Ethernet TCP/IP-RJ45 for Modbus TCP, Profibus DP SUB-D 9 for Profibus DP V1 connections. Communication services are check slave configuration (on power up) class 1 master, manage monitoring request (Global CONTROL and Get Master Diag) class 2 master, no master/master dialogue class 2 master etc. It weighs 0.62kg. This product can be used to connect Modicon Quantum, Premium, M580, and M340 Programmable Logic Controllers (PLC) to Profibus DP V1 via the I/O scanner function. The kit includes CD including the communication DTM and CD including the master DTM for configuration inside UNITY.
- Transmission Rate:
- 12 Mbit/s, 100 m Profibus without repeater || 12 Mbit/s, 400 m Profibus with 3 repeaters || 9.6 kbit/s, 1200 m Profibus without repeater || 9.6 kbit/s, 4800 m Profibus with 3 repeaters || 10...100 Mbit/s, 100 m Modbus TCP without repeater
- Number Of Slave:
- 126
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mercury Free:
- Yes
- Product Compatibility:
- M340 PLC || M580 PLC || Quantum PLC || Premium PLC
- Physical Interface:
- RS485
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Module Format:
- standard
- Number Of Inputs:
- 2
- Structure Type:
- industrial bus
- Method Of Access:
- master class 1 Profibus DP || master class 2 Profibus DP || slave Modbus TCP
- Operating Altitude:
- <= 6561.68 ft (2000 m)
- Relative Humidity:
- 10-95 % without condensation
- Communication Service:
- check slave configuration (on power up) class 1 master || acyclic DP V1 communication (R/W) class 1/2 master || manage monitoring request (Global CONTROL and Get Master Diag) class 2 master || no master/master dialogue class 2 master || Profibus FMS
- Mode Of Transmission:
- NRZ
- Transmission Support Medium:
- Profibus 2 twisted shielded pairs cable || Modbus TCP category 5 shielded twisted pair (STP)
- Rohs Exemption Information:
- Yes
- Number Of Outputs:
- 2
- China Rohs Regulation:
- X
- Integrated Connection Type:
- 2 Ethernet TCP/IP - RJ45 Modbus TCP || Profibus DP - SUB-D 9 Profibus DP V1
- Kit Composition:
- CD including the communication DTM || CD including the Master DTM for PRM configuration inside UNITY
- Net Weight:
- 0.62 kg
- Product Or Component Type:
- Profibus DP V1 remote master
- Warranty:
- 18 months
- Ambient Air Temperature For Storage:
- -45-85 °C
- Ambient Air Temperature For Operation:
- 0-60 °C
- Communication Gateway:
- Ethernet Modbus TCP to Profibus DP V1 gateway
- Range Of Product:
- Profibus DP
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Current Consumption:
- 200 mA 24 V DC external
